QS18EP6CV15Q8
Banner
Product Lifecycle: Active
Banner Engineering QS18EP6CV15Q8 is a photo-electric sensor from the QS18 Expert series, designed with a convergent mode and TEACH mode for precise sensing applications. It features an M18 threaded mount for secure installation and is equipped with a 4-pin Euro-style M12 connector for easy connection. This sensor operates within an ambient air temperature range of -20 to +70°C and is housed in a durable thermoplastic with a Polymethyl methacrylate (PMMA) lens. It offers a sensing distance of 16mm and utilizes visible red light for detection. The QS18EP6CV15Q8 supports both Light-ON and Dark-ON operating modes, includes 1 x digital output (PNP transistor), and ensures quick response with a time of 0.6ms. It is designed to work with a supply voltage of 10Vdc to 30Vdc (12Vdc / 24Vdc nom.) and is protected to IP67 NEMA 6 standards, ensuring operation in various environmental conditions.

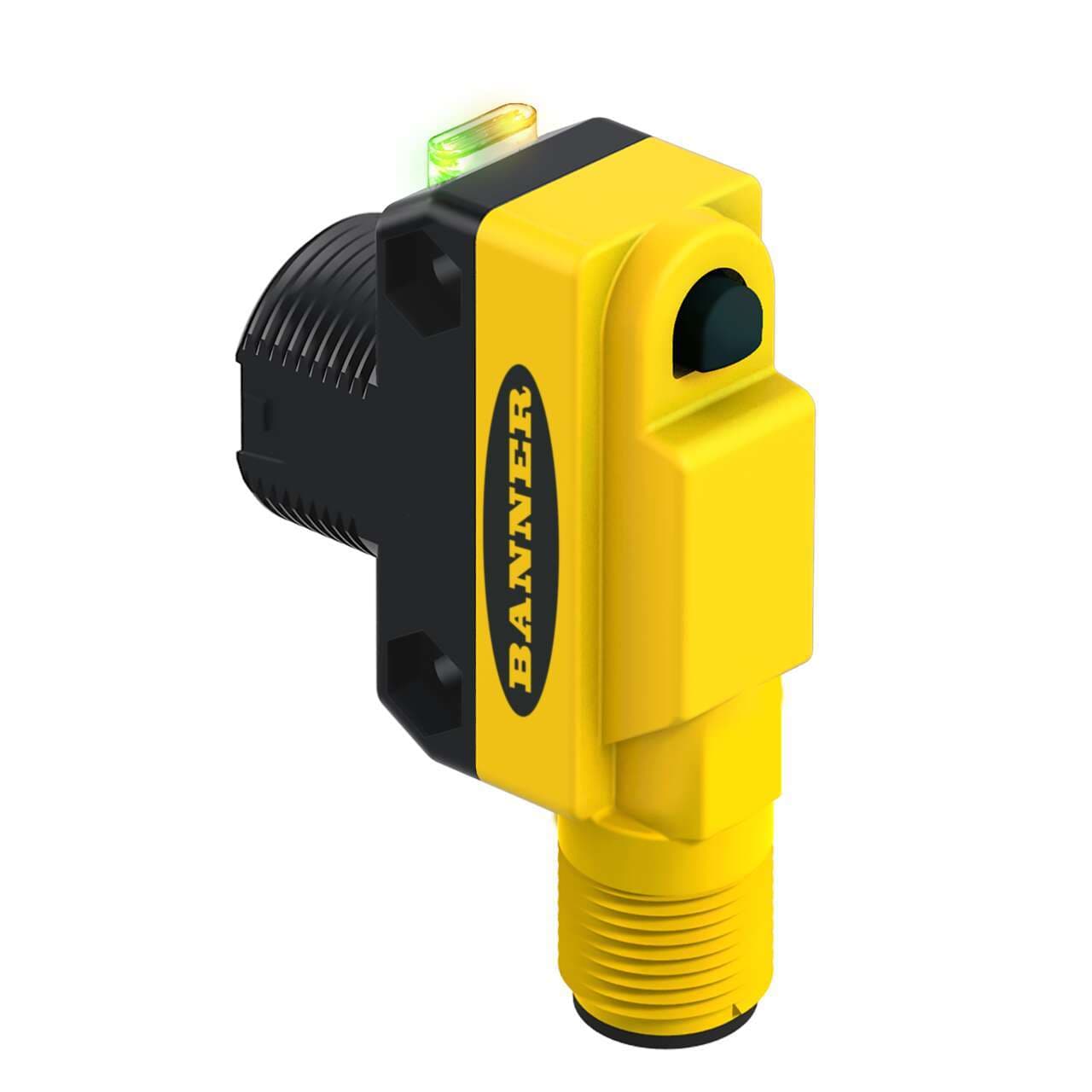

![QS18EP6CV15Q8](/_next/image?url=https%3A%2F%2Fappstoragepublicprod.s3.us-west-1.amazonaws.com%2FPartImage%2F732cf760-2230-4b95-9e71-4d9df834f7f7.jpeg&w=3840&q=75)
Banner Engineering QS18EP6CV15Q8 is a photo-electric sensor from the QS18 Expert series, designed with a convergent mode and TEACH mode for precise sensing applications. It features an M18 threaded mount for secure installation and is equipped with a 4-pin Euro-style M12 connector for easy connection. This sensor operates within an ambient air temperature range of -20 to +70°C and is housed in a durable thermoplastic with a Polymethyl methacrylate (PMMA) lens. It offers a sensing distance of 16mm and utilizes visible red light for detection. The QS18EP6CV15Q8 supports both Light-ON and Dark-ON operating modes, includes 1 x digital output (PNP transistor), and ensures quick response with a time of 0.6ms. It is designed to work with a supply voltage of 10Vdc to 30Vdc (12Vdc / 24Vdc nom.) and is protected to IP67 NEMA 6 standards, ensuring operation in various environmental conditions.
Product details
- Feature: Quick DisconnectYes
- Barrel Diameter (mm)18
- NEMA RatingNEMA 6
- Special Feature: Intrinsically SafeNo
- DeviceNetNo
- Feature: Chemical ResistantNo
- Feature: Timing (Hold/Delay)Yes
- IO LinkNo
- Feature: Hazardous AreaNo
- Feature: EncapsulatedNo
- Feature: AudibleNo
- AdjustmentsTeach Button
- IndicatorLEDs
- Lens MaterialPMMA
- IP RatingIP67
- Number of Pins4
- Max Op. Relative Humidity [%]95% @ 50°C
- Repeatability (µs)75
- Delay at Power-up (ms)100
- Sensing Beam Wavelength630
- Special Feature: Water DetectionNo
- Special Feature: Remote TeachYes
- Output response time (ms)0.6
- Max Op. Temp. (°C)70
- Min Op. Temp. (°C)-20
- OperationLight/Dark Operate
- Quick Disconnect TypeM12 (Euro)
- ConnectionIntegral QD
- Power Supply/Supply Voltage10-30 V dc
- Primary Housing MaterialABS
- Max Sensing Distance (mm)16
- Housing StyleRectangular w/M18 Mount
- OutputsPNP
- PowerDC
- Sensing Mode (General)Proximity
- Sensing BeamVisible Red LED
- Input/OutputDiscrete
- Sensing Mode (Detailed)Convergent
- Primary brandBanner Engineering
- FunctionsPhoto-electric sensor green LED (power ON) yellow LED (light sensed) TEACH mode
- Mounting modeThreaded mount
- Product series / family nameWORLD-BEAM series
- Designconvergent mode
- Thread sizeM18
- Connection typePre-equipped with 4-pin Euro-style M12 connector
- Sub-range nameQS18 Expert series
- ShapeRectangular
- Operating modeLight-ON Dark-ON
- Main functionSensor (Photo-electric)
- Sensing distance16mm
- Supply voltage (DC)10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Light ColorVisible red
- Response time0.6ms / 0.0006 s
- Ambient air temperature for operation-20...+70 °C
- Degree of protectionIP67 NEMA 6
- Compliant with standard(s)cURus CE
- Materialthermoplastic housing PMMA lns.
- Digital outputs1 x digital output (PNP transistor)
- Order code / Manufacturer SKU71993
