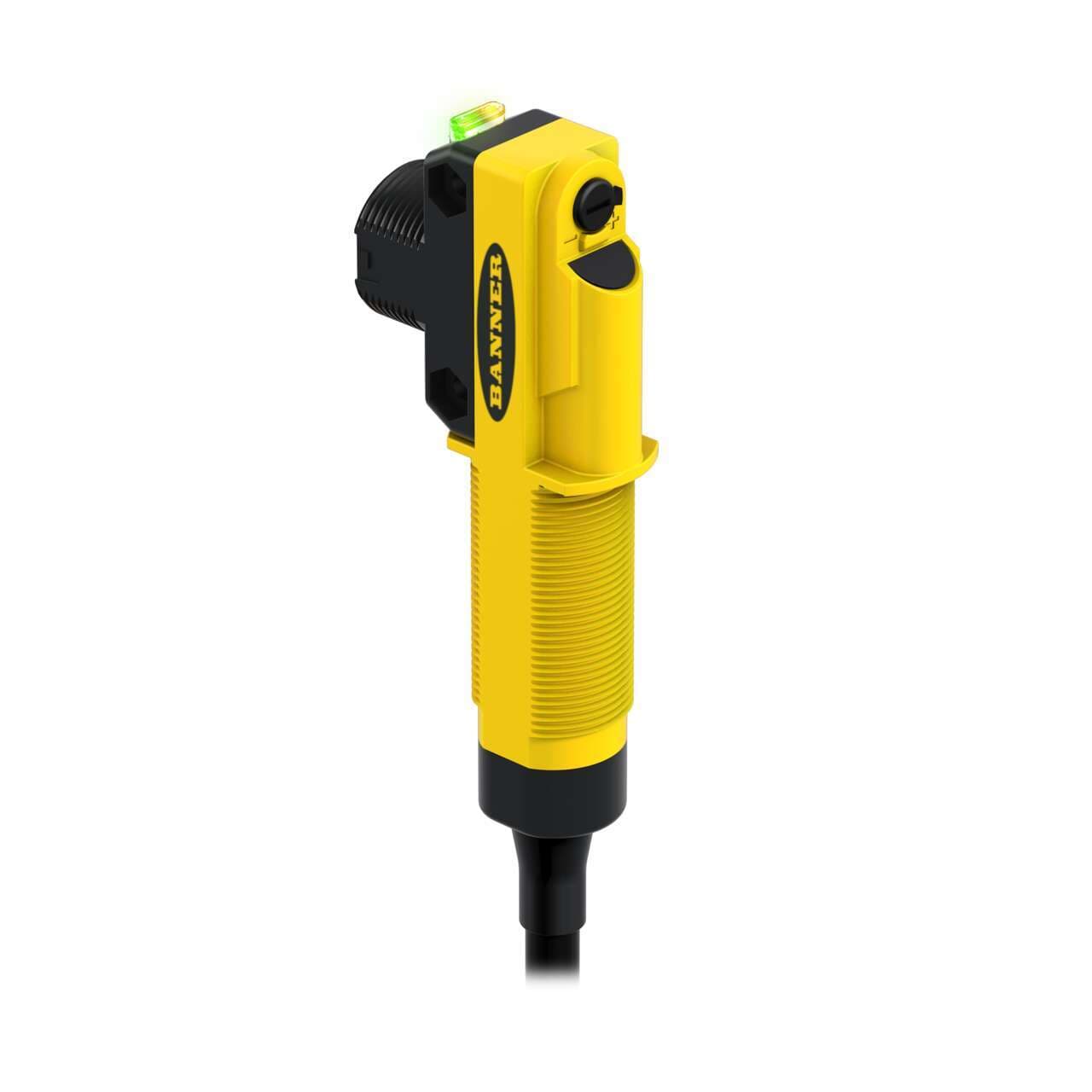

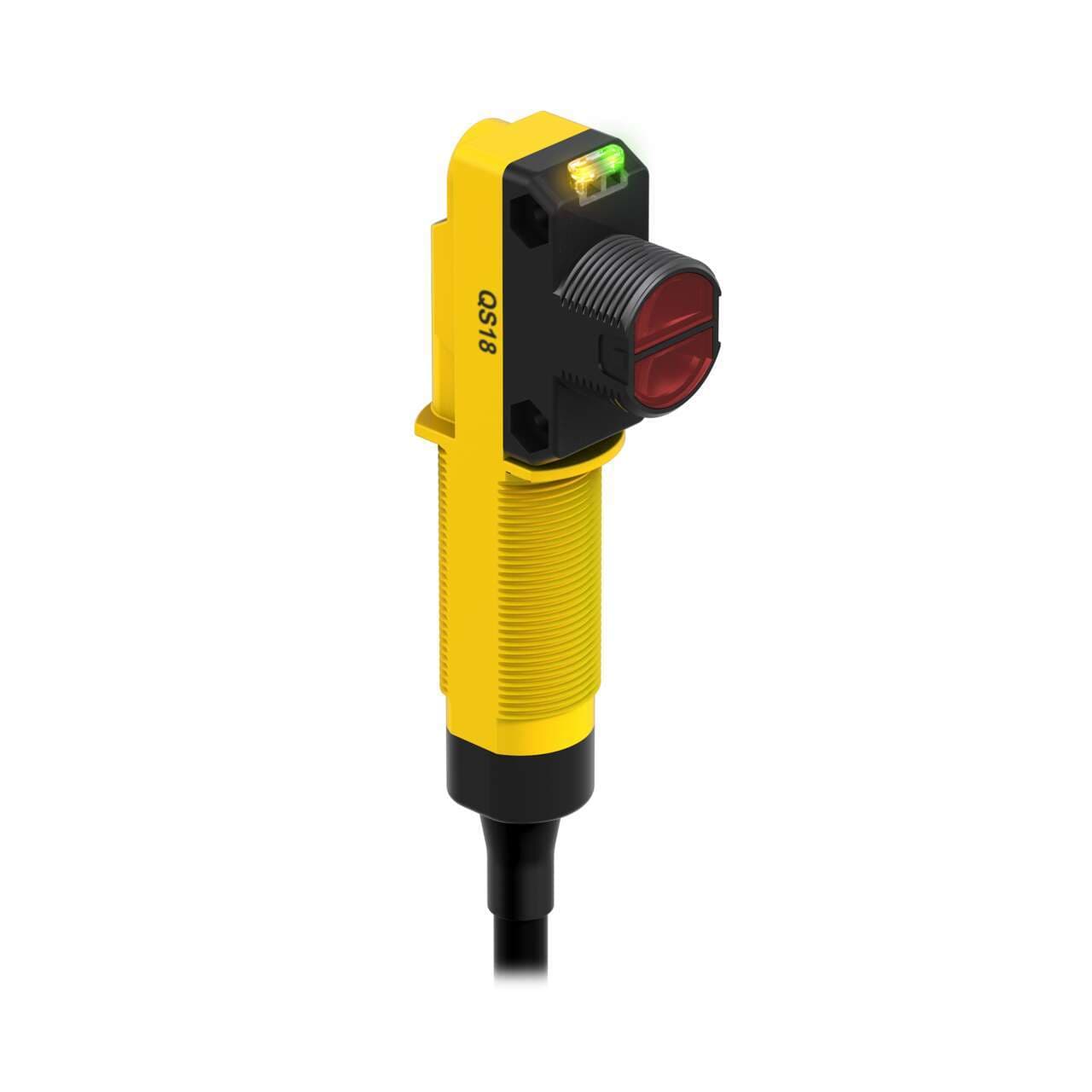

QS18ANWDXLQ2 Banner Proximity Sensors
Part#:QS18ANWDXLQ2
Alt. Part#:79804
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
WORLD-BEAM QS18 Universal Volt; Diffuse Vis R; Range: 1 m; Input: 20-270 V ac/dc; Output:LO; N-MOSFET (Sinking); 150 mm (6 in) Micro Pigtail QD
Product Details
- Weight 78.925008 g
- Country Of Origin MX
- Functions Photo-electric sensor green LED (power ON) yellow LED (light sensed) potentiometer adjustment
- Thread size M18
- Digital outputs 1 x digital output (NPN MOSFET transistor)
- Order code / Manufacturer SKU 79804
- Product series / family name WORLD-BEAM series
- Design diffuse mode
- Connection type Pre-wired with 6" / 150mm pigtail terminated with 4-pin 1/2" Micro connector
- Degree of protection IP67 NEMA 6
- Main function Sensor (Photo-electric)
- Sub-range name QS18 universal voltage series
- Sensing distance 1m
- Operating mode Light-ON
- Material thermoplastic housing PMMA lns.
- Supply voltage (DC) 20Vdc-270Vdc (24Vdc / 48Vdc / 120Vdc nom.)
- Shape Rectangular
- Mounting mode Threaded mount
- Compliant with standard(s) cULus CE
- Primary brand Banner Engineering
- Supply voltage (AC) 20Vac-270Vac (200Vac / 220Vac / 240Vac nom.)
- Light Color Infrared (IR)
- Response time 8.3ms / 0.0083 s
- Ambient air temperature for operation -25...+70 °C
- Housing Style Rectangular w/M18 Mount
- Special Feature: Remote Teach No
- Lens Material PMMA
- Feature: Chemical Resistant No
- Feature: Timing (Hold/Delay) No
- Input/Output Discrete
- Min Op. Temp. (°C) -25
- Repeatability (µs) 1500
- Feature: Encapsulated No
- Max Sensing Distance (mm) 1000
- Operation Light Operate
- Special Feature: Intrinsically Safe No
- Sensing Mode (General) Proximity
- NEMA Rating NEMA 6
- Feature: Quick Disconnect Yes
- Outputs N-MOSFET (Sinking)
- Max Op. Temp. (°C) 70 if < 140V, 55 if > 140V
- Delay at Power-up (ms) 100ms dc, 300ms ac
- Power AC/DC Universal
- Number of Pins 4
- Feature: Hazardous Area No
- Quick Disconnect Type 1/2 in. (Micro)
- Sensing Beam Infrared LED
- Power Supply/Supply Voltage 20-270 V ac/dc
- DeviceNet No
- Adjustments Potentiometer
- Primary Housing Material ABS
- Output response time (ms) 8.3
- IP Rating IP67
- Feature: Audible No
- Sensing Mode (Detailed) Diffuse
- Connection Pigtail QD
- Max Op. Relative Humidity [%] 95% @ 55°C
- IO Link No
- Barrel Diameter (mm) 18
- Indicator LEDs
- Special Feature: Water Detection No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QS18ANWDXLQ2 on Powermatic Associates is $138.00. Order now.
About the product
Banner Engineering QS18ANWDXLQ2 is a photo-electric sensor designed for versatile applications, featuring an M18 threaded mount for secure installation. It operates within an ambient air temperature range of -25 to +70°C and is equipped with a diffuse mode potentiometer for precise adjustment. The sensor is pre-wired with a 6-inch (150mm) pigtail terminated with a 4-pin 1/2" micro connector, facilitating easy connection. It supports a wide supply voltage range, accepting 20Vac-270Vac (with 200Vac, 220Vac, and 240Vac as nominal values) and 20Vdc-270Vdc (with 24Vdc, 48Vdc, and 120Vdc as nominal values), making it part of the QS18 universal voltage series. The device boasts an IP67 NEMA 6 degree of protection, ensuring durability in various environments. Its thermoplastic housing and Polymethyl methacrylate (PMMA) lens are designed for longevity, while the rectangular shape allows for straightforward integration into systems. With a sensing distance of 1m and infrared (IR) light color, it provides reliable detection capabilities. The operating mode is Light-ON, and it includes 1 x digital output (NPN MOSFET transistor) with a response time of 8.3ms (0.0083 seconds), ensuring timely signal processing.
