QM42-DPS1-1Q Banner Pressure Sensors

QM42-DPS1-1Q on Powermatic Associates
Banner

Part#:QM42-DPS1-1Q

Manufacturer:Banner

Alt. Part#:810625

Product Lifecycle:Active

Get a quick Quote!

Differential Pressure Sensor +/- 1 in W.C.; 1-Wire Serial Interface; 2.09 m (6.9 ft) 5-pin M12 Pigtail QD

About the manufacturer: Banner is one of the manufacturers that offers Pressure Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the QM42-DPS1-1Q Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    500.08518 g
  • Country Of Origin
    US

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

QM42-DPS1-1Q Description

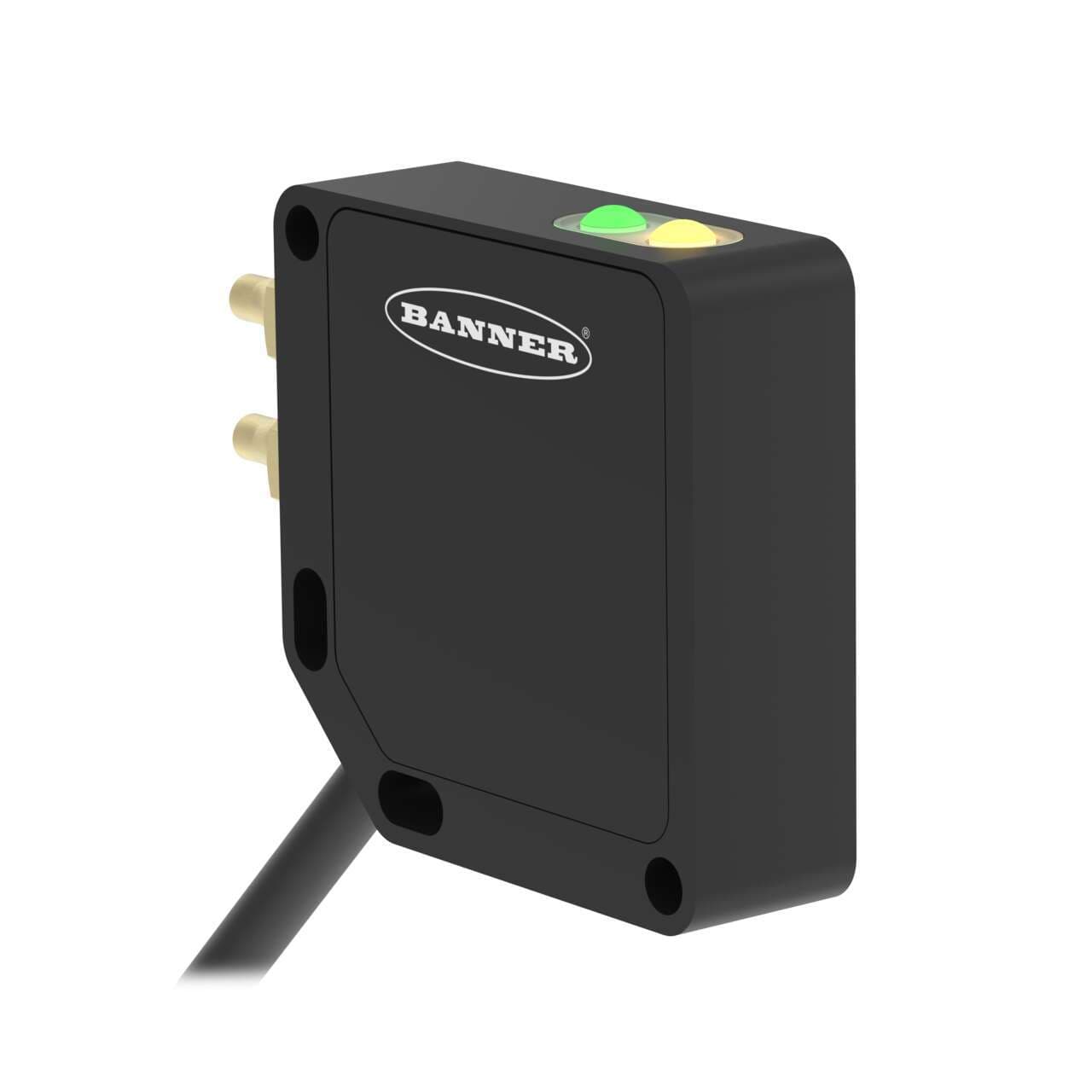

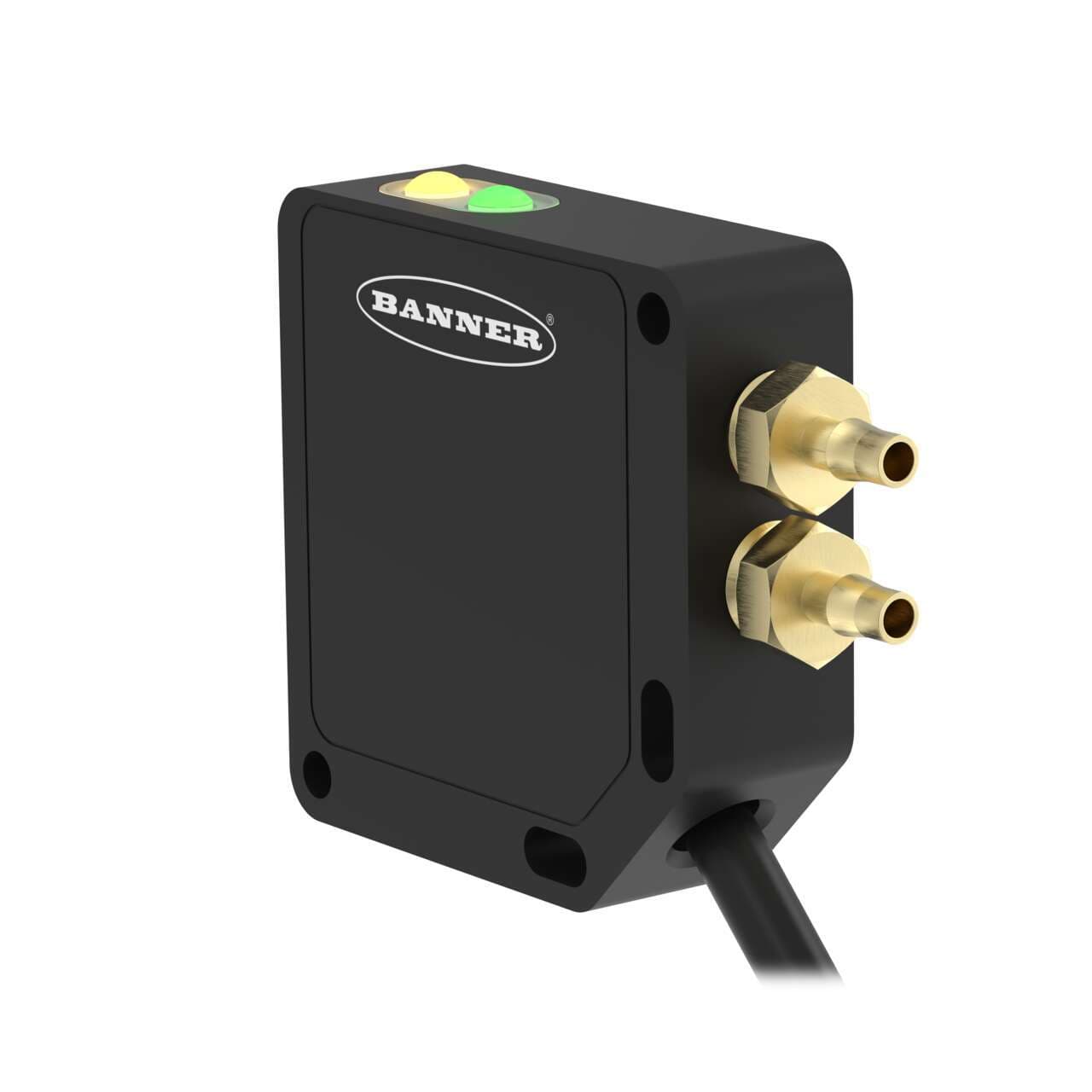

Banner Engineering QM42-DPS1-1Q is a differential pressure sensor designed for integration with SureCross Q45 nodes for predictive maintenance applications. This sensor operates within an ambient air temperature range of -20 to +85°C and is equipped with a pre-wired 2.09m pigtail terminated with a 5-pin M12 male connector for connectivity. It features dimensions of H12.8mm x W54mm x D41.9mm, ensuring a compact form factor for easy installation. The QM42-DPS1-1Q offers a pressure measurement range of -/+ 1" of water column and is powered by a supply voltage of 3.6-5.5Vdc. Constructed from black anodized Aluminium alloy, it provides a degree of protection rated at IP67 NEMA 6, making it suitable for challenging environments.

Related documents QM42-DPS1-1Q Specs

QM42-DPS1-1Q 220219.pdf

Manufacturer warranty

$295.00

Request a quote, and we will send availability within minutes.

Select Qty:

$295.00

$295.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
