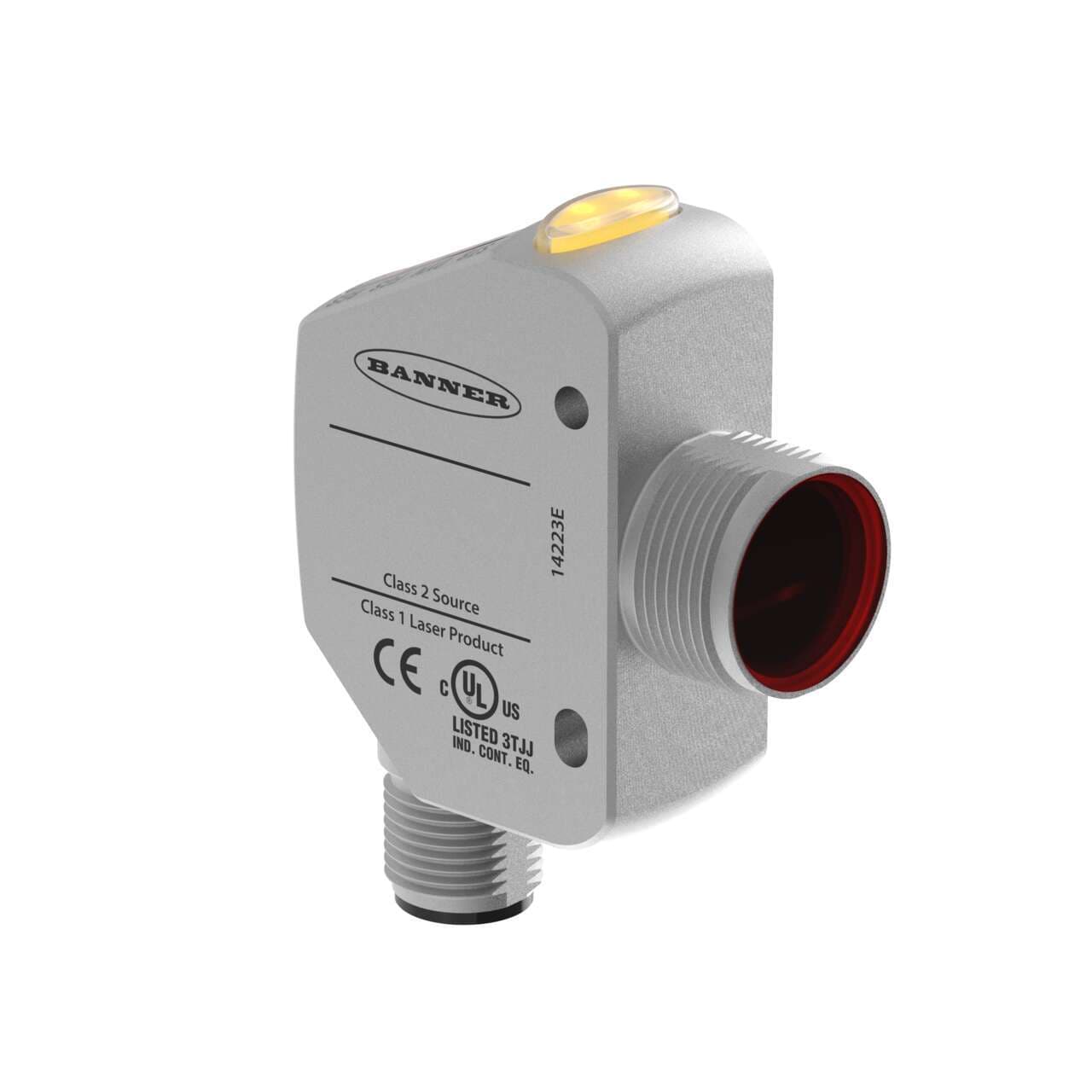

Q4XTILAF500-Q8 Banner Transformers

Product Details

• Weight
  68.0388 g
• Country Of Origin
  US
• Profibus
  No
• SSI
  No
• 1-wire Serial Interface
  No
• RS-232
  No
• RS-422
  No
• IO Link
  No
• Feature: Ecolab Certified
  Yes
• Feature: Remote Teach
  Yes
• Warm-up Time (minutes)
  10
• Minimum Response Time (ms)
  0.5
• Max Op. Relative Humidity Non-Condensing (%)
  95 at 55°C
• Mechanical Shock
  MIL-STD-202G, Meth. 213B, Cond. I (100G 6x along X, Y & Z axes, 18 total shocks) w/ sensor operating
• Wireless
  No
• RS-485
  No
• PROFINET
  No
• Feature: Chemical Resistant
  Yes
• Common Ethernet Protocol
  No
• Feature: Timing (Hold/Delay)
  No
Feature: Washdown Rated
Yes
Power/Current Consumption (exclusive of load)
< 675 mW
Supply Protection Circuitry
Protected against reverse polarity and transient overvoltages
Max Ambient Light (Lux)
5000
Alarm Output (mA)
100
Barrel Diameter (mm)
18
Laser Control
Yes
Minimum Window Size (mm)
2
Analog Linearity (mm)
+/- 0.75 mm from 25 to 50 mm, 9.0 mm at 300 mm, 25.0 mm at 500 mm
Spot Size (@ Reference Distance)
2.0 mm x 0.8 mm @ 300 mm
Min Operating Temperature (°C)
-10
Max Operating Temperature (°C)
50
Window Material
Acrylic
Number of Pins
5
Storage Temperature (°C)
-25 to 75
IP Rating
IP67; IP68; IP69
Output Protection
Protected against continuous overload and short circuit
Analog Current Output Rating
1 kΩ max @24 V dc, max load resistance = [(Vcc-4.5 V)/0.02 A] Ω
Vibration
MIL-STD-202G req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
Temperature Effect (mm/°C)
+/- 0.05 mm/°C from 25 to 125 mm, +/- 0.35 mm/°C at 300 mm, +/- 1 mm/°C at 500 mm
Adjustments
Push Button; Remote Teach
Delay at Power-up (ms)
750
Sensing Beam Wavelength (nm)
655
Minimum Sensing Distance (mm)
25
Power Supply
12-30 V dc
Max Sensing Distance (mm)
500
Analog Resolution/Discrete Repeatability
25 mm to 100 mm: < 0.3; 100 mm to 300 mm: < 1; 300 mm to 500 mm: < 1.7
Input/Output
Analog
Quick Disconnect Type
M12 (Euro)
Connection
Integral QD
Indicator
Display; LED(s)
Analog Output Configuration
4-20 mA
Laser Classification
Class 1
Device Type
Sensor
Housing Style
Rectangular w/M18 Mount
Primary Housing Material
Stainless Steel
Power
DC
PC Configurable
No
Sensing Mode (Detailed)
Background/Foreground Suppression
Sensing Mode (General)
Proximity
Sensing Beam
Visible Red Laser
Max Measurement Range
>100 mm - <=500 mm
Sub-range name
Q4X
Sensing distance
25...500mm
Shape
Rectangular
Material
Stainless steel housing Acrylic LED window
Order code / Manufacturer SKU
802751
Main function
Sensor (Photo-electric)
Supply voltage (DC)
12Vdc-30Vdc (24Vdc nom.)
Wavelength
655 nm
Analog outputs
1 x analog output (4-20mA)
Compliant with standard(s)
CE
Product series / family name
Q series
Design
background / foreground suppression system
Thread size
M18
Degree of protection
IP67 IP68 IP69K
Equivalent to
Q4XTILAF500Q8
Primary brand
Banner Engineering
Display
LED 4 digits display
Light Color
Visible class 1 red Laser
Connection type
Pre-equipped with 5-pin Euro-style M12 connector
Ambient air temperature for operation
-10...+50 °C
Chemical resistance
chemical-resistant
Functions
Class 1 Laser adjustable-field photo-electric sensor/transmitter TEACH mode
Mounting mode
Threaded mount
Protection functions
Overload Short-circuit

Related documents Q4XTILAF500-Q8 Specs
