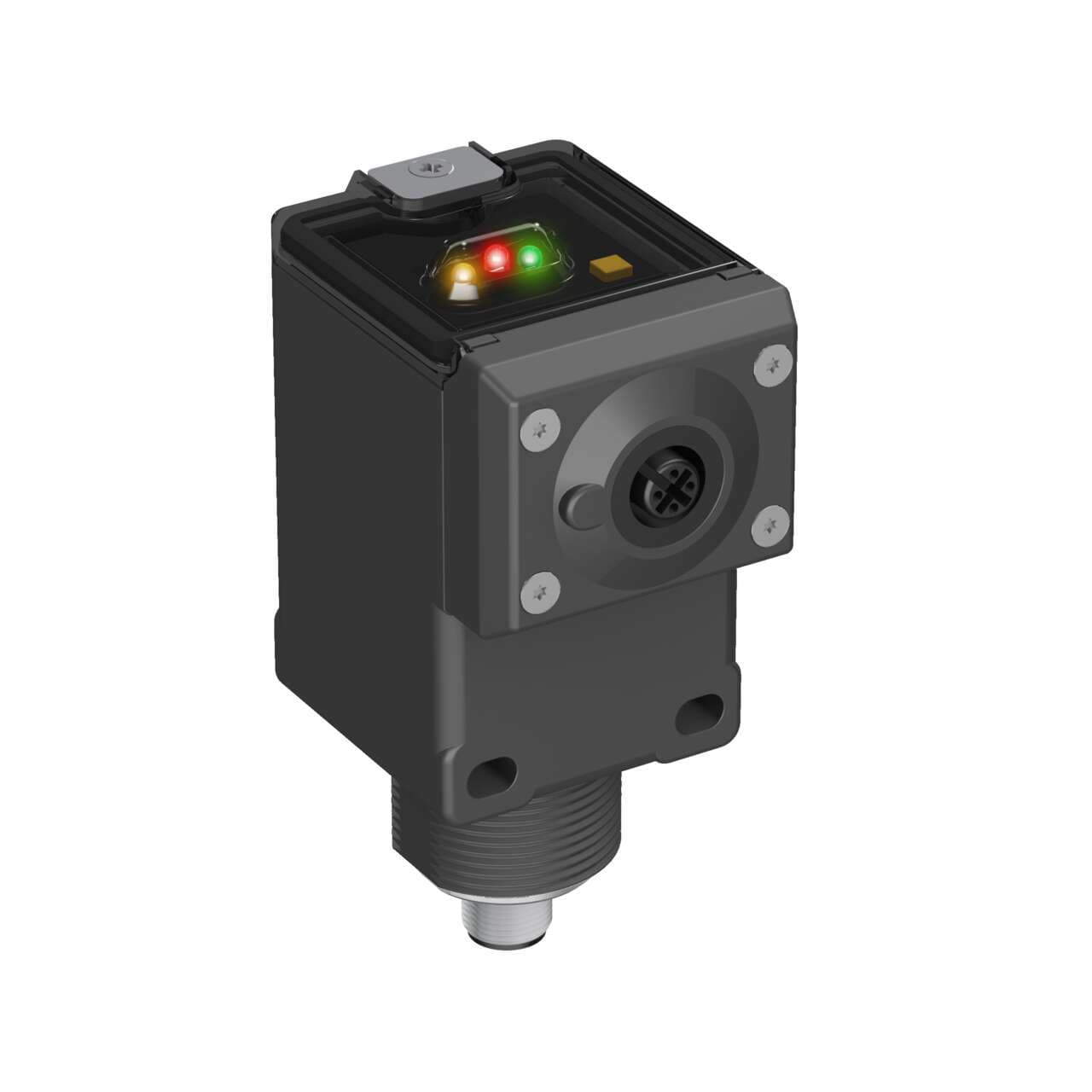

Q45UR3LIU64CQ6 Banner Ultrasonic Sensors

Product Details

• Weight
  299.37072 g
• Country Of Origin
  US
• Profibus
  No
• 1-wire Serial Interface
  No
• SSI
  No
• RS-485
  No
• Wireless
  No
• RS-422
  No
• RS-232
  No
• PROFINET
  No
• IO Link
  No
• Common Ethernet Protocol
  No
• Application: Ultrasonic
  Yes
• Feature: Timing (Hold/Delay)
  No
• Feature: Chemical Resistant
  No
• Feature: Remote Teach
  Yes
• Supply Protection Circuitry
  Protected against reverse polarity and transient overvoltages
• Power/Current Consumption (exclusive of load)
  100 mA
• Ultrasonic Frequency (kHz)
  400
• Feature: Clear Object Detection
  Yes
Minimum Response Time (ms)
10
Warm-up Time (minutes)
15
Minimum Window Size (mm)
1
Analog Linearity (mm)
1% of full scale
Min Operating Temperature (°C)
-25
Max Operating Temperature (°C)
70
Max Op. Relative Humidity Non-Condensing (%)
85
NEMA Rating
NEMA 6P
IP Rating
IP67
Output Protection
Protected against continuous overload and short circuit
Analog Voltage Output Rating
10mA Max
Temperature Effect (mm/°C)
0.03% to 0.05% of sensing distance/°C
Analog Current Output Rating
1 to 500 Ω impedance
Mechanical Shock
IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
Vibration
MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
Number of Pins
5
Adjustments
Teach Button; DIP Switches
Analog Resolution/Discrete Repeatability
+/- 0.2% of measured distance at 320 ms response speed, 0.4% of measured distance at 10 ms response speed
Quick Disconnect Type
M12 (Euro)
Minimum Sensing Distance (mm)
50
Max Sensing Distance (mm)
250
Power Supply
15-24 V dc
Analog Output Configuration
0-10 V dc or 4-20 mA
Connection
Integral QD
Indicator
LED(s)
Input/Output
Analog
Primary Housing Material
Thermoplastic Polyester
Device Type
Remote Sensor
Housing Style
Rectangular
Sensing Mode (Detailed)
Time of Flight
PC Configurable
No
Max Measurement Range
>100 mm - <=500 mm
Power
DC
Sensing Beam
Ultrasonic
Sensing Mode (General)
Proximity
Primary brand
Banner Engineering
Design
time-of-flight system
Connection type
Pre-equipped with 5-pin Euro-style M12 connector
Compliant with standard(s)
CE
Emission frequency
400kHz
Sub-range name
Q45UR series
Thread size
M30
Protection functions
Overload Short-circuit
Main function
Control unit
Sensing distance
50...250mm
Material
thermoplastic polyester housing
Order code / Manufacturer SKU
53014
Product series / family name
U-GAGE series
Functions
Remote transducer controller green LED (power ON) amber LED (output state) red LED (signal) TEACH mode
Analog outputs
1 x analog output (0-10Vdc / 4-20mA)
Ambient air temperature for operation
-25...+70 °C
Supply voltage (DC)
15Vdc-24Vdc
Shape
Rectangular
Mounting mode
Threaded mount
Degree of protection
IP67 NEMA 6P
