Q45UR3LIU64C Banner Ultrasonic Sensors

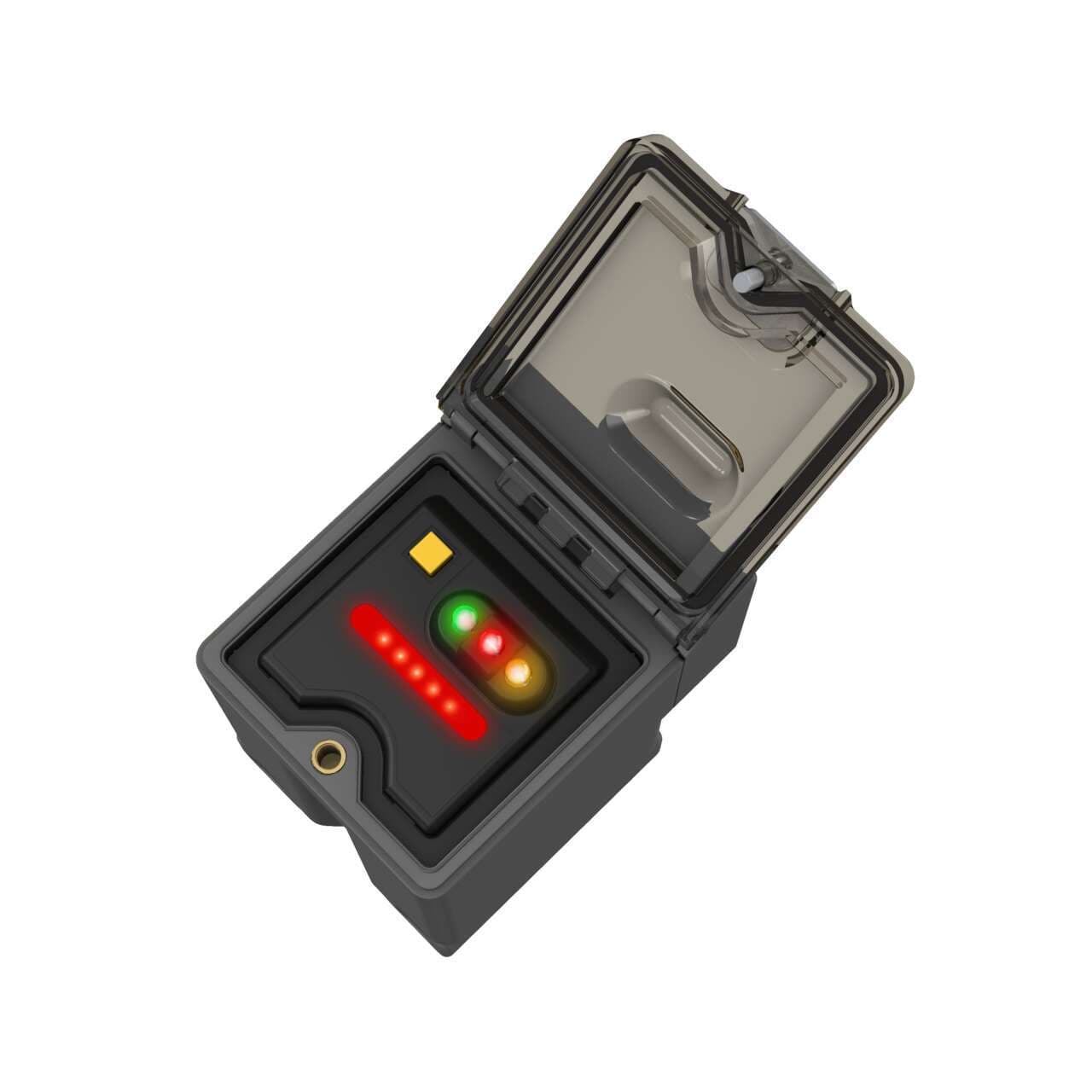

Banner Q45UR3LIU64C Q45UR Analog Series: Controller; Range: 50-250 mm; Input: 15-24 V dc; Output: Selectable 0-10 V dc or 4-20 mA Sourcing; 2 m (6.5 ft) Cable
Banner

Part#:Q45UR3LIU64C

Manufacturer:Banner

Alt. Part#:53012

Product Lifecycle:Active

Get a quick Quote!

Q45UR Analog Series: Controller; Range: 50-250 mm; Input: 15-24 V dc; Output: Selectable 0-10 V dc or 4-20 mA Sourcing; 2 m (6.5 ft) Cable

About the manufacturer: Banner is one of the manufacturers that offers Ultrasonic Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the Q45UR3LIU64C Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    371.94544 g
  • Country Of Origin
    US
  • Application: Ultrasonic
    Yes
  • 1-wire Serial Interface
    No
  • SSI
    No
  • RS-422
    No
  • Profibus
    No
  • Wireless
    No
  • RS-232
    No
  • PROFINET
    No
  • RS-485
    No
  • IO Link
    No
  • Power/Current Consumption (exclusive of load)
    100 mA
  • Feature: Chemical Resistant
    No
  • Supply Protection Circuitry
    Protected against reverse polarity and transient overvoltages
  • Feature: Timing (Hold/Delay)
    No
  • Common Ethernet Protocol
    No
  • Feature: Clear Object Detection
    Yes
  • Feature: Remote Teach
    Yes
  • Minimum Window Size (mm)
    1
  • Analog Linearity (mm)
    1% of full scale
  • Ultrasonic Frequency (kHz)
    400
  • Min Operating Temperature (°C)
    -25
  • Max Operating Temperature (°C)
    70
  • Warm-up Time (minutes)
    15
  • Minimum Response Time (ms)
    10
  • NEMA Rating
    NEMA 6P
  • Max Op. Relative Humidity Non-Condensing (%)
    85
  • IP Rating
    IP67
  • Vibration
    MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
  • Output Protection
    Protected against continuous overload and short circuit
  • Analog Voltage Output Rating
    10mA Max
  • Analog Current Output Rating
    1 to 500 Ω impedance
  • Temperature Effect (mm/°C)
    0.03% to 0.05% of sensing distance/°C
  • Mechanical Shock
    IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
  • Number of Pins
    5
  • Adjustments
    Teach Button; DIP Switches
  • Minimum Sensing Distance (mm)
    50
  • Power Supply
    15-24 V dc
  • Max Sensing Distance (mm)
    250
  • Analog Resolution/Discrete Repeatability
    +/- 0.2% of measured distance at 320 ms response speed, 0.4% of measured distance at 10 ms response speed
  • Quick Disconnect Type
    No QD
  • Analog Output Configuration
    0-10 V dc or 4-20 mA
  • Connection
    Flying Leads
  • Input/Output
    Analog
  • Indicator
    LED(s)
  • Primary Housing Material
    Thermoplastic Polyester
  • Sensing Mode (Detailed)
    Time of Flight
  • Device Type
    Controller
  • Sensing Mode (General)
    Proximity
  • PC Configurable
    No
  • Power
    DC
  • Housing Style
    Rectangular
  • Cable Length (m)
    2
  • Sensing Beam
    Ultrasonic
  • Max Measurement Range
    >100 mm - <=500 mm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Q45UR3LIU64C Description

Banner Engineering Q45UR3LIU64C is a control unit designed for remote transducer control applications. It features an M30 threaded mount for secure installation and operates within an ambient air temperature range of -25 to +70°C. This unit is built around a time-of-flight system with TEACH mode for enhanced functionality. It comes pre-wired with a 6.5ft / 2m cable that terminates with bare end flying leads, facilitating straightforward integration into various systems. The Q45UR series part boasts an IP67 NEMA 6P degree of protection, ensuring durability in harsh environments. It requires a supply voltage of 15Vdc to 24Vdc and is housed in a rectangular, thermoplastic polyester casing for robustness. Operating at a frequency of 400kHz, it offers a sensing distance of 50 to 250mm. For safety, it includes protection functions against overload and short-circuit conditions. Additionally, it provides one analog output (0-10Vdc / 4-20mA) for versatile connectivity options.

Related documents Q45UR3LIU64C Specs

Q45UR3LIU64C 59323.pdf
