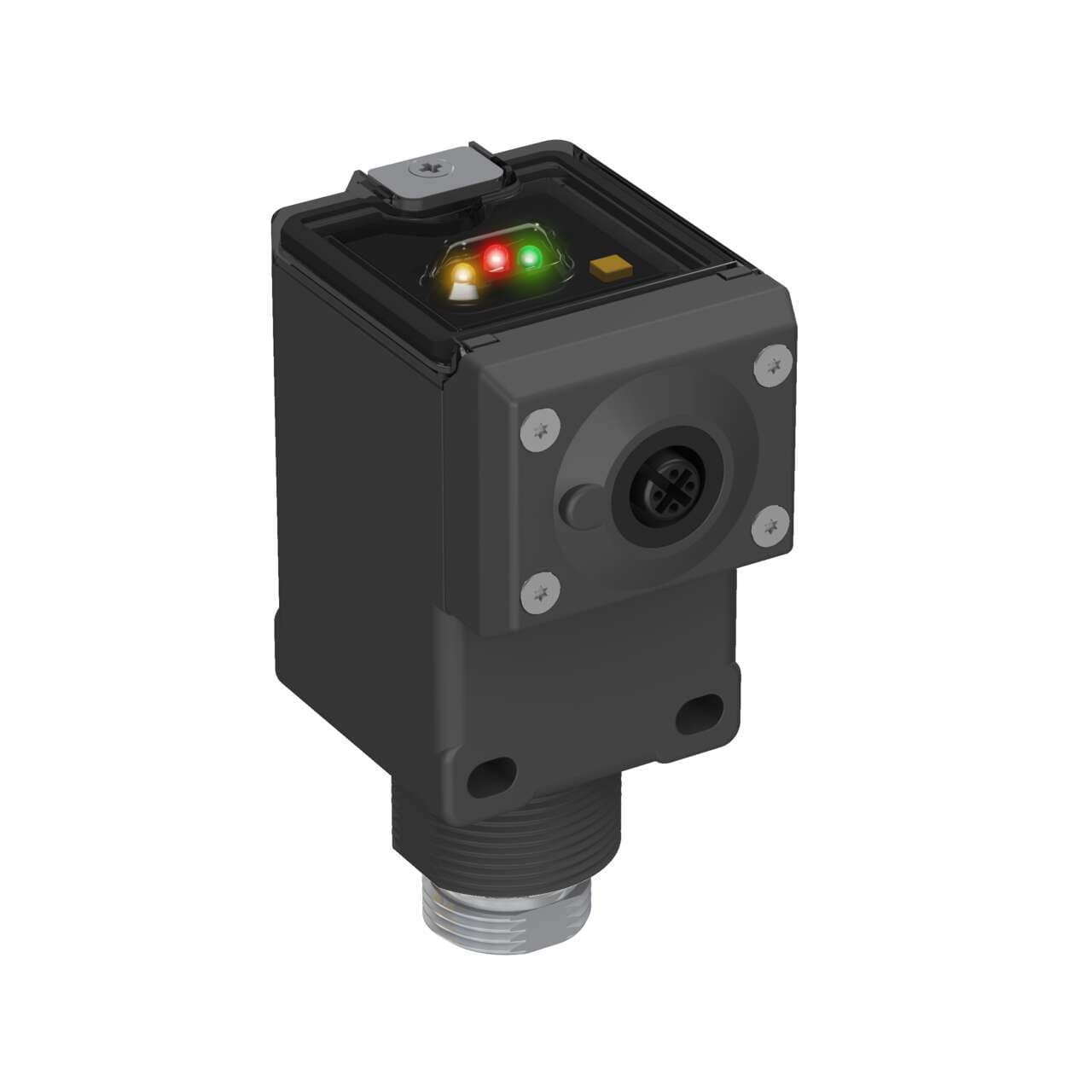

Q45UR3BA63CQ Banner Ultrasonic Sensors

Name: Q45UR3BA63CQ
Brand: Banner

Banner Q45UR3BA63CQ Q45UR Discrete Series: Controller; Range: 50-250 mm; Input: 12-24 V dc; Output: Bipolar: 1 NPN; 1 PNP; Mini-Style Integral QD

Part#:Q45UR3BA63CQ

Manufacturer:Banner

Alt. Part#:53010

Product Lifecycle:Active

Get a quick Quote!

Q45UR Discrete Series: Controller; Range: 50-250 mm; Input: 12-24 V dc; Output: Bipolar: 1 NPN; 1 PNP; Mini-Style Integral QD

About the manufacturer: Banner is one of the manufacturers that offers Ultrasonic Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the Q45UR3BA63CQ Banner price in the box on the right side or send a quick quote.

Product Details

Weight
299.37072 g
Country Of Origin
US
1-wire Serial Interface
No
PROFINET
No
Profibus
No
Wireless
No
SSI
No
RS-485
No
RS-422
No
RS-232
No
Application: Ultrasonic
Yes
Feature: Timing (Hold/Delay)
No
Common Ethernet Protocol
No
IO Link
No
Feature: Chemical Resistant
No
Feature: Clear Object Detection
Yes
Feature: Remote Teach
Yes
Supply Protection Circuitry
Protected against reverse polarity and transient overvoltages
Max Off-state Leakage Current (µA)
25
Power/Current Consumption (exclusive of load)
100 mA

Discrete Output Hysteresis (mm)

0.5

Ultrasonic Frequency (kHz)

400

Minimum Window Size (mm)

Minimum Response Time (ms)

Warm-up Time (minutes)

Max Op. Relative Humidity Non-Condensing (%)

Min Operating Temperature (°C)

-25

Max Operating Temperature (°C)

NEMA Rating

NEMA 6P

IP Rating

IP67

Output Protection

Protected against continuous overload and short circuit

Discrete (Switched) Outputs

Bipolar (NPN & PNP)

Max Discrete (Switched) Output (mA)

150

Mechanical Shock

IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave

Adjustments

Teach Button; DIP Switches

Vibration

MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).

Number of Pins

Temperature Effect (mm/°C)

0.03% to 0.05% of sensing distance/°C

Power Supply

12-24 V dc

Minimum Sensing Distance (mm)

Analog Resolution/Discrete Repeatability

+/- 0.2% of measured distance

Max Sensing Distance (mm)

250

Quick Disconnect Type

7/8 in. (Mini)

Input/Output

Discrete

Indicator

LED(s)

Connection

Integral QD

Primary Housing Material

Thermoplastic Polyester

Housing Style

Rectangular

PC Configurable

Device Type

Controller

Max Measurement Range

>100 mm - <=500 mm

Power

Sensing Mode (General)

Proximity

Sensing Mode (Detailed)

Time of Flight

Sensing Beam

Ultrasonic

Primary brand

Banner Engineering

Shape

Rectangular

Sensing distance

50...250mm

Digital outputs

1 x digital output (PNP/NPN transistor)

Supply voltage (DC)

12Vdc-24Vdc

Degree of protection

IP67 NEMA 6P

Order code / Manufacturer SKU

53010

Emission frequency

400kHz

Sub-range name

Q45UR series

Connection type

Pre-equipped with 5-pin 7/8" Mini connector

Material

thermoplastic polyester housing

Main function

Control unit

Design

time-of-flight system

Mounting mode

Threaded mount

Protection functions

Overload Short-circuit

Product series / family name

U-GAGE series

Functions

Remote transducer controller green LED (power ON) amber LED (output state) red LED (signal) TEACH mode

Thread size

M30

Ambient air temperature for operation

-25...+70 °C

Compliant with standard(s)

CE cCSAus

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Q45UR3BA63CQ Description

Banner Engineering Q45UR3BA63CQ is a control unit designed for remote transducer control applications. It features an M30 threaded mount for secure installation and operates within an ambient air temperature range of -25 to +70°C. This unit is based on a time-of-flight system with TEACH mode for adaptable sensing capabilities. It comes pre-equipped with a 5-pin 7/8" mini connector for straightforward connectivity. As part of the Q45UR series, it boasts an IP67 NEMA 6P degree of protection, ensuring durability in various environmental conditions. The supply voltage requirement is 12Vdc-24Vdc, making it compatible with a wide range of DC power supplies. Its rectangular shape is constructed from thermoplastic polyester housing, offering robustness. The Q45UR3BA63CQ operates at a 400kHz frequency and has a sensing distance range of 50 to 250mm. It includes 1 x digital output (PNP/NPN transistor) and is equipped with protection functions against overload and short-circuit, enhancing its operational reliability.
