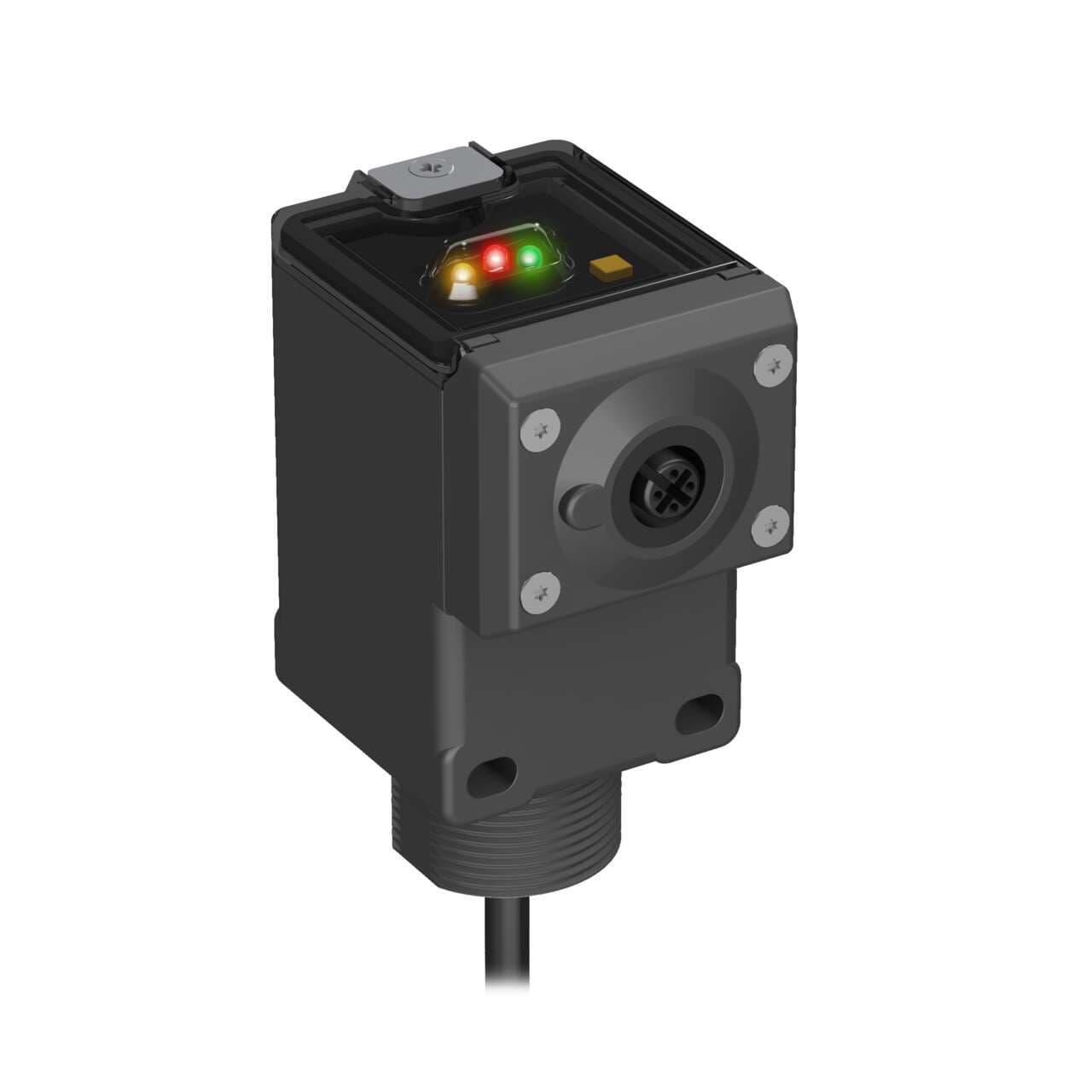

Q45UR3BA63C Banner Ultrasonic Sensors

Product Details

• Weight
  371.94544 g
• Country Of Origin
  US
• Wireless
  No
• RS-232
  No
• Profibus
  No
• 1-wire Serial Interface
  No
• SSI
  No
• RS-485
  No
• RS-422
  No
• Common Ethernet Protocol
  No
• PROFINET
  No
• IO Link
  No
• Feature: Timing (Hold/Delay)
  No
• Feature: Remote Teach
  Yes
• Feature: Chemical Resistant
  No
• Feature: Clear Object Detection
  Yes
• Application: Ultrasonic
  Yes
• Max Off-state Leakage Current (µA)
  25
• Ultrasonic Frequency (kHz)
  400
• Power/Current Consumption (exclusive of load)
  100 mA
Discrete Output Hysteresis (mm)
0.5
Supply Protection Circuitry
Protected against reverse polarity and transient overvoltages
Minimum Response Time (ms)
40
Max Op. Relative Humidity Non-Condensing (%)
85
Minimum Window Size (mm)
1
Warm-up Time (minutes)
15
Min Operating Temperature (°C)
-25
NEMA Rating
NEMA 6P
Discrete (Switched) Outputs
Bipolar (NPN & PNP)
Output Protection
Protected against continuous overload and short circuit
Max Operating Temperature (°C)
70
Max Discrete (Switched) Output (mA)
150
Mechanical Shock
IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
Vibration
MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
Number of Pins
5
IP Rating
IP67
Temperature Effect (mm/°C)
0.03% to 0.05% of sensing distance/°C
Power Supply
12-24 V dc
Minimum Sensing Distance (mm)
50
Max Sensing Distance (mm)
250
Adjustments
Teach Button; DIP Switches
Quick Disconnect Type
No QD
Indicator
LED(s)
Input/Output
Discrete
Connection
Flying Leads
Primary Housing Material
Thermoplastic Polyester
Analog Resolution/Discrete Repeatability
+/- 0.2% of measured distance
Cable Length (m)
2
Device Type
Controller
PC Configurable
No
Sensing Mode (Detailed)
Time of Flight
Power
DC
Max Measurement Range
>100 mm - <=500 mm
Housing Style
Rectangular
Sensing Mode (General)
Proximity
Sensing Beam
Ultrasonic
Functions
Remote transducer controller green LED (power ON) amber LED (output state) red LED (signal) TEACH mode
Thread size
M30
Mounting mode
Threaded mount
Emission frequency
400kHz
Sub-range name
Q45UR series
Connection type
Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
Compliant with standard(s)
CE
Product series / family name
U-GAGE series
Sensing distance
50...250mm
Material
thermoplastic polyester housing
Order code / Manufacturer SKU
52134
Primary brand
Banner Engineering
Design
time-of-flight system
Digital outputs
1 x digital output (PNP/NPN transistor)
Ambient air temperature for operation
-25...+70 °C
Main function
Control unit
Supply voltage (DC)
12Vdc-24Vdc
Shape
Rectangular
Protection functions
Overload Short-circuit
Degree of protection
IP67 NEMA 6P
