Q45ULIU64BCR Banner Ultrasonic Sensors

Q45ULIU64BCR on Powermatic Associates
Banner

Part#:Q45ULIU64BCR

Manufacturer:Banner

Alt. Part#:47555

Product Lifecycle:Active

Get a quick Quote!

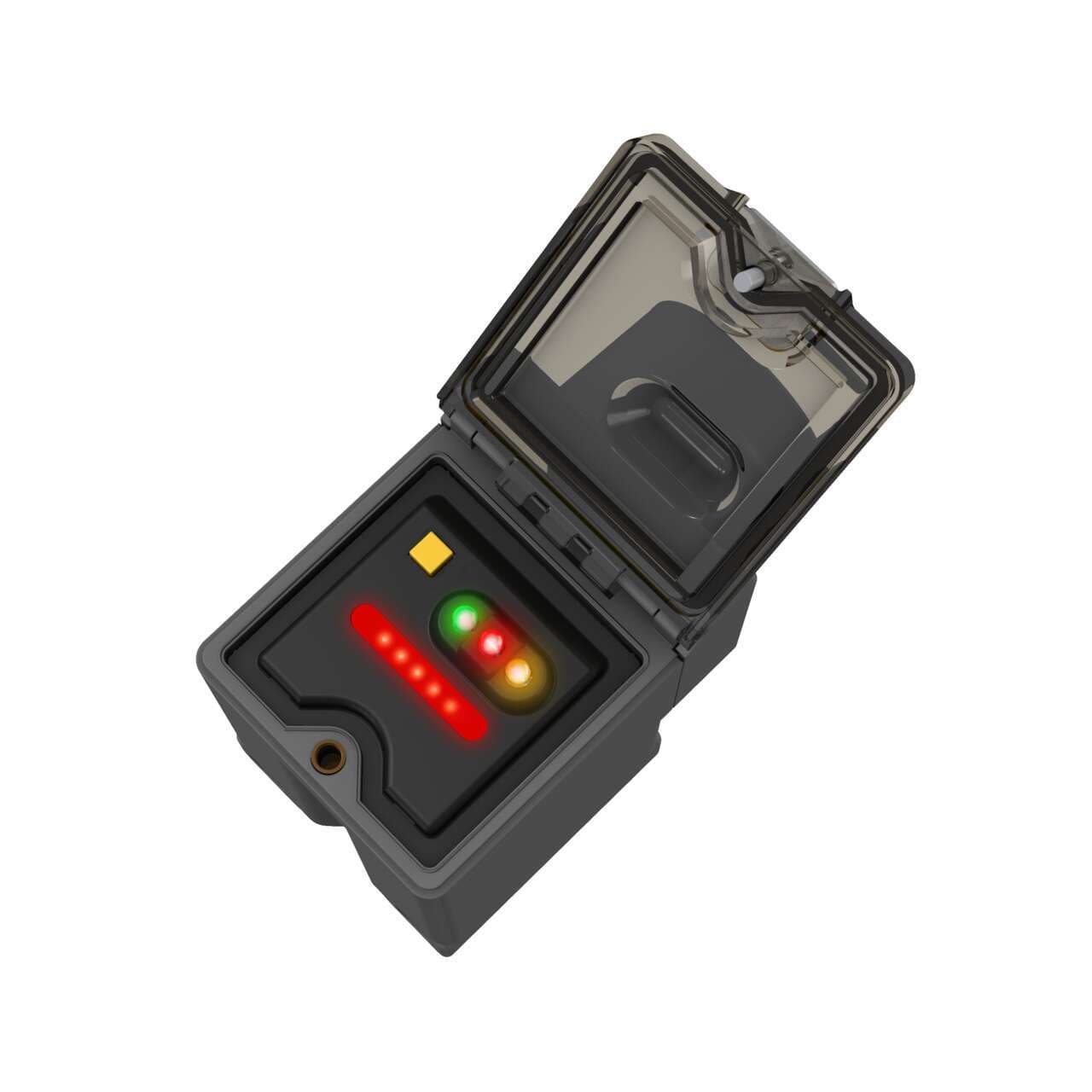

Analog Q45U Series: Proximity Mode; Range: 250 mm - 3 m; Input: 15-24 V dc; Output: Selectable 0-10 V dc or 4-20 mA sourcing; 2 m (6.5 ft) Cable

About the manufacturer: Banner is one of the manufacturers that offers Ultrasonic Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the Q45ULIU64BCR Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    381.01728 g
  • Country Of Origin
    US
  • SSI
    No
  • 1-wire Serial Interface
    No
  • RS-422
    No
  • Profibus
    No
  • Wireless
    No
  • RS-485
    No
  • RS-232
    No
  • PROFINET
    No
  • Application: Ultrasonic
    Yes
  • IO Link
    No
  • Supply Protection Circuitry
    Protected against reverse polarity and transient overvoltages
  • Feature: Remote Teach
    Yes
  • Power/Current Consumption (exclusive of load)
    100 mA
  • Feature: Timing (Hold/Delay)
    No
  • Feature: Chemical Resistant
    No
  • Common Ethernet Protocol
    No
  • Feature: Clear Object Detection
    Yes
  • Ultrasonic Frequency (kHz)
    128
  • Minimum Window Size (mm)
    25
  • Analog Linearity (mm)
    1% of full scale
  • Minimum Response Time (ms)
    80
  • Warm-up Time (minutes)
    15
  • Max Op. Relative Humidity Non-Condensing (%)
    100
  • Min Operating Temperature (°C)
    -25
  • Max Operating Temperature (°C)
    70
  • NEMA Rating
    NEMA 6P
  • IP Rating
    IP67
  • Output Protection
    Protected against false pulse on power-up and continuous overload or short-circuit of outputs
  • Analog Voltage Output Rating
    10mA Max
  • Analog Current Output Rating
    1 to 500 Ω impedance
  • Mechanical Shock
    IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
  • Number of Pins
    5
  • Vibration
    MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
  • Temperature Effect (mm/°C)
    0.05% of sensing distance/°C
  • Power Supply
    15-24 V dc
  • Adjustments
    Teach Button; DIP Switches
  • Analog Output Configuration
    0-10 V dc or 4-20 mA
  • Max Sensing Distance (mm)
    3000
  • Minimum Sensing Distance (mm)
    250
  • Quick Disconnect Type
    No QD
  • Analog Resolution/Discrete Repeatability
    +/- 0.1% of measured distance (+/- 0.25 min)
  • Connection
    Flying Leads
  • Indicator
    LED(s)
  • Input/Output
    Analog
  • Primary Housing Material
    PBT
  • Device Type
    Sensor
  • Sensing Mode (General)
    Proximity
  • Housing Style
    Rectangular
  • Sensing Mode (Detailed)
    Time of Flight
  • Cable Length (m)
    2
  • PC Configurable
    No
  • Power
    DC
  • Max Measurement Range
    >1 m - <=20 m
  • Sensing Beam
    Ultrasonic

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Q45ULIU64BCR Description

Banner Engineering Q45ULIU64BCR is an ultrasonic distance sensor/transmitter belonging to the Q45U series. It features a versatile design suitable for a wide range of applications, utilizing a time-of-flight system with TEACH mode for precise distance measurement. This sensor is equipped with an M30 threaded mount for secure installation and comes pre-wired with a 6.5ft / 2m cable that terminates in bare end flying leads for easy connection. It operates within an ambient air temperature range of -25 to +70°C and is designed for durability with a thermoplastic housing that provides IP67 and NEMA 6P protection against ingress. The Q45ULIU64BCR operates on a supply voltage of 15Vdc to 24Vdc and features a rectangular shape. It has a sensing distance range of 25cm to 3m and includes protection functions against overload and short-circuit. For signal output, it offers 1 x analog output (0-10Vdc / 4-20mA) and operates at a transmission frequency of 128kHz.

Related documents Q45ULIU64BCR Specs

Q45ULIU64BCR 48456.pdf
