Q45UBB63DAQ Banner Ultrasonic Sensors

Q45UBB63DAQ on Powermatic Associates
Banner
  • Q45UBB63DAQ
  • Q45UBB63DAQ

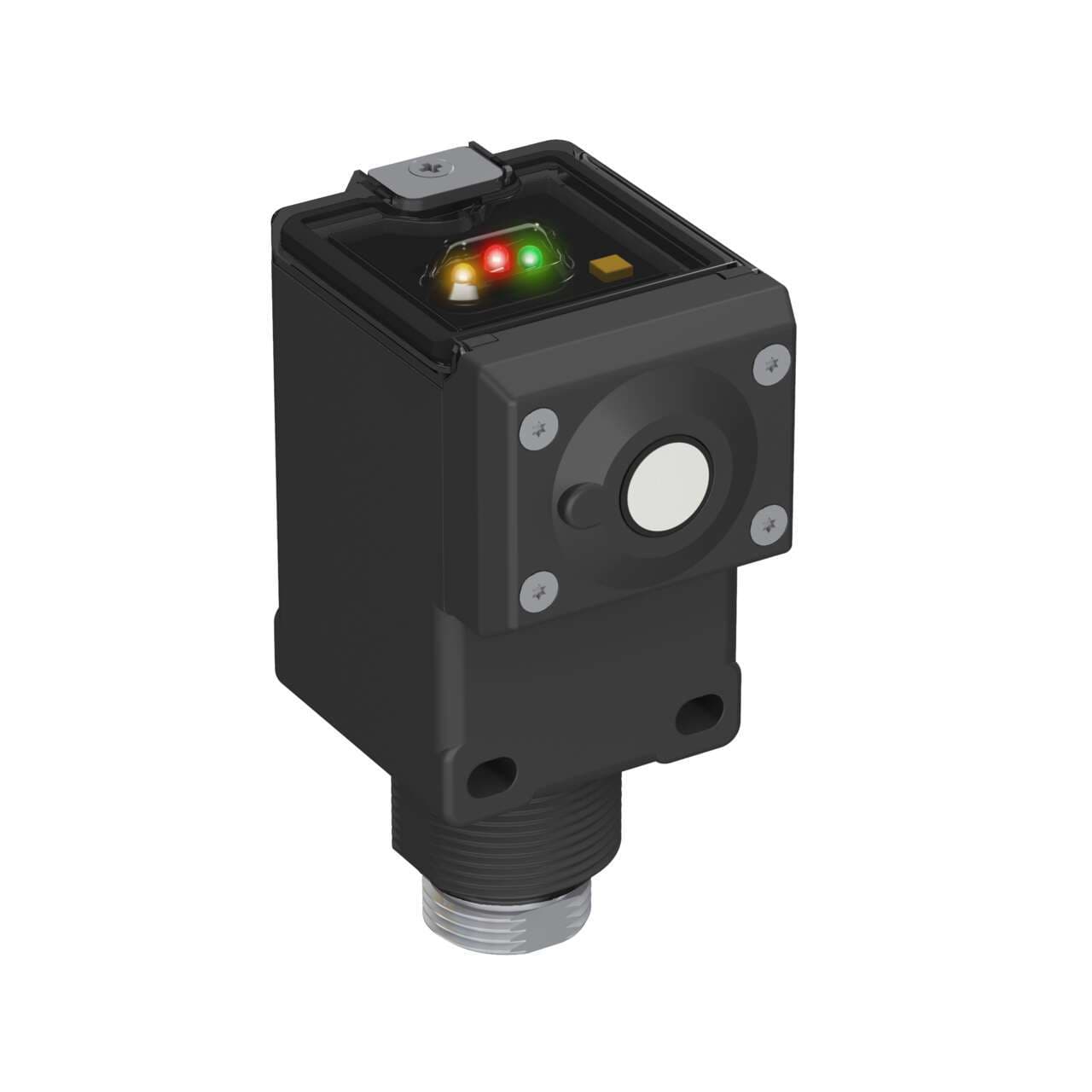

Part#:Q45UBB63DAQ

Alt. Part#:44129

Manufacturer:Banner

Category:Ultrasonic Sensors

Product Lifecycle:Active

Product description

Discrete Q45U Series: Prox. Mode w/out temp. comp.; Range: 100 mm - 1.4 m; Input: 12-24 V dc; Output: Bipolar: 1 NPN; 1 PNP; Mini-Style Integral QD

Product Details

  • Weight
    293.020432 g
  • Country Of Origin
    US
  • 1-wire Serial Interface
    No
  • Profibus
    No
  • Wireless
    No
  • RS-485
    No
  • Feature: Timing (Hold/Delay)
    No
  • Feature: Remote Teach
    Yes
  • Supply Protection Circuitry
    Protected against reverse polarity and transient overvoltages
  • RS-232
    No
  • SSI
    No
  • RS-422
    No
  • PROFINET
    No
  • IO Link
    No
  • Feature: Clear Object Detection
    Yes
  • Feature: Chemical Resistant
    No
  • Common Ethernet Protocol
    No
  • Application: Ultrasonic
    Yes
  • Power/Current Consumption (exclusive of load)
    100 mA
  • Max Off-state Leakage Current (µA)
    25
  • Ultrasonic Frequency (kHz)
    230
  • Warm-up Time (minutes)
    15
  • Discrete Output Hysteresis (mm)
    5
  • Minimum Response Time (ms)
    20
  • Minimum Window Size (mm)
    10
  • Max Op. Relative Humidity Non-Condensing (%)
    100
  • Min Operating Temperature (°C)
    -25
  • Max Operating Temperature (°C)
    70
  • IP Rating
    IP67
  • NEMA Rating
    NEMA 6P
  • Output Protection
    Protected against false pulse on power-up and continuous overload or short-circuit of outputs
  • Discrete (Switched) Outputs
    Bipolar (NPN & PNP)
  • Max Discrete (Switched) Output (mA)
    150
  • Output Saturation Voltage NPN Outputs
    < 1.5 V at 10 mA; < 2.0 V at 150 mA
  • Output Saturation Voltage PNP Outputs
    < 1.5 V at 10 mA; < 2.0 V at 150 mA
  • Mechanical Shock
    IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
  • Number of Pins
    5
  • Temperature Effect (mm/°C)
    0.2% of sensing distance/°C
  • Vibration
    MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
  • Analog Resolution/Discrete Repeatability
    +/- 0.1% of sensing distance (+/- 0.25 mm min.)
  • Minimum Sensing Distance (mm)
    100
  • Power Supply
    12-24 V dc
  • Adjustments
    Teach Button; DIP Switches
  • Max Sensing Distance (mm)
    1400
  • Quick Disconnect Type
    7/8 in. (Mini)
  • Connection
    Integral QD
  • Input/Output
    Discrete
  • Indicator
    LED(s)
  • Primary Housing Material
    PBT
  • PC Configurable
    No
  • Device Type
    Sensor
  • Housing Style
    Rectangular
  • Sensing Mode (General)
    Proximity
  • Sensing Mode (Detailed)
    Time of Flight
  • Power
    DC
  • Max Measurement Range
    >1 m - <=20 m
  • Sensing Beam
    Ultrasonic

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q45UBB63DAQ on Powermatic Associates is $514.00. Order now.

About the product

Banner Engineering Q45UBB63DAQ is an ultrasonic distance sensor belonging to the Q45U series. It features a versatile design with a time-of-flight system and TEACH mode, but does not include temperature compensation. This sensor is designed for mounting via an M30 threaded mount and is equipped with a 5-pin 7/8" mini connector for connectivity. It operates within an ambient air temperature range of -25 to +70°C and is protected by a thermoplastic housing that ensures an IP67 NEMA 6P degree of protection. The Q45UBB63DAQ operates on a supply voltage of 12Vdc-24Vdc and has a rectangular shape. It emits at a frequency of 239kHz and can sense distances ranging from 10cm to 1.4m. Additionally, it includes 1 x digital output (PNP/NPN transistor) and features protection functions against overload and short-circuit.
