Q40SP6LP W/30
Banner
Product Lifecycle: Active

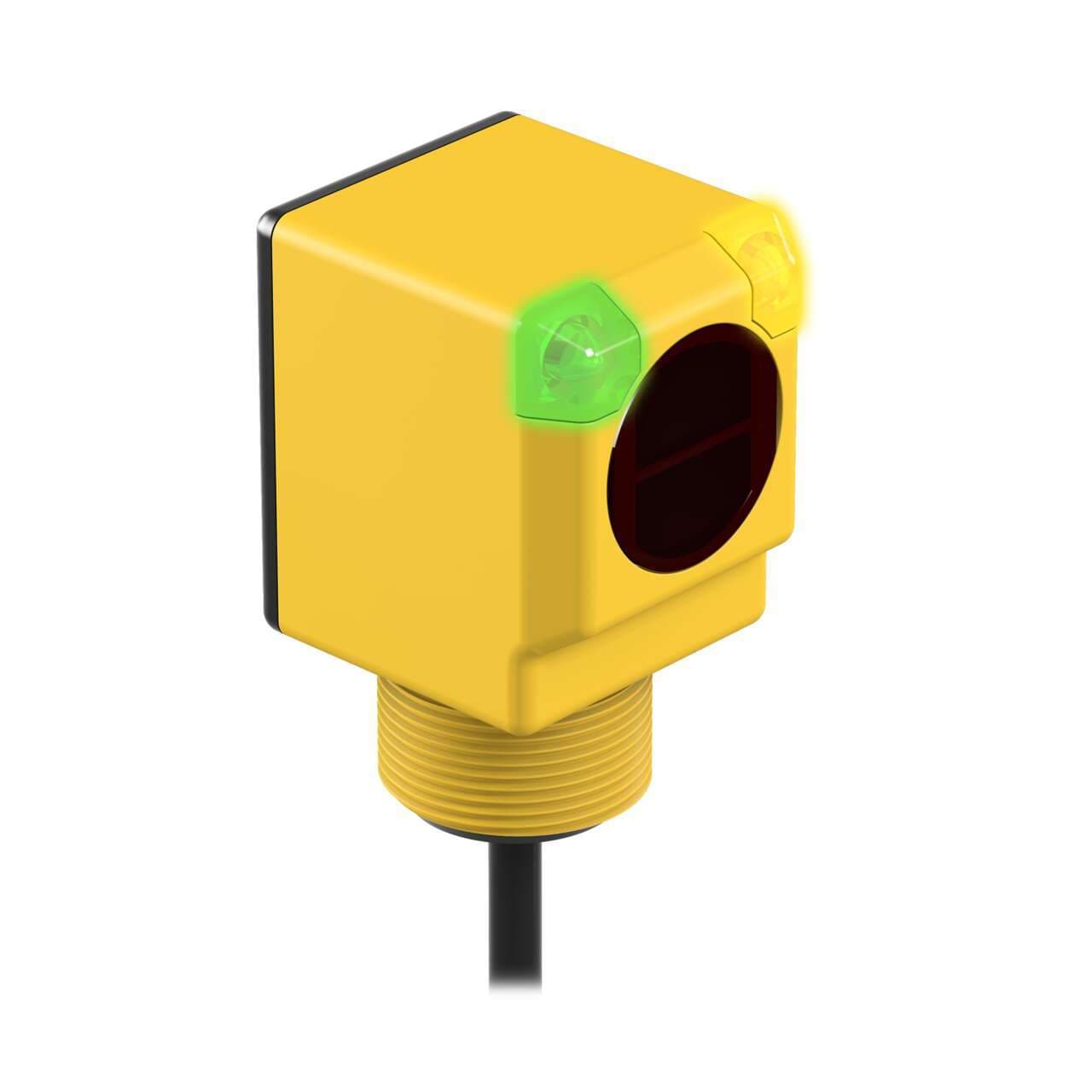

Banner Engineering Q40SP6LP W/30 is a polarized photo-electric sensor designed for retro-reflective mode operation. It features an M30 threaded mount for secure installation and is equipped with a pre-wired 30ft / 9m cable that terminates with bare end flying leads for easy connection. This sensor operates within an ambient air temperature range of -40 to +70°C and is housed in a thermoplastic material, ensuring durability. It belongs to the Q40 DC series and offers a sensing distance of up to 6 meters with a visible red light source at a wavelength of 680 nm. The Q40SP6LP W/30 supports both Light-ON and Dark-ON operating modes and provides a digital output (PNP transistor; complementary NO/NC) for versatile application use. It has a quick response time of 3ms / 0.003 s and is powered by a supply voltage ranging from 10Vdc to 30Vdc (12Vdc / 24Vdc nom.). This sensor is designed with a rectangular shape and offers a high degree of protection with an IP67 NEMA 6P rating, making it suitable for a wide range of industrial environments.
Banner Engineering Q40SP6LP W/30 is a polarized photo-electric sensor designed for retro-reflective mode operation. It features an M30 threaded mount for secure installation and is equipped with a pre-wired 30ft / 9m cable that terminates with bare end flying leads for easy connection. This sensor operates within an ambient air temperature range of -40 to +70°C and is housed in a thermoplastic material, ensuring durability. It belongs to the Q40 DC series and offers a sensing distance of up to 6 meters with a visible red light source at a wavelength of 680 nm. The Q40SP6LP W/30 supports both Light-ON and Dark-ON operating modes and provides a digital output (PNP transistor; complementary NO/NC) for versatile application use. It has a quick response time of 3ms / 0.003 s and is powered by a supply voltage ranging from 10Vdc to 30Vdc (12Vdc / 24Vdc nom.). This sensor is designed with a rectangular shape and offers a high degree of protection with an IP67 NEMA 6P rating, making it suitable for a wide range of industrial environments.
Product details
- IO LinkNo
- Feature: Health/ Marginal Signal OutputYes
- DeviceNetNo
- Feature: Chemical ResistantNo
- Feature: AudibleNo
- Feature: Hazardous AreaNo
- Feature: EncapsulatedYes
- Feature: Timing (Hold/Delay)No
- Feature: Ecolab CertifiedYes
- Opposed Mode Emitter/ReceiverN/A
- IndicatorLEDs
- Barrel Diameter (mm)30
- AdjustmentsN/A
- NEMA RatingNEMA 6P
- Max Op. Relative Humidity [%]90% @ 50°C
- Number of Pins4
- IP RatingIP67
- Lens MaterialPolycarbonate
- Special Feature: Water DetectionNo
- Special Feature: Remote TeachNo
- Delay at Power-up (ms)100
- Repeatability (µs)750
- Max Op. Temp. (°C)70
- OperationLight/Dark Operate
- Min Op. Temp. (°C)-40
- Special Feature: Intrinsically SafeNo
- Output response time (ms)3
- OutputsPNP
- ConnectionCable
- Quick Disconnect TypeNo QD
- Power Supply/Supply Voltage10-30 V dc
- Max Sensing Distance (mm)6000
- Primary Housing MaterialThermoplastic
- Input/OutputDiscrete
- Housing StyleRectangular
- Sensing Mode (Detailed)Polarized
- Sensing Mode (General)Retroreflective
- Sensing BeamVisible Red LED
- PowerDC
- Cable Length (m)9
