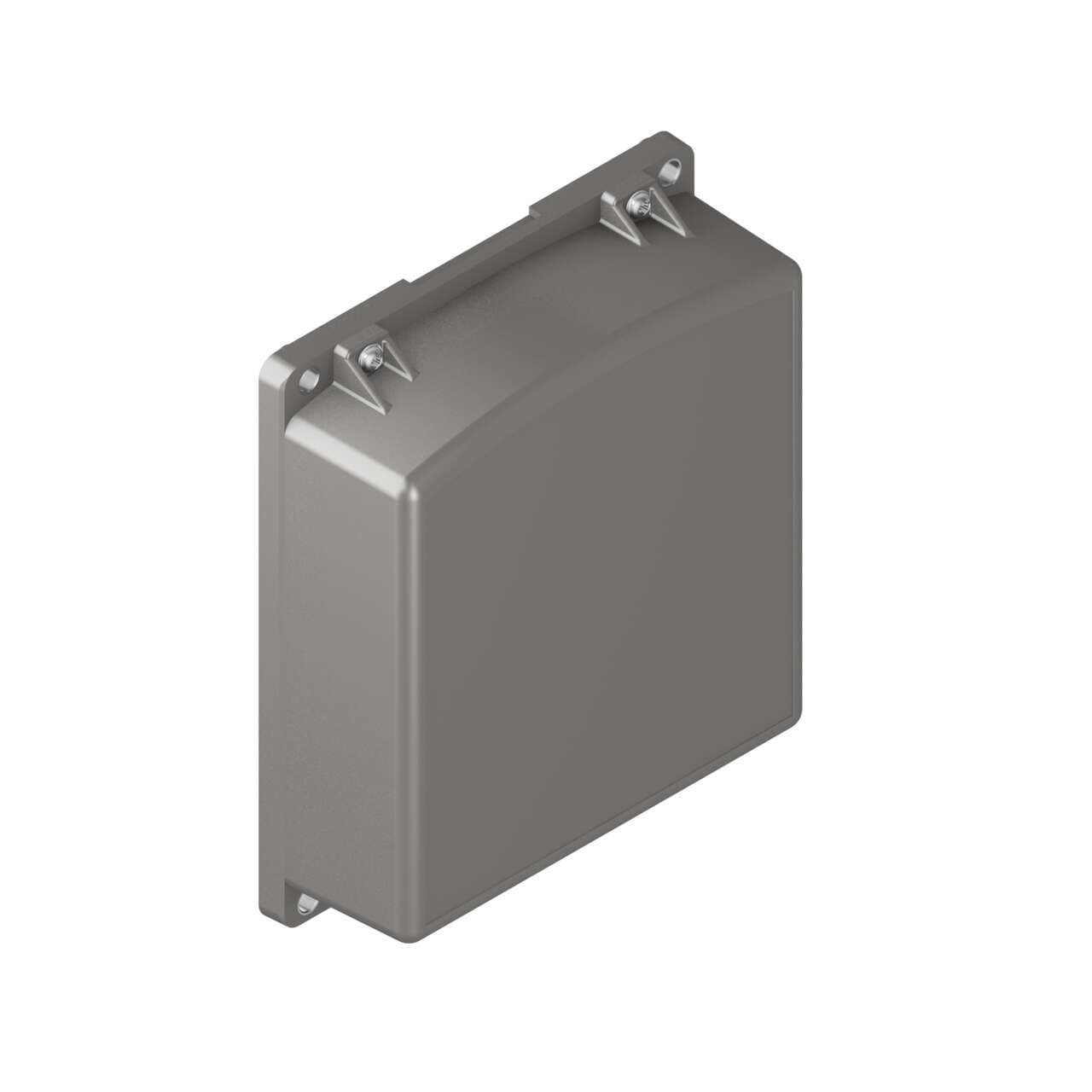

Q240RA-US-ILQ Banner Optical Sensors

Product Details

• Weight
  1065.9412 g
• Country Of Origin
  US
• Cert: Canada
  Yes
• Profibus
  No
• 1-wire Serial Interface
  No
• Cert: US
  Yes
• Wireless
  No
• SSI
  No
• RS-485
  No
• RS-422
  No
• RS-232
  No
• PROFINET
  No
• Common Ethernet Protocol
  No
• IO Link
  No
• Feature: Timing (Hold/Delay)
  No
• Feature: Chemical Resistant
  No
• Supply Protection Circuitry
  Protected against reverse polarity and transient overvoltages
• Power/Current Consumption (exclusive of load)
  < 85 mA
• Analog Linearity (mm)
  +/- 1m
• Minimum Response Time (ms)
  15
Min Operating Temperature (°C)
-40
Max Operating Temperature (°C)
65
IP Rating
IP67
Output Protection
Protected against short circuit
Discrete (Switched) Outputs
2 NPN/PNP Configurable
Analog Current Output Rating
1 kΩ max @24 V dc, max load resistance = [(Vcc-4.5)/0.02 Ω]
Max Discrete (Switched) Output (mA)
150
Vibration
10 Hz to 55 Hz 0.5 mm p-p amplitude per IEC 60068-2-6
Mechanical Shock
30G 11 ms duration, half sine wave per IEC 60068-2-27
Number of Pins
5
Temperature Effect (mm/°C)
50 mm/°C
Adjustments
Dip Switch
Delay at Power-up (ms)
2000
Power Supply
12-30 V dc
Minimum Sensing Distance (mm)
3500
Analog Resolution/Discrete Repeatability
500
Quick Disconnect Type
M12 (Euro)
Max Sensing Distance (mm)
100000
Primary Housing Material
Polycarbonate
Indicator
LED(s)
Input/Output
Analog & Discrete
Analog Output Configuration
4-20 mA
Connection
Integral QD
Radar Beam Pattern (H x V °)
11 x 13
Device Type
Sensor
Max Measurement Range
>50 m
Housing Style
Rectangular
Sensing Mode (Detailed)
Time of Flight
Sensing Mode (General)
Proximity
PC Configurable
No
Power
DC
Operating Frequency
24 GHz
Sensing Beam
Radar
Product series / family name
R-GAGE series
Shape
Rectangular
Analog outputs
1 x analog output (4-20mA)
Compliant with standard(s)
cULus
Primary brand
Banner Engineering
Functions
Narrow-beam adjustable-field radar sensor green LED (power ON) yellow LED (output state)
Operating mode
NO (Normally Open) NC (Normally Closed)
Material
polycarbonate housing
Supply voltage (DC)
12Vdc-30Vdc (24Vdc nom.)
Sensing distance
3.5...100m
Degree of protection
IP67
Emission frequency
24.075GHz...24.175GHz (ISM band)
Main function
Sensor (Radar)
Design
time-of-flight system US / Canada Telecom-approved
Sub-range name
Q240R
Connection type
Pre-equipped with 5-pin Euro-style M12 connector
Protection functions
Reverse polarity Short-circuit
Equivalent to
Q240RAUSILQ
Digital outputs
2 x digital outputs (PNP/NPN transistors)
Ambient air temperature for operation
-40...+65 °C
Order code / Manufacturer SKU
97662

Related documents Q240RA-US-ILQ Specs
