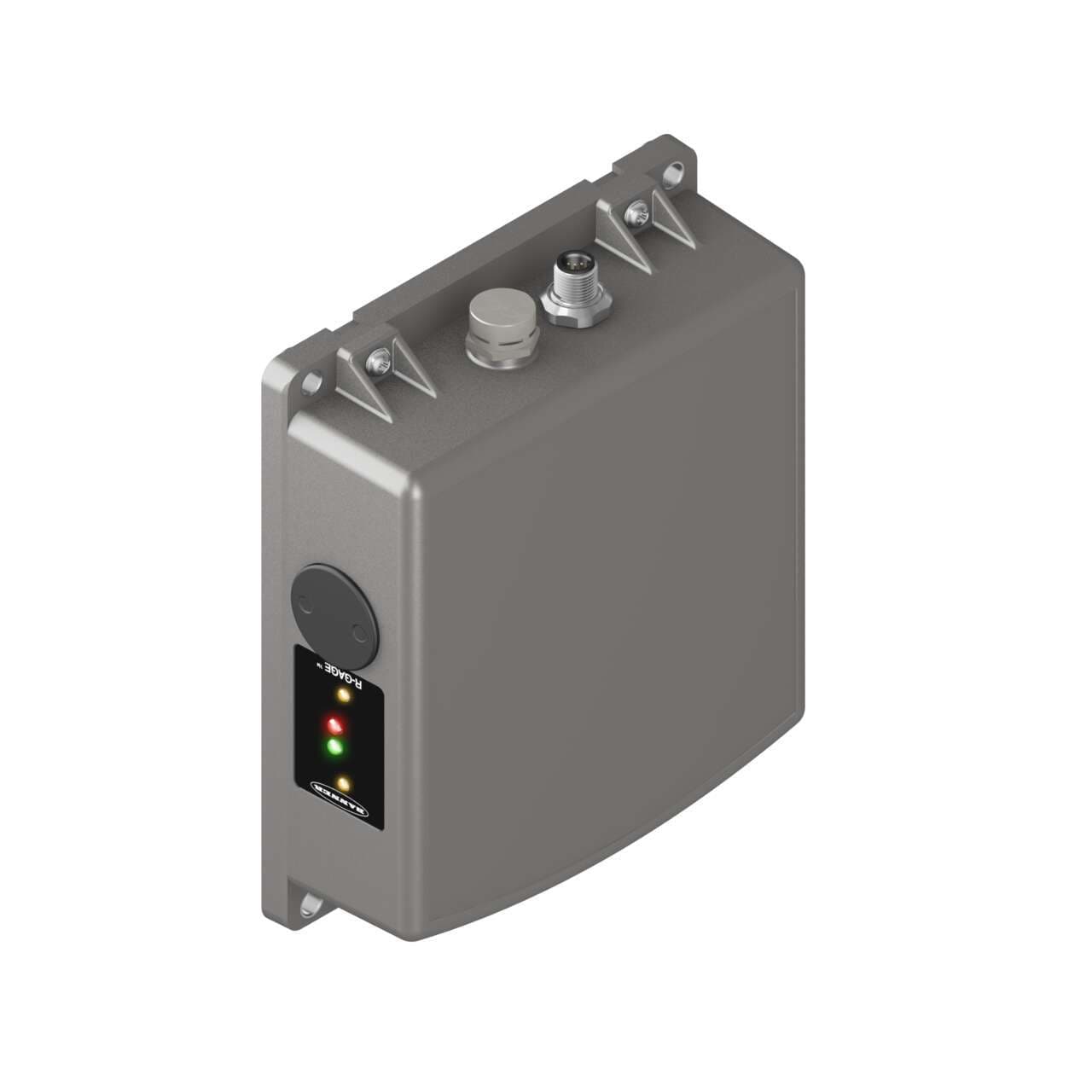

Q240RA-EU-ILQ Banner Optical Sensors

Q240RA-EU-ILQ on Powermatic Associates
Banner
  • Q240RA-EU-ILQ
  • Q240RA-EU-ILQ

Part#:Q240RA-EU-ILQ

Alt. Part#:801993

Manufacturer:Banner

Category:Optical Sensors

Product Lifecycle:Active

Product description

R-GAGE Series; 173 mm x 158 mm Rectangular Housing; Range: 3.5-100 m; Input: 10-30 V dc; M12 Integral QD; One Analog output 4-20 mA; EU Frequency

Product Details

  • Weight
    1065.9412 g
  • Country Of Origin
    US
  • 1-wire Serial Interface
    No
  • Supply Protection Circuitry
    Protected against reverse polarity and transient overvoltages
  • Cert: European
    Yes
  • Profibus
    No
  • Wireless
    No
  • SSI
    No
  • IO Link
    No
  • RS-485
    No
  • RS-422
    No
  • Common Ethernet Protocol
    No
  • Feature: Chemical Resistant
    No
  • Feature: Timing (Hold/Delay)
    No
  • PROFINET
    No
  • RS-232
    No
  • Power/Current Consumption (exclusive of load)
    < 85 mA
  • Max Operating Temperature (°C)
    65
  • Minimum Response Time (ms)
    15
  • Analog Linearity (mm)
    +/- 1m
  • Min Operating Temperature (°C)
    -40
  • IP Rating
    IP67
  • Output Protection
    Protected against short circuit
  • Max Discrete (Switched) Output (mA)
    150
  • Discrete (Switched) Outputs
    2 NPN/PNP Configurable
  • Analog Current Output Rating
    1 kΩ max @24 V dc, max load resistance = [(Vcc-4.5)/0.02 Ω]
  • Vibration
    10 Hz to 55 Hz 0.5 mm p-p amplitude per IEC 60068-2-6
  • Mechanical Shock
    30G 11 ms duration, half sine wave per IEC 60068-2-27
  • Number of Pins
    5
  • Adjustments
    Dip Switch
  • Temperature Effect (mm/°C)
    50 mm/°C
  • Delay at Power-up (ms)
    2000
  • Power Supply
    12-30 V dc
  • Max Sensing Distance (mm)
    100000
  • Minimum Sensing Distance (mm)
    3500
  • Analog Output Configuration
    4-20 mA
  • Radar Beam Pattern (H x V °)
    11 x 13
  • Quick Disconnect Type
    M12 (Euro)
  • Analog Resolution/Discrete Repeatability
    500
  • Connection
    Integral QD
  • Indicator
    LED(s)
  • Input/Output
    Analog & Discrete
  • Primary Housing Material
    Polycarbonate
  • Device Type
    Sensor
  • Housing Style
    Rectangular
  • Power
    DC
  • Sensing Mode (Detailed)
    Time of Flight
  • PC Configurable
    No
  • Sensing Mode (General)
    Proximity
  • Sensing Beam
    Radar
  • Operating Frequency
    24 GHz
  • Max Measurement Range
    >50 m
  • Primary brand
    Banner Engineering
  • Main function
    Sensor (Radar)
  • Design
    time-of-flight system Europe / UK / Australia / New Zealand Telecom-approved
  • Degree of protection
    IP67
  • Compliant with standard(s)
    cULus CE
  • Sub-range name
    Q240R
  • Functions
    Narrow-beam adjustable-field radar sensor green LED (power ON) yellow LED (output state)
  • Analog outputs
    1 x analog output (4-20mA)
  • Ambient air temperature for operation
    -40...+65 °C
  • Product series / family name
    R-GAGE series
  • Sensing distance
    3.5...100m
  • Material
    polycarbonate housing
  • Protection functions
    Reverse polarity Short-circuit
  • Emission frequency
    24.050GHz...24.250GHz (ISM band)
  • Connection type
    Pre-equipped with 5-pin Euro-style M12 connector
  • Digital outputs
    2 x digital outputs (PNP/NPN transistors)
  • Order code / Manufacturer SKU
    801993
  • Supply voltage (DC)
    12Vdc-30Vdc (24Vdc nom.)
  • Shape
    Rectangular
  • Operating mode
    NO (Normally Open) NC (Normally Closed)
  • Equivalent to
    Q240RAEUILQ

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q240RA-EU-ILQ on Powermatic Associates is $3,397.00. Order now.

About the product

Banner Engineering Q240RA-EU-ILQ is a narrow-beam adjustable-field radar sensor designed for a variety of detection applications. It operates within an ambient air temperature range of -40 to +65 °C and features a time-of-flight system that is approved for use in Europe, the UK, Australia, and New Zealand by Telecom. This sensor is equipped with a 5-pin Euro-style M12 connector for easy installation. As part of the Q240R series, it offers an IP67 degree of protection, ensuring durability in harsh environments. The sensor requires a supply voltage of 12Vdc to 30Vdc, with 24Vdc nominal, and is housed in a rectangular, polycarbonate (PC) enclosure. It operates on a 24.050GHz to 24.250GHz transmission frequency within the ISM band. The Q240RA-EU-ILQ can detect objects within a sensing distance of 3.5 to 100 meters and includes both normally open (NO) and normally closed (NC) operating modes. It features 2 digital outputs (PNP/NPN transistor) and 1 analog output (4-20mA), with built-in protection against reverse polarity and short-circuit conditions.
