Q240RA-CN-AF2LQ Banner Electronic Components

Q240RA-CN-AF2LQ on Powermatic Associates
Banner

Part#:Q240RA-CN-AF2LQ

Manufacturer:Banner

Category:Electronic Components

Product Lifecycle:Active

Product description

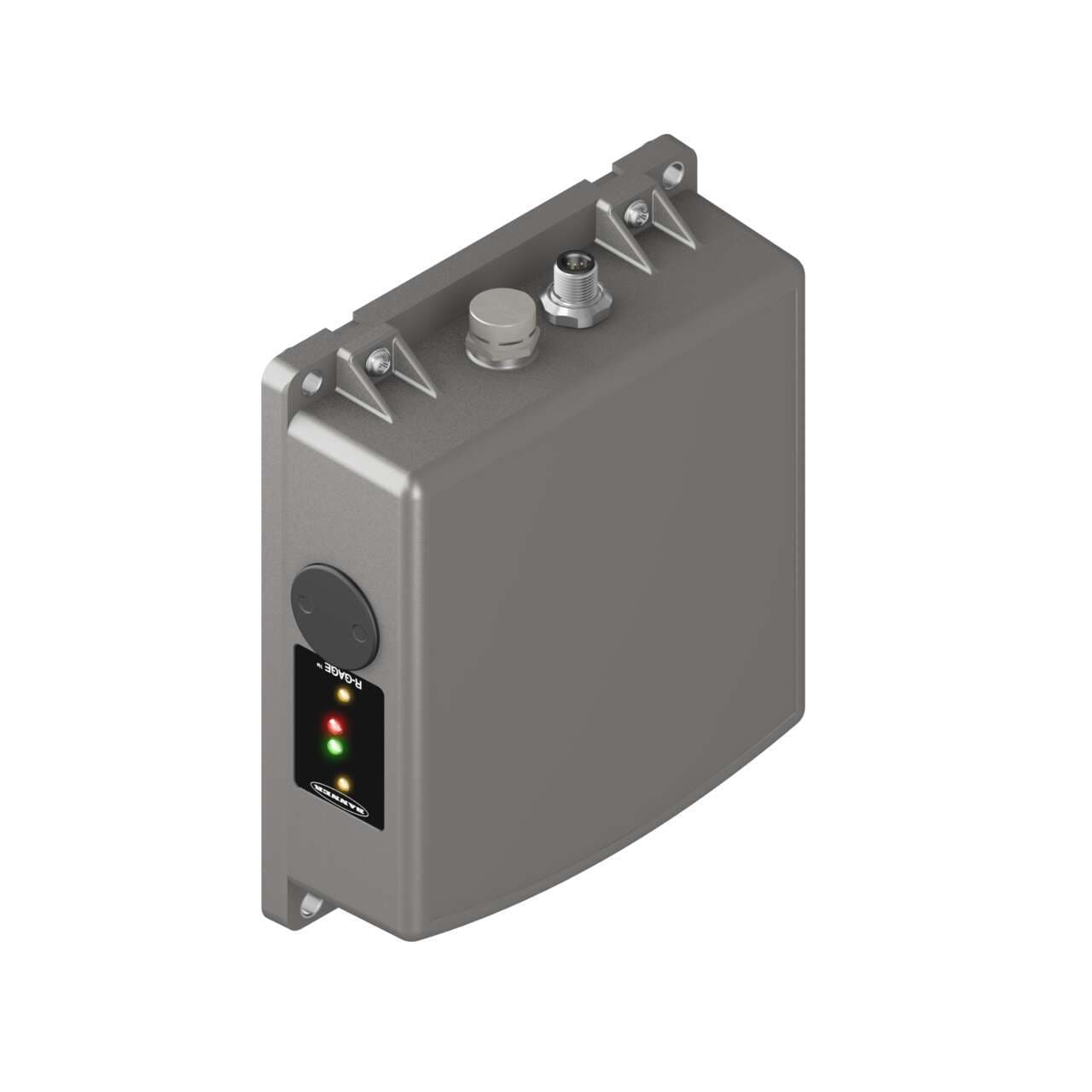

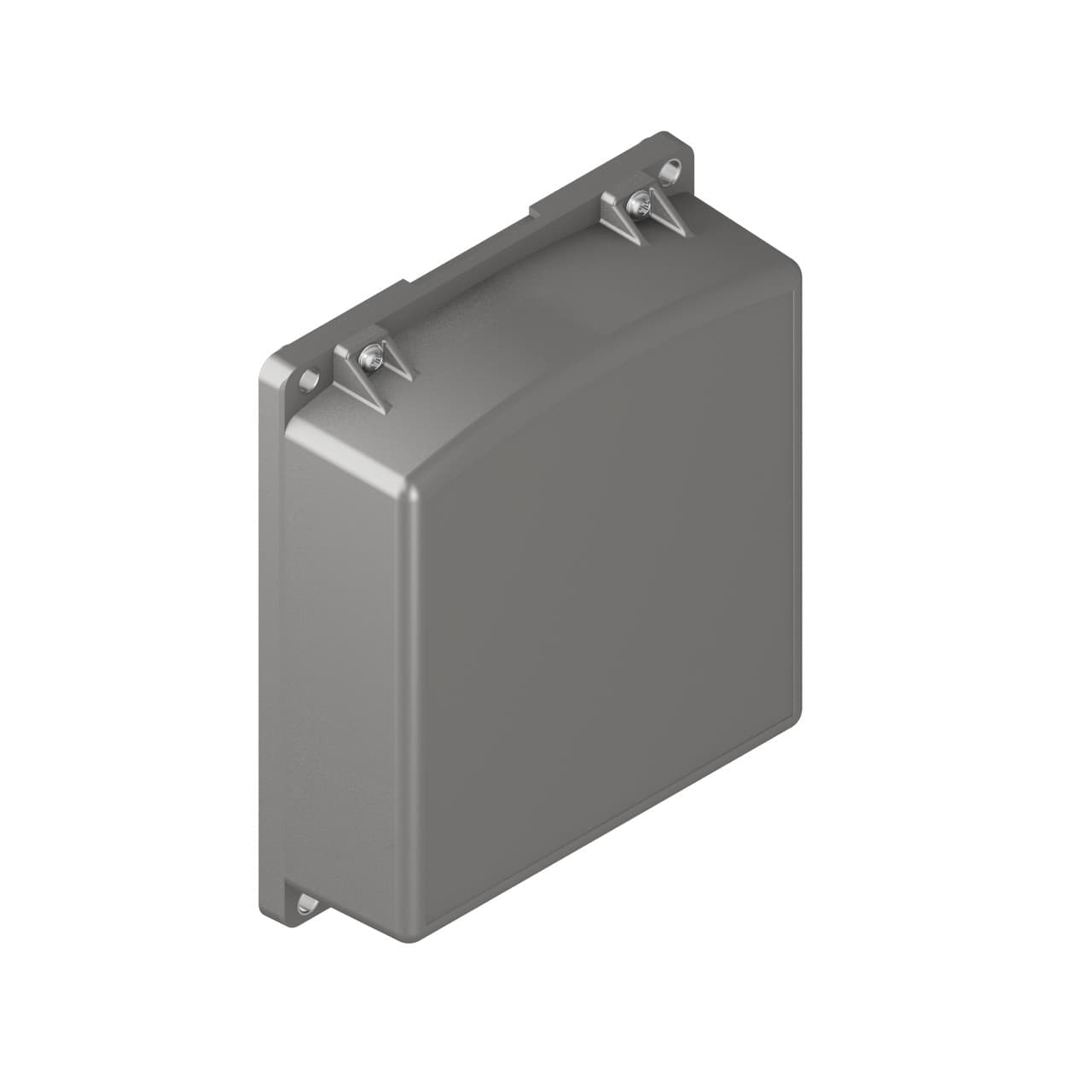

Banner Engineering Q240RA-CN-AF2LQ is a narrow-beam adjustable-field radar sensor designed with a time-of-flight system and approved by China Telecom. It operates within an ambient air temperature range of -40 to +65 °C and is housed in a polycarbonate (PC) material, ensuring durability within specified environmental conditions. This sensor is part of the Q240R series and features a rectangular shape with a degree of protection rated at IP67, making it suitable for various industrial applications. It is pre-equipped with a 5-pin Euro-style M12 connector for connectivity and operates on a supply voltage range of 12Vdc to 30Vdc, with 24Vdc as the nominal voltage. The sensor's transmission frequency spans from 24.050GHz to 24.250GHz within the ISM band, and it can detect objects within a sensing distance of 3.5 to 100 meters. It offers two digital outputs (PNP/NPN transistor) and supports both Normally Open (NO) and Normally Closed (NC) operating modes. Additionally, it includes protection functions against reverse polarity and short-circuit incidents.

Product Details

  • Wireless
    No
  • RS-232
    No
  • Cert: China
    Yes
  • Profibus
    No
  • RS-422
    No
  • RS-485
    No
  • SSI
    No
  • 1-wire Serial Interface
    No
  • PROFINET
    No
  • Feature: Timing (Hold/Delay)
    No
  • IO Link
    No
  • Feature: Chemical Resistant
    No
  • Common Ethernet Protocol
    No
  • Supply Protection Circuitry
    Protected against reverse polarity and transient overvoltages
  • Power/Current Consumption (exclusive of load)
    < 85 mA
  • Max Operating Temperature (°C)
    65
  • Minimum Response Time (ms)
    15
  • Min Operating Temperature (°C)
    -40
  • IP Rating
    IP67
  • Discrete (Switched) Outputs
    2 NPN/PNP Configurable
  • Output Protection
    Protected against short circuit
  • Max Discrete (Switched) Output (mA)
    150
  • Mechanical Shock
    30G 11 ms duration, half sine wave per IEC 60068-2-27
  • Vibration
    10 Hz to 55 Hz 0.5 mm p-p amplitude per IEC 60068-2-6
  • Number of Pins
    5
  • Adjustments
    Dip Switch
  • Delay at Power-up (ms)
    2000
  • Power Supply
    12-30 V dc
  • Minimum Sensing Distance (mm)
    3500
  • Max Sensing Distance (mm)
    100000
  • Quick Disconnect Type
    M12 (Euro)
  • Connection
    Integral QD
  • Radar Beam Pattern (H x V °)
    11 x 13
  • Indicator
    LED(s)
  • Input/Output
    Discrete
  • Primary Housing Material
    Polycarbonate
  • Power
    DC
  • Housing Style
    Rectangular
  • PC Configurable
    No
  • Sensing Mode (General)
    Proximity
  • Sensing Mode (Detailed)
    Time of Flight
  • Device Type
    Sensor
  • Max Measurement Range
    >50 m
  • Sensing Beam
    Radar
  • Operating Frequency
    24 GHz
  • Design
    time-of-flight system China telecom-approved
  • Material
    polycarbonate housing
  • Equivalent to
    Q240RACNAF2LQ
  • Primary brand
    Banner Engineering
  • Sub-range name
    Q240R
  • Functions
    Narrow-beam adjustable-field radar sensor green LED (power ON) yellow LED (output state)
  • Degree of protection
    IP67
  • Compliant with standard(s)
    cULus
  • Main function
    Sensor (Radar)
  • Product series / family name
    R-GAGE series
  • Operating mode
    NO (Normally Open) NC (Normally Closed)
  • Emission frequency
    24.050GHz...24.250GHz (ISM band)
  • Ambient air temperature for operation
    -40...+65 °C
  • Order code / Manufacturer SKU
    801722
  • Supply voltage (DC)
    12Vdc-30Vdc (24Vdc nom.)
  • Protection functions
    Reverse polarity Short-circuit
  • Sensing distance
    3.5...100m
  • Shape
    Rectangular
  • Digital outputs
    2 x digital outputs (PNP/NPN transistors)
  • Connection type
    Pre-equipped with 5-pin Euro-style M12 connector

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Q240RA-CN-AF2LQ Related Documents

Q240-1630950749789.stpR-GAGE Q240RA-AF2L Sensor-1630950749785.pdfQ240-1630950749783.pdf
