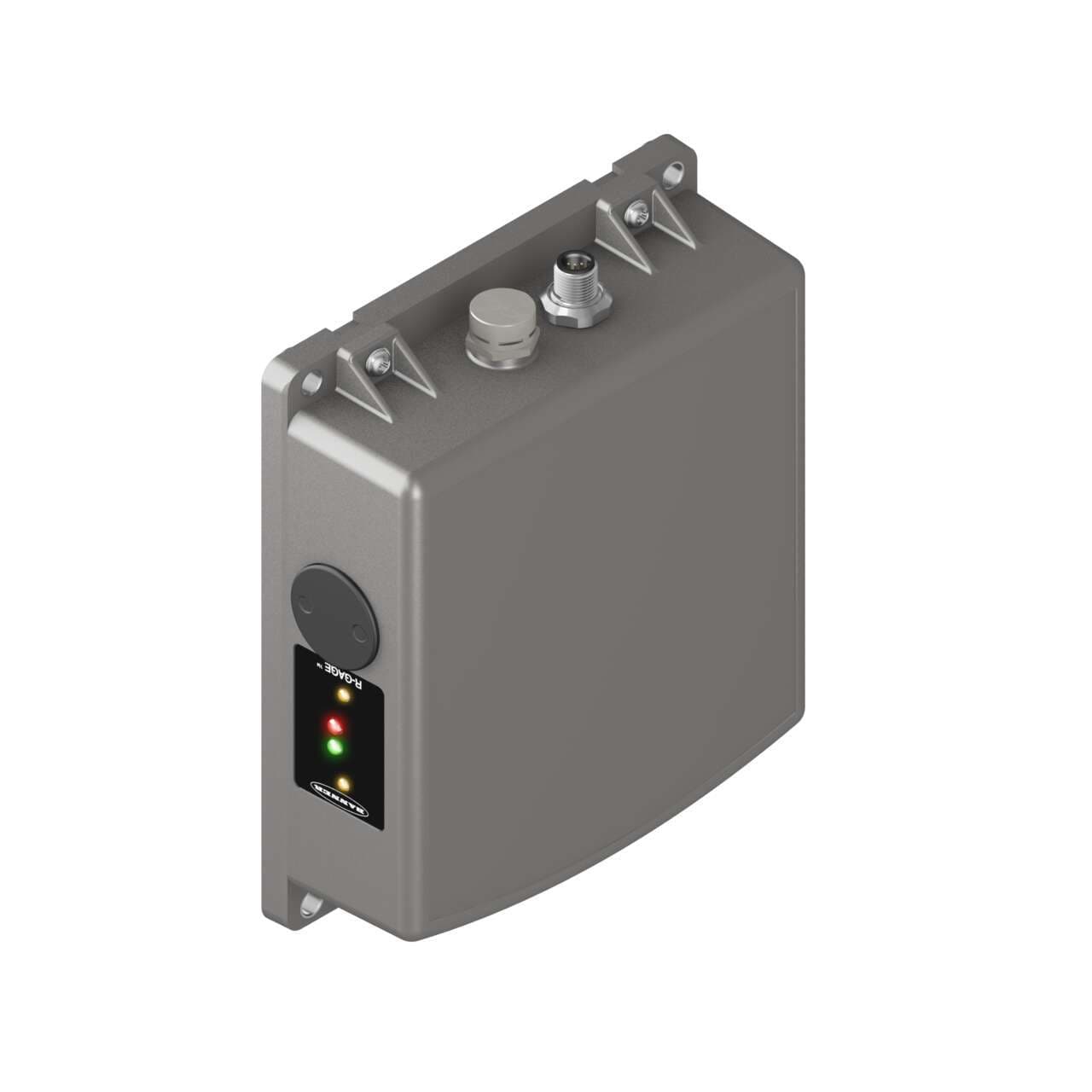

Q240RA-EU-AF2LQ Banner Optical Sensors

Q240RA-EU-AF2LQ on Powermatic Associates
Banner
  • Q240RA-EU-AF2LQ
  • Q240RA-EU-AF2LQ

Part#:Q240RA-EU-AF2LQ

Alt. Part#:801992

Manufacturer:Banner

Category:Optical Sensors

Product Lifecycle:Active

Product description

R-GAGE Series; 173 mm X 158 mm Rectangular Housing; Range: 3.5-100 m; Input: 10-30 V dc; M12 Integral QD; Two Bipolar Outputs; EU Frequency

Product Details

  • Weight
    1034.18976 g
  • Country Of Origin
    US
  • Cert: European
    Yes
  • 1-wire Serial Interface
    No
  • SSI
    No
  • Profibus
    No
  • Wireless
    No
  • PROFINET
    No
  • RS-485
    No
  • RS-422
    No
  • RS-232
    No
  • Power/Current Consumption (exclusive of load)
    < 85 mA
  • IO Link
    No
  • Common Ethernet Protocol
    No
  • Feature: Chemical Resistant
    No
  • Feature: Timing (Hold/Delay)
    No
  • Minimum Response Time (ms)
    15
  • Min Operating Temperature (°C)
    -40
  • Supply Protection Circuitry
    Protected against reverse polarity and transient overvoltages
  • IP Rating
    IP67
  • Output Protection
    Protected against short circuit
  • Discrete (Switched) Outputs
    2 NPN/PNP Configurable
  • Max Discrete (Switched) Output (mA)
    150
  • Mechanical Shock
    30G 11 ms duration, half sine wave per IEC 60068-2-27
  • Max Operating Temperature (°C)
    65
  • Vibration
    10 Hz to 55 Hz 0.5 mm p-p amplitude per IEC 60068-2-6
  • Number of Pins
    5
  • Adjustments
    Dip Switch
  • Delay at Power-up (ms)
    2000
  • Power Supply
    12-30 V dc
  • Minimum Sensing Distance (mm)
    3500
  • Max Sensing Distance (mm)
    100000
  • Quick Disconnect Type
    M12 (Euro)
  • Connection
    Integral QD
  • Indicator
    LED(s)
  • Radar Beam Pattern (H x V °)
    11 x 13
  • Input/Output
    Discrete
  • Primary Housing Material
    Polycarbonate
  • Housing Style
    Rectangular
  • Power
    DC
  • Max Measurement Range
    >50 m
  • PC Configurable
    No
  • Device Type
    Sensor
  • Operating Frequency
    24 GHz
  • Sensing Beam
    Radar
  • Sensing Mode (General)
    Proximity
  • Sensing Mode (Detailed)
    Time of Flight
  • Sensing distance
    3.5...100m
  • Supply voltage (DC)
    12Vdc-30Vdc (24Vdc nom.)
  • Digital outputs
    2 x digital outputs (PNP/NPN transistors)
  • Compliant with standard(s)
    cULus CE
  • Product series / family name
    R-GAGE series
  • Shape
    Rectangular
  • Equivalent to
    Q240RAEUAF2LQ
  • Sub-range name
    Q240R
  • Operating mode
    NO (Normally Open) NC (Normally Closed)
  • Ambient air temperature for operation
    -40...+65 °C
  • Emission frequency
    24.050GHz...24.250GHz (ISM band)
  • Main function
    Sensor (Radar)
  • Functions
    Narrow-beam adjustable-field radar sensor green LED (power ON) yellow LED (output state)
  • Connection type
    Pre-equipped with 5-pin Euro-style M12 connector
  • Protection functions
    Reverse polarity Short-circuit
  • Primary brand
    Banner Engineering
  • Design
    time-of-flight system Europe / UK / Australia / New Zealand Telecom-approved
  • Degree of protection
    IP67
  • Material
    polycarbonate housing
  • Order code / Manufacturer SKU
    801992

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q240RA-EU-AF2LQ on Powermatic Associates is $3,058.00. Order now.

About the product

Banner Engineering Q240RA-EU-AF2LQ is a narrow-beam adjustable-field radar sensor designed for precise detection tasks. It operates within an ambient air temperature range of -40 to +65°C and is built on a time-of-flight system that is approved for use in Europe, the UK, Australia, and New Zealand by telecom authorities. This sensor is equipped with a 5-pin Euro-style M12 connector for connectivity and belongs to the Q240R series. It offers a degree of protection rated at IP67, making it suitable for challenging environments. The supply voltage required for operation ranges from 12Vdc to 30Vdc, with a nominal voltage of 24Vdc. Its rectangular shape is constructed from a polycarbonate (PC) housing, ensuring durability. The sensor operates on a 24.050GHz to 24.250GHz transmission frequency within the ISM band and can detect objects within a sensing distance of 3.5 to 100 meters. It features an operating mode that can be set to either NO (Normally Open) or NC (Normally Closed) and includes 2 x digital outputs (PNP/NPN transistor) for versatile signaling. Additionally, it is equipped with protection functions against reverse polarity and short-circuit incidents.

Q240RA-EU-AF2LQ Related Documents

198175.pdf
