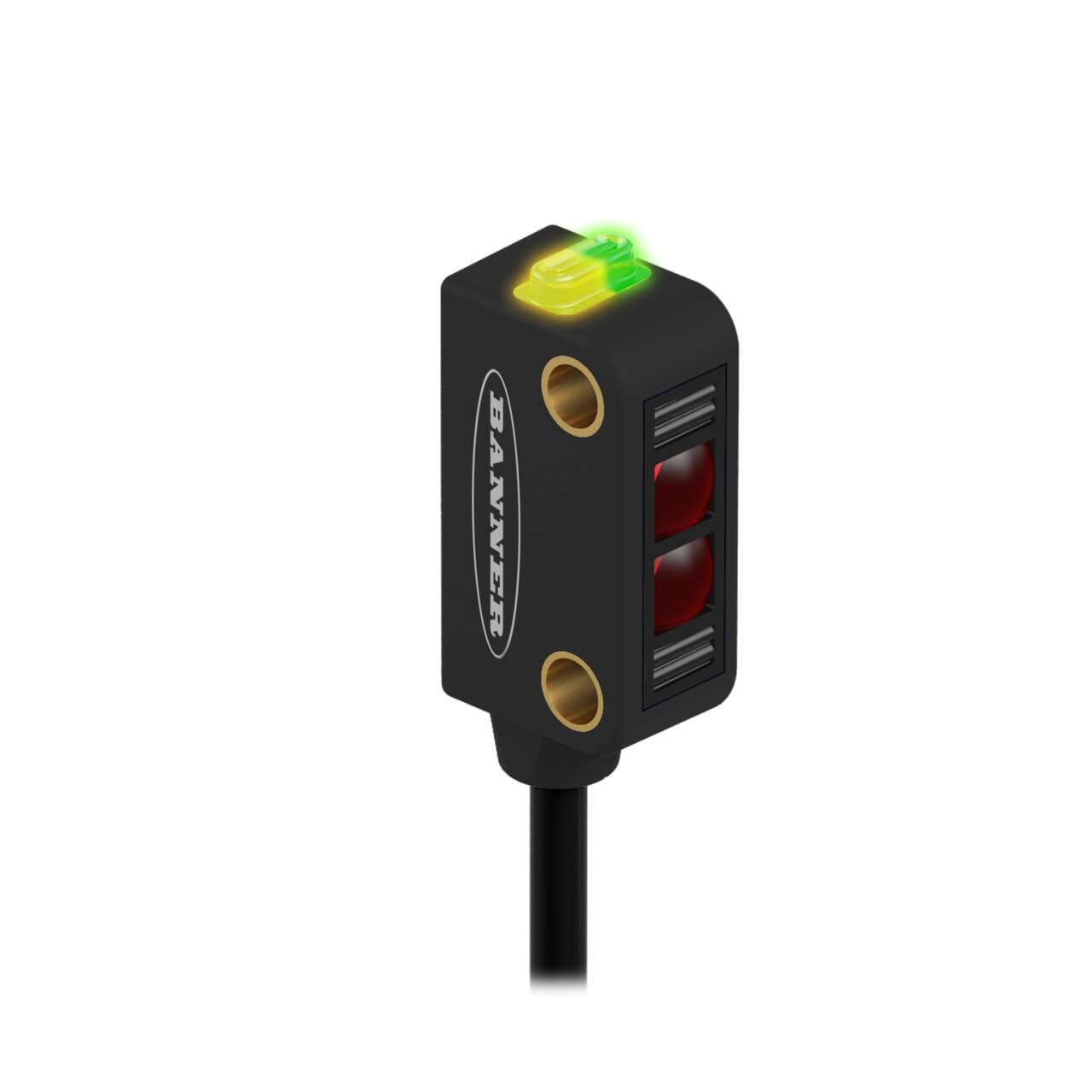

Q12RB6R
Banner
Product Lifecycle: Active
Banner Engineering Q12RB6R is a photo-electric sensor designed for through-beam system applications, functioning as the receiver component. It operates within an ambient air temperature range of -20 to +55 °C and is encased in a thermoplastic housing with a polycarbonate lens. This sensor is pre-wired with a 6.5ft / 2m cable that terminates with bare end flying leads, facilitating easy installation. It belongs to the Q12 series and offers a sensing distance of up to 2m. The Q12RB6R operates on a supply voltage ranging from 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc. It features a rectangular shape and is equipped with a visible red light source at a wavelength of 640 nm. The sensor supports Dark-ON operating mode and includes 1 x digital output (PNP/NPN transistor) with a response time of 1.3ms / 0.0013 s. It is rated with a degree of protection of IP67, indicating a high level of protection against dust and water ingress.
![Q12RB6R](/_next/image?url=https%3A%2F%2Fappstoragepublicprod.s3.us-west-1.amazonaws.com%2FPartImage%2Fa1549434-3141-48c8-976a-80eb16a8319f.jpeg&w=3840&q=75)
Banner Engineering Q12RB6R is a photo-electric sensor designed for through-beam system applications, functioning as the receiver component. It operates within an ambient air temperature range of -20 to +55 °C and is encased in a thermoplastic housing with a polycarbonate lens. This sensor is pre-wired with a 6.5ft / 2m cable that terminates with bare end flying leads, facilitating easy installation. It belongs to the Q12 series and offers a sensing distance of up to 2m. The Q12RB6R operates on a supply voltage ranging from 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc. It features a rectangular shape and is equipped with a visible red light source at a wavelength of 640 nm. The sensor supports Dark-ON operating mode and includes 1 x digital output (PNP/NPN transistor) with a response time of 1.3ms / 0.0013 s. It is rated with a degree of protection of IP67, indicating a high level of protection against dust and water ingress.
Product details
- OutputsBipolar (NPN & PNP)
- IO LinkNo
- DeviceNetNo
- Feature: Chemical ResistantNo
- Feature: AudibleNo
- Feature: Hazardous AreaNo
- Opposed Mode Emitter/ReceiverReceiver
- Feature: EncapsulatedNo
- Feature: Timing (Hold/Delay)No
- Barrel Diameter (mm)N/A
- IndicatorLEDs
- AdjustmentsN/A
- Lens MaterialPolycarbonate
- Max Op. Relative Humidity [%]95% @ 50°C
- Sensing Beam Wavelength640
- IP RatingIP67
- Number of Pins3
- Delay at Power-up (ms)120
- Repeatability (µs)175
- Special Feature: Water DetectionNo
- Special Feature: Remote TeachNo
- Max Op. Temp. (°C)55
- Special Feature: Intrinsically SafeNo
- OperationDark Operate
- Output response time (ms)1.3 ON/0.7 OFF
- Quick Disconnect TypeNo QD
- Min Op. Temp. (°C)-20
- Power Supply/Supply Voltage10-30 V dc
- ConnectionCable
- Max Sensing Distance (mm)2000
- Sensing Mode (General)Opposed
- PowerDC
- Input/OutputDiscrete
- Primary Housing MaterialThermoplastic
- Housing StyleRectangular
- Sensing Mode (Detailed)Receiver
- Sensing BeamVisible Red LED
- Cable Length (m)2
- Product series / family nameWORLD-BEAM series
- Main functionSensor (Photo-electric)
- Supply voltage (DC)10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Sensing distance2m
- Connection typePre-wired with 6.5ft / 2m cable terminated with bare end flying leads
- Response time1.3ms / 0.0013 s
- Order code / Manufacturer SKU72137
- Designthrough-beam system / opposed mode
- Sub-range nameQ12 series
- FunctionsPhoto-electric sensor receiver green LED (power ON) yellow LED (signal)
- ShapeRectangular
- Digital outputs1 x digital output (PNP/NPN transistor)
- Degree of protectionIP67
- Compliant with standard(s)cURus CE
- Primary brandBanner Engineering
- Light ColorVisible red
- Wavelength640 nm
- Ambient air temperature for operation-20...+55 °C
- Operating modeDark-ON
- Materialthermoplastic housing Polycarbonate lns.
$79.00
