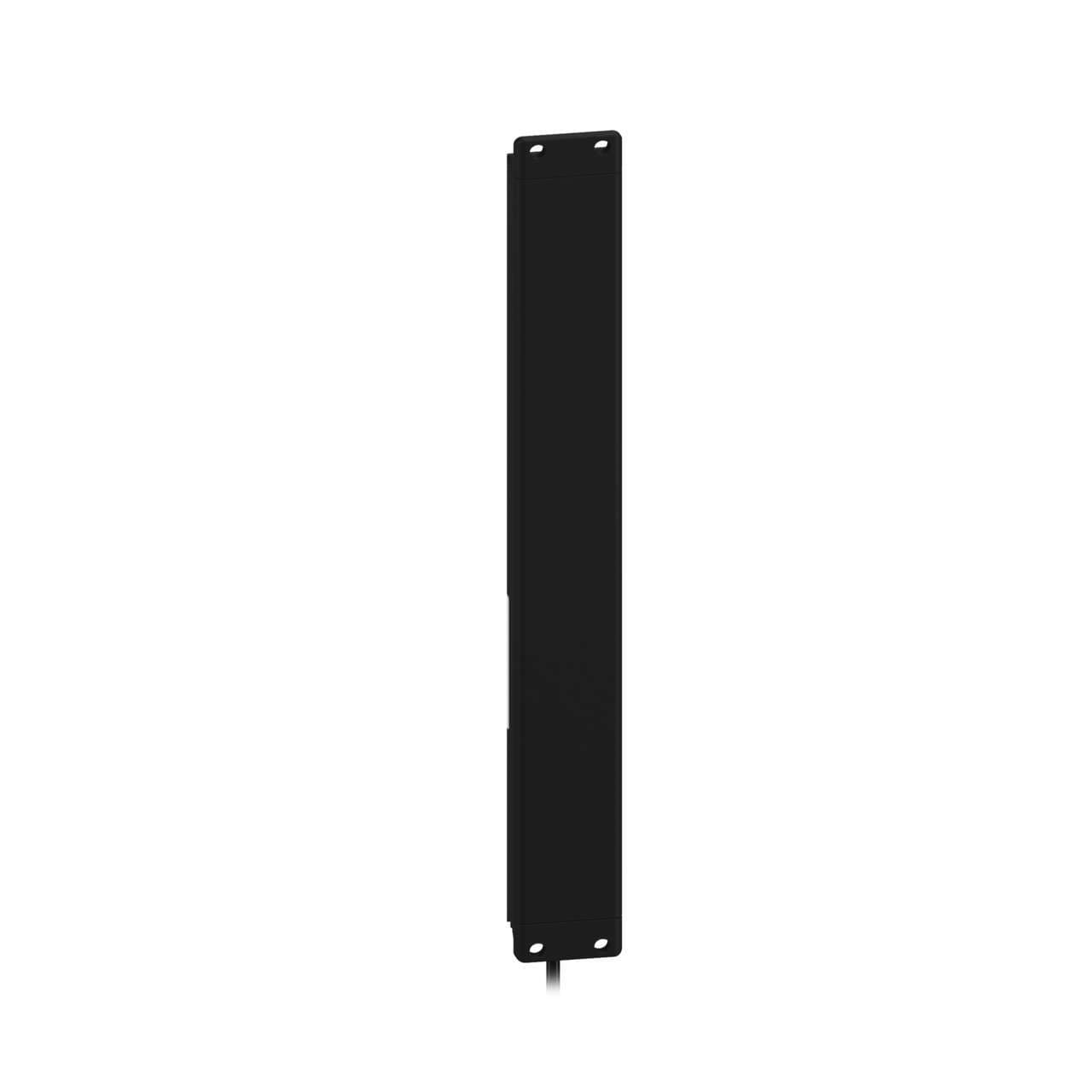

PVD225Q-71865 Banner Pick-to-Light Sensors

Name: PVD225Q-71865
Brand: Banner
Price: 538 USD
Availability: BackOrder

Part#:PVD225Q-71865

Alt. Part#:71865

Manufacturer:Banner

Category:Pick-to-Light Sensors

Product Lifecycle:Active

Product description

PVD Series: Parts Verification; 225 mm 8 channel; Range: up to 2 m; Input: 12-30 V dc; Outputs: Selectable NPN/PNP; 5-pin M12 2 m (6.5 ft) PVC Pigtail QD; Background Blocked = 0

Product Details

Weight
340.194 g
Country Of Origin
MX

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PVD225Q-71865 on Powermatic Associates is $538.00. Order now.

About the product

Banner Engineering PVD225Q-71865 is a photo-electric array sensor designed for retro-reflective mode operation. It features a pre-wired 2m / 6.5ft pigtail terminated with a 5-pin M12 connector and operates within an ambient air temperature of up to +50°C. This sensor has a rectangular shape with dimensions of 225mm in array length, 30mm in width, and 267mm in depth, and is constructed with an aluminium housing and an acrylic clear window. It offers a sensing distance of 2m / 2000mm and operates with a supply voltage range of 12Vdc-30Vdc (24Vdc nom.). The PVD225Q-71865 provides a degree of protection rated at IP62 NEMA 2 and features both NO (Normally Open) and NC (Normally Closed) operating modes. It emits light in green and red colors, with wavelengths of 525 nm and 625 nm respectively, and includes 1 x digital output (PNP/NPN transistor) with a current consumption of 88mA / 0.088 A.

PVD225Q-71865 Related Documents

113230.pdf

$538.00

Your price can be lower.
Log in or Create account to check your discount

Stock:

Select Qty:

$538.00

$538.00 each

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
