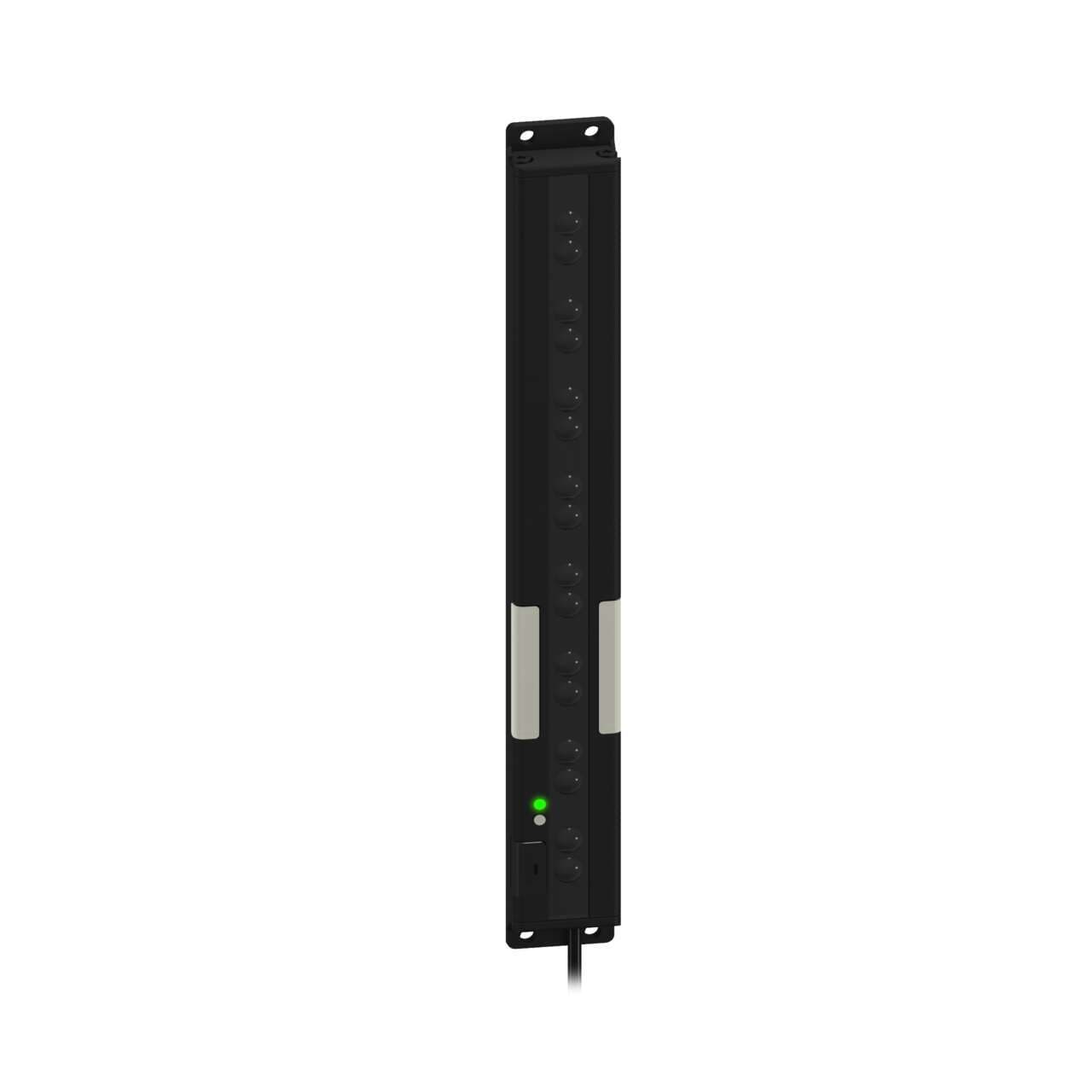

PVD225-75349 Banner Pick-to-Light Sensors

Banner Engineering PVD225-75349 is a photo-electric array sensor designed for a variety of sensing applications. It operates within an ambient air temperature of up to +50°C and features a net height of 15 mm. This sensor supports both diffuse and retro-reflective sensing modes and comes pre-wired with a 2m / 6.5ft cable that terminates with bare end flying leads. The dimensions include a 225mm array length, a net width of 30 mm, and a net depth of 267 mm, housed in an aluminium body with an acrylic clear window. It offers a degree of protection rated at IP62 NEMA 2 and requires a supply voltage of 12Vdc-30Vdc, with 24Vdc nominal. The sensing distance reaches up to 2m in retro-reflective mode and 400mm in diffuse mode, with a light color output of green and red. The beam spacing/pitch is 28.6mm. It operates in both NO (Normally Open) and NC (Normally Closed) modes, with a wavelength of 525 nm and 625 nm for green and red light, respectively. The sensor includes 1 x digital output (PNP/NPN transistor) and has a current consumption of 88mA / 0.088 A.
