PVA300P6Q W/6IN Banner Electronic Components

Name: PVA300P6Q W/6IN
Brand: Banner

PVA300P6Q W/6IN on Powermatic Associates

Part#:PVA300P6Q W/6IN

Manufacturer:Banner

Category:Electronic Components

Product Lifecycle:Active

Product description

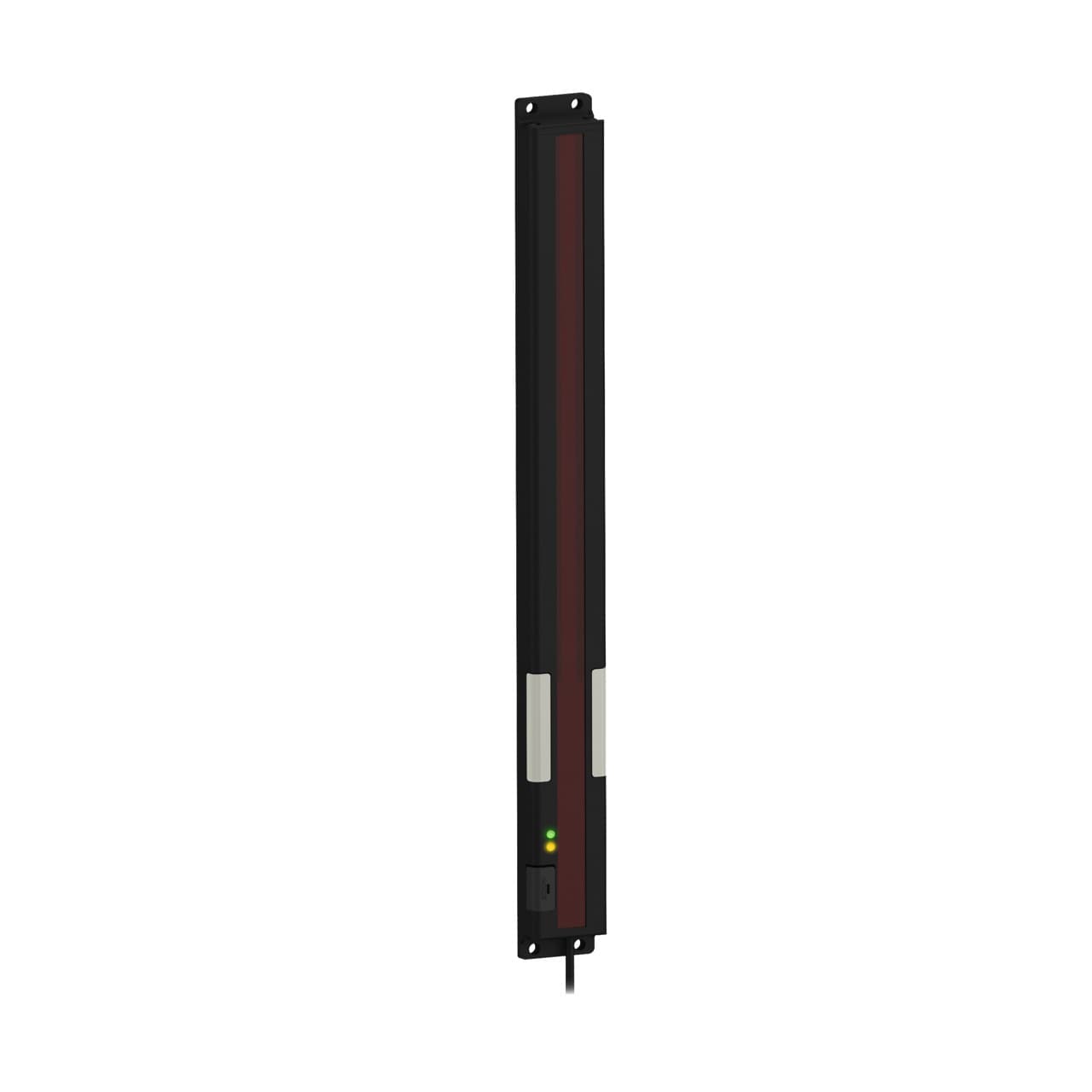

Banner Engineering PVA300P6Q W/6IN is a photo-electric array sensor designed for industrial applications, featuring a receiver alone configuration. This sensor operates within an ambient air temperature of up to +50°C and is housed in an aluminium casing with an acrylic window for durability. It has a net height of 15 mm, a width of 30 mm, and a depth of 342 mm, with a rectangular shape. The sensor is pre-wired with a 2m cable that terminates with bare end flying leads, facilitating easy installation. It offers a sensing distance of 2m (2000mm) with a green light source and a 25mm beam spacing/pitch. The PVA300P6Q W/6IN operates on a supply voltage range of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc, and has a current consumption of 62mA (0.062 A). It features a degree of protection rated at IP62 NEMA 2, ensuring protection against dust and water ingress. The sensor supports both Light-ON and Dark-ON operating modes and can be configured as Normally Open (NO) or Normally Closed (NC). It also includes 1 x digital output (PNP transistor) for signal processing.

Product Details

Sensing Mode (General)
Opposed
Product Size (mm)
Other
Max Current Color (mA)
62
Beam Spacing (mm)
25.0
Primary Window Material
Acrylic Clear
Job Light
Green
Cable Length (m)
0.15
Mounting Thread
No Thread
Connection
Pigtail QD
Max Output Response Time (ms)
52
Number of Beams
13
Feature: Audible
No
Activation Function
Optical
Animation Option 1
Dip-Switch Controlled
Number of Input Pins/Conductors
4
NEMA Type and UL Type Rating
NEMA 2
Sensing Resolution (mm)
35.0
Power Source
DC
Housing Style
Flat Mount - Array
Output Type
PNP

Sensing Array Length (mm)

300

Primary Housing Color

Black

Wireless

Actuation

Yes

Color Input Control

Individual (One wire/color, same number of colors as input wires)

Supply Voltage

12-30 V dc

Physical Dimensions (LxWxH or DxH mm)

341.4 x 30.0 x 15.0

Feature: Hazardous Area

Modbus RTU

Power

Color Option 1

Green

Input Type

Bimodal (PNP/NPN)

Max Op. Temperature (°C)

Feature: Chemical Resistant

Number of Colors / Segments

Primary Housing Material

Aluminum

Quick Disconnect Type

M12 (Euro)

Maximum Sensing Distance (mm)

2000

Environmental Rating

IP62

Pro-Editor Compatible (Discrete)

Button Operation

Momentary

Sensing Mode (Detailed)

Emitter/Receiver Pair

Color Technology

Standard LED

Operation

Normally Open/Normally Closed

Array Length (mm)

300.0

IO Link

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
