Part#:PVA300P6Q

Alt. Part#:52911

Manufacturer:Banner

Category:Optical Sensors

Product Lifecycle:Active

Product description

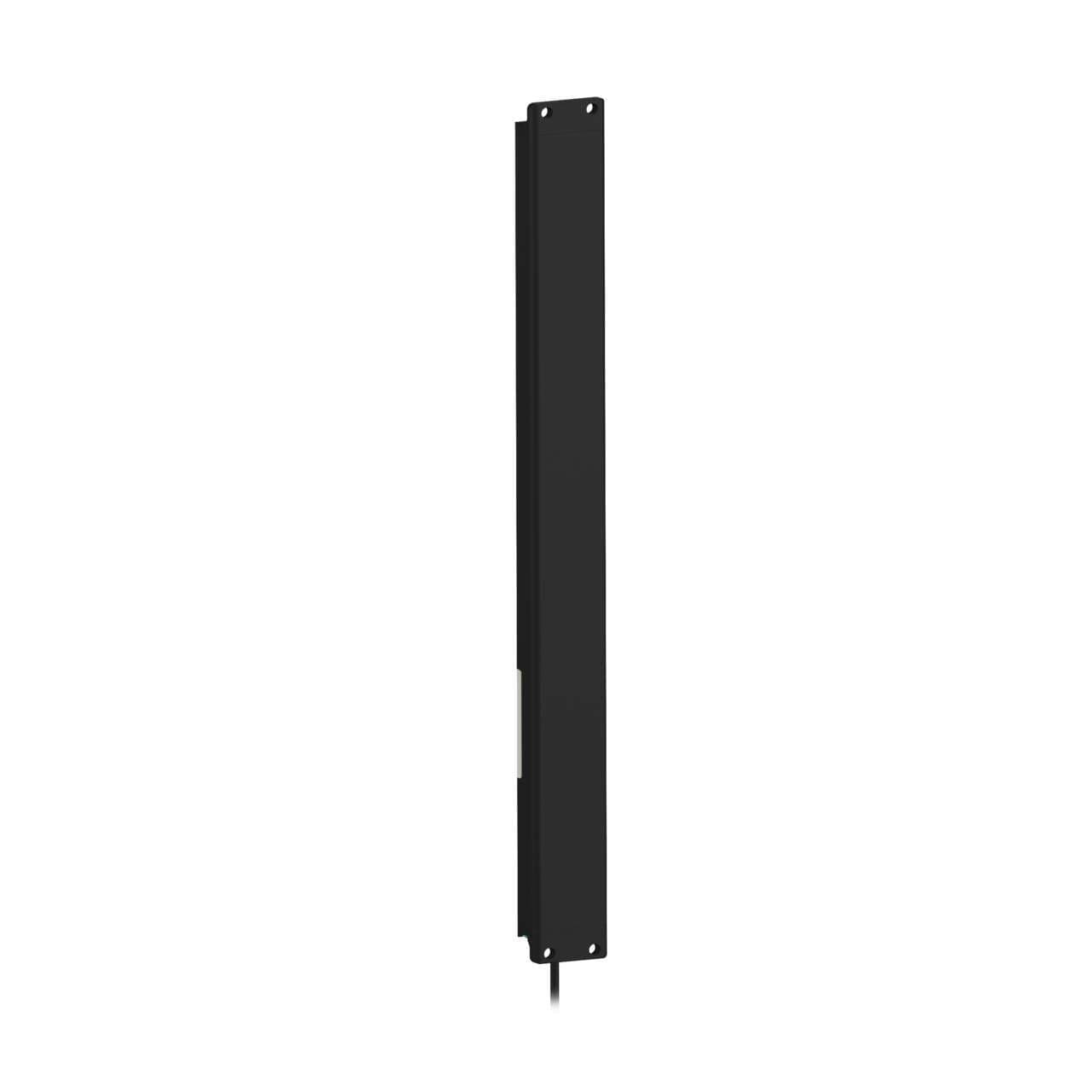

PVA Series: 300 mm Array Pair - Emitter/Receiver; Range: 2 m; Input: 12-30 V dc; Output: 1 PNP (on receiver); 2 m M12 Pigtail QD

Product Details

  • Weight
    816.4656 g
  • Country Of Origin
    US
  • Wireless
    No
  • Job Light
    Green
  • Modbus RTU
    No
  • Feature: Chemical Resistant
    No
  • Feature: Audible
    No
  • Physical Dimensions (LxWxH or DxH mm)
    341.4 x 30.0 x 15.0
  • NEMA Type and UL Type Rating
    NEMA 2
  • Environmental Rating
    IP62
  • Max Op. Temperature (°C)
    50
  • Max Output Response Time (ms)
    52
  • Operation
    Normally Open/Normally Closed
  • Output Type
    PNP
  • Sensing Array Length (mm)
    300
  • Mounting Thread
    No Thread
  • Max Current Color (mA)
    62
  • Actuation
    Yes
  • Animation Option 1
    Dip-Switch Controlled
  • Product Size (mm)
    Other
  • Primary Housing Material
    Aluminum
  • Pro-Editor Compatible (Discrete)
    No
  • IO Link
    No
  • Feature: Hazardous Area
    No
  • Sensing Resolution (mm)
    35.0
  • Primary Window Material
    Acrylic Clear
  • Button Operation
    Momentary
  • Primary Housing Color
    Black
  • Beam Spacing (mm)
    25.0
  • Number of Beams
    13
  • Maximum Sensing Distance (mm)
    2000
  • Array Length (mm)
    300.0
  • Input Type
    Bimodal (PNP/NPN)
  • Supply Voltage
    12-30 V dc
  • Number of Input Pins/Conductors
    4
  • Quick Disconnect Type
    M12 (Euro)
  • Connection
    Pigtail QD
  • Number of Colors / Segments
    1
  • Color Option 1
    Green
  • Color Technology
    Standard LED
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Activation Function
    Optical
  • Housing Style
    Flat Mount - Array
  • Sensing Mode (General)
    Opposed
  • Sensing Mode (Detailed)
    Emitter/Receiver Pair
  • Power
    DC
  • Power Source
    DC
  • Cable Length (m)
    0.15

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PVA300P6Q on Powermatic Associates is $1,092.00. Order now.

About the product

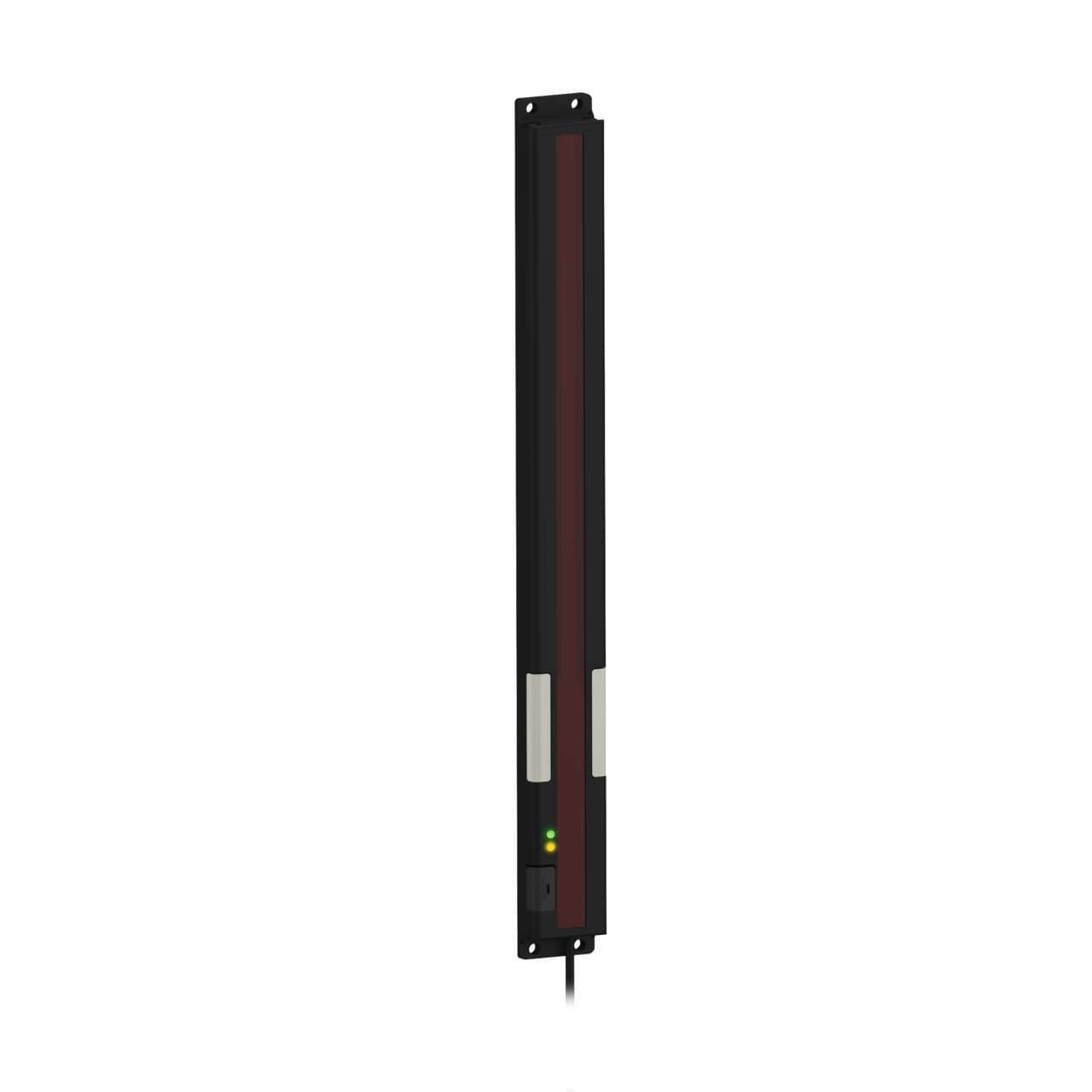

Banner Engineering PVA300P6Q is a photo-electric array sensor designed for a variety of applications requiring precise detection. This sensor features an emitter and receiver pair with a sensing distance of up to 2 meters and operates within an ambient air temperature of up to +50°C. It has a rectangular shape with dimensions of 300mm in array length, 30mm in width, and a net depth of 342mm, housed in aluminum with an acrylic window for durability. The PVA300P6Q is pre-wired with a 15" (381mm) pigtail terminated with a 4-pin M12 connector for easy installation. It operates on a supply voltage range of 12Vdc to 30Vdc, with 24Vdc as the nominal voltage. The sensor offers a degree of protection rated at IP62 NEMA 2, ensuring protection against dust and dripping water. It features a green light color with a 25mm beam spacing/pitch for clear visibility. The operating modes include Light-ON, Dark-ON, Normally Open (NO), and Normally Closed (NC), along with 1 x digital output (PNP transistor) for versatile application use.

PVA300P6Q Related Documents

52088.pdf
