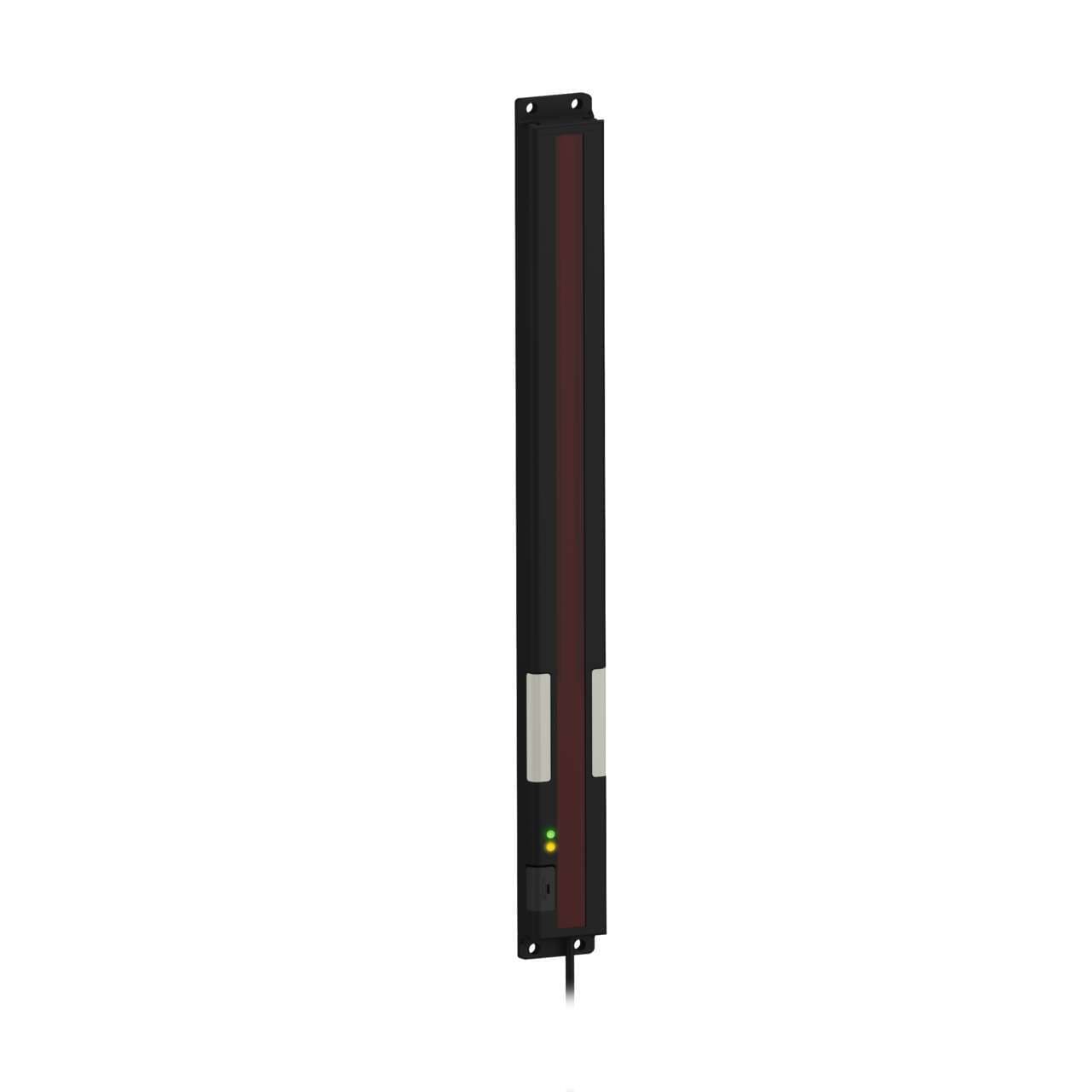

Part#:PVA300N6E

Alt. Part#:51927

Manufacturer:Banner

Category:Optical Sensors

Product Lifecycle:Active

Product description

PVA Series: 300 mm Array - Emitter; Range: 2 m; Input: 12-30 V dc; Output: Not Applicable; 2 m (6.5 ft) Integral Cable

Product Details

  • Weight
    367.40952 g
  • Country Of Origin
    MX
  • Job Light
    Green
  • Pro-Editor Compatible (Discrete)
    No
  • Wireless
    No
  • Modbus RTU
    No
  • IO Link
    No
  • Feature: Audible
    No
  • Feature: Chemical Resistant
    No
  • Feature: Hazardous Area
    No
  • Sensing Resolution (mm)
    35.0
  • Primary Window Material
    Acrylic Clear
  • Button Operation
    Momentary
  • Primary Housing Color
    Black
  • NEMA Type and UL Type Rating
    NEMA 2
  • Max Op. Temperature (°C)
    50
  • Environmental Rating
    IP62
  • Number of Beams
    13
  • Physical Dimensions (LxWxH or DxH mm)
    341.4 x 30.0 x 15.0
  • Beam Spacing (mm)
    25.0
  • Array Length (mm)
    300.0
  • Sensing Array Length (mm)
    300
  • Input Type
    Bimodal (PNP/NPN)
  • Maximum Sensing Distance (mm)
    2000
  • Max Output Response Time (ms)
    52
  • Supply Voltage
    12-30 V dc
  • Number of Input Pins/Conductors
    4
  • Color Option 1
    Green
  • Max Current Color (mA)
    62
  • Animation Option 1
    Dip-Switch Controlled
  • Connection
    Cable
  • Color Technology
    Standard LED
  • Product Size (mm)
    Other
  • Number of Colors / Segments
    1
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Mounting Thread
    No Thread
  • Sensing Mode (Detailed)
    Emitter
  • Primary Housing Material
    Aluminum
  • Cable Length (m)
    2
  • Activation Function
    Optical
  • Actuation
    Yes
  • Power
    DC
  • Power Source
    DC
  • Sensing Mode (General)
    Opposed
  • Housing Style
    Flat Mount - Array
  • Main function
    Sensor (Array)
  • Connection type
    Pre-wired bare end flying leads
  • Degree of protection
    IP62 NEMA 2
  • Product series / family name
    PVA
  • Supply voltage (DC)
    12-30Vdc (12Vdc-24Vdc nom.)
  • Digital outputs
    4 x digital outputs (12-30Vdc; NPN)
  • Supply voltage
    (DC) 12-30 V
  • Sensing distance
    2m / 2000 mm
  • Mounting mode
    Surface Pole
  • Technology used in component
    LED
  • Length (mm)
    (array) 300 mm
  • Net Height (mm)
    (sensing height) 11.8" / 300 mm
  • Primary brand
    Banner Engineering
  • Frame color
    Black
  • Material
    Acrylic Clear (window) Aluminum (housing)
  • Current consumption
    62mA / 0.062 A
  • Distance
    (beam spacing) 25mm
  • Functions
    Flat-mount array optical sensor for error-proofing of bin handpicking operations - through-beam sensing emitter only
  • Compliant with standard(s)
    CE cULus Listed
  • Ambient air temperature for operation
    0...+50 °C
  • Maximum temperature
    50 °C
  • Visual position indicator
    green LED (power ON) red LED (frequency selected)
  • Length (m)
    (cable) 2 m
  • Order code / Manufacturer SKU
    51927
  • Light Color
    Green

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PVA300N6E on Powermatic Associates is $533.00. Order now.

About the product

Banner Engineering PVA300N6E is a photo-electric array sensor designed for a variety of applications. This sensor operates within an ambient air temperature of up to +50°C and features a net height of 15 mm. It comes pre-wired with a 2m pigtail that terminates with a 4-pin M12 connector. The dimensions of this sensor include a 300mm array length, with a rectangular shape, and it is housed in aluminium with an acrylic window. The net width and depth are 30 mm and 342 mm, respectively. It offers a sensing distance of 2m (2000mm) with a green light color and a 25mm beam spacing/pitch. The PVA300N6E is protected to IP62 NEMA 2 standards, requires a supply voltage of 12Vdc-30Vdc (24Vdc nominal), and has a current consumption of 62mA (0.062 A). Additionally, it features 1 x digital output (NPN transistor) for signaling.
