PVA300N6RQ Banner Optical Sensors

PVA300N6RQ on Powermatic Associates
Banner
  • PVA300N6RQ
  • PVA300N6RQ

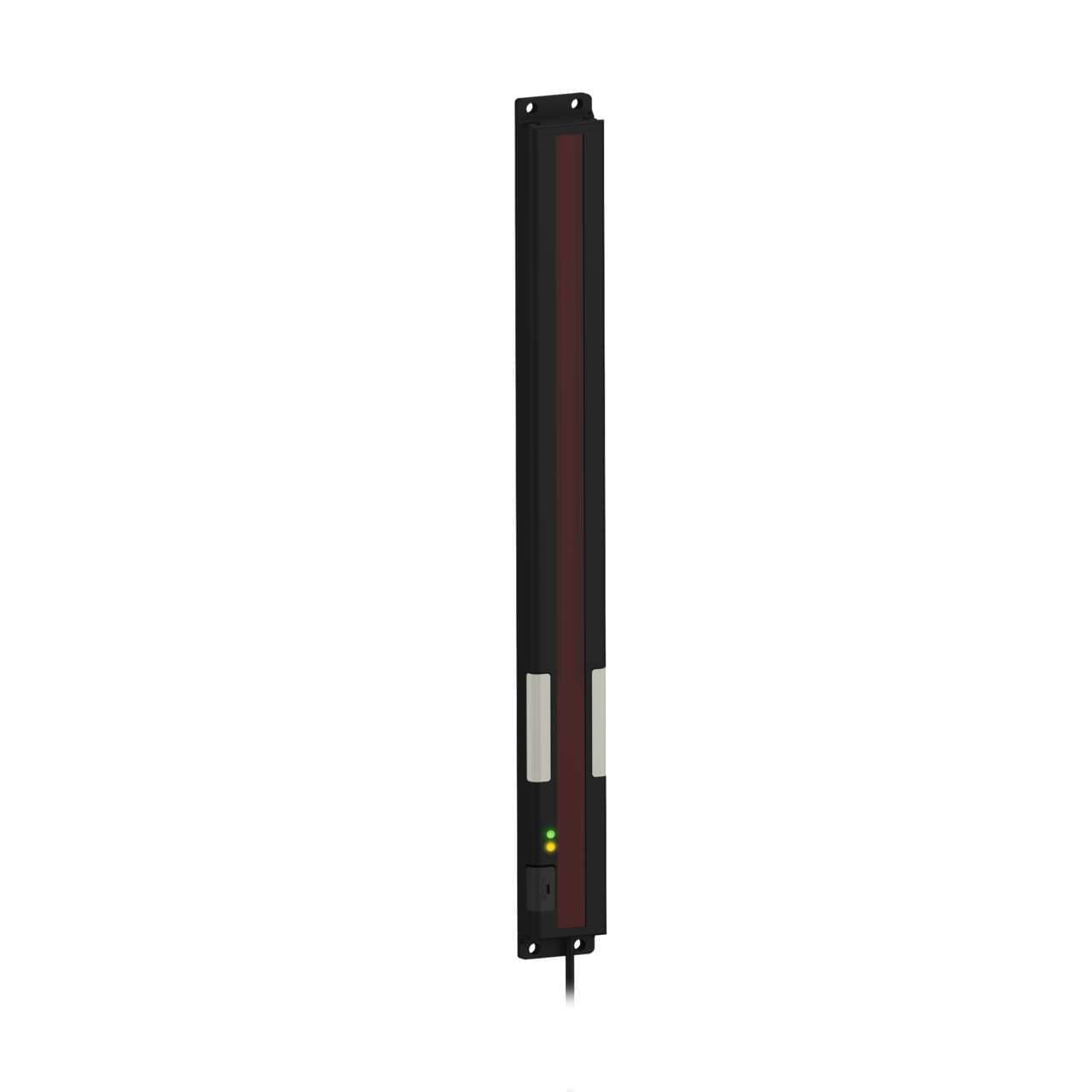

Part#:PVA300N6RQ

Alt. Part#:51923

Manufacturer:Banner

Category:Optical Sensors

Product Lifecycle:Active

Product description

PVA Series: 300 mm Array - Receiver; Range: 2 m; Input: 12-30 V dc; Output: 1 NPN Programmable for LO/DO; M12 Pigtail QD

Product Details

  • Weight
    366.955928 g
  • Country Of Origin
    MX
  • Pro-Editor Compatible (Discrete)
    No
  • Job Light
    Green
  • Modbus RTU
    No
  • Wireless
    No
  • Feature: Audible
    No
  • Feature: Chemical Resistant
    No
  • IO Link
    No
  • Feature: Hazardous Area
    No
  • Button Operation
    Momentary
  • Primary Housing Color
    Black
  • Sensing Resolution (mm)
    35.0
  • Primary Window Material
    Acrylic Clear
  • Max Op. Temperature (°C)
    50
  • NEMA Type and UL Type Rating
    NEMA 2
  • Environmental Rating
    IP62
  • Number of Beams
    13
  • Beam Spacing (mm)
    25.0
  • Array Length (mm)
    300.0
  • Sensing Array Length (mm)
    300
  • Physical Dimensions (LxWxH or DxH mm)
    341.4 x 30.0 x 15.0
  • Maximum Sensing Distance (mm)
    2000
  • Output Type
    NPN
  • Input Type
    Bimodal (PNP/NPN)
  • Max Output Response Time (ms)
    52
  • Number of Input Pins/Conductors
    4
  • Operation
    Normally Open/Normally Closed
  • Supply Voltage
    12-30 V dc
  • Max Current Color (mA)
    62
  • Quick Disconnect Type
    M12 (Euro)
  • Connection
    Pigtail QD
  • Color Option 1
    Green
  • Product Size (mm)
    Other
  • Number of Colors / Segments
    1
  • Color Technology
    Standard LED
  • Animation Option 1
    Dip-Switch Controlled
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Sensing Mode (Detailed)
    Receiver
  • Mounting Thread
    No Thread
  • Actuation
    Yes
  • Activation Function
    Optical
  • Primary Housing Material
    Aluminum
  • Sensing Mode (General)
    Opposed
  • Housing Style
    Flat Mount - Array
  • Power Source
    DC
  • Power
    DC
  • Cable Length (m)
    2

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PVA300N6RQ on Powermatic Associates is $546.00. Order now.

About the product

Banner Engineering PVA300N6RQ is a photo-electric array sensor designed for a variety of applications requiring precise detection. This sensor operates within an ambient air temperature of up to +50°C and is housed in an aluminium casing with an acrylic window for durability. It features a rectangular shape with dimensions of 300mm in array length, 30mm in width, and a net depth of 342mm. The PVA300N6RQ is pre-wired with a 15" (381mm) pigtail that terminates with a 4-pin M12 connector, facilitating easy installation. It offers a sensing distance of up to 2m (2000mm) with a beam spacing/pitch of 25mm and emits green light for detection purposes. This sensor is powered by a supply voltage ranging from 12Vdc to 30Vdc, with 24Vdc as the nominal voltage. It includes one digital output (PNP transistor) and is protected by an IP62 NEMA 2 rated enclosure, ensuring its operation in various environmental conditions.
