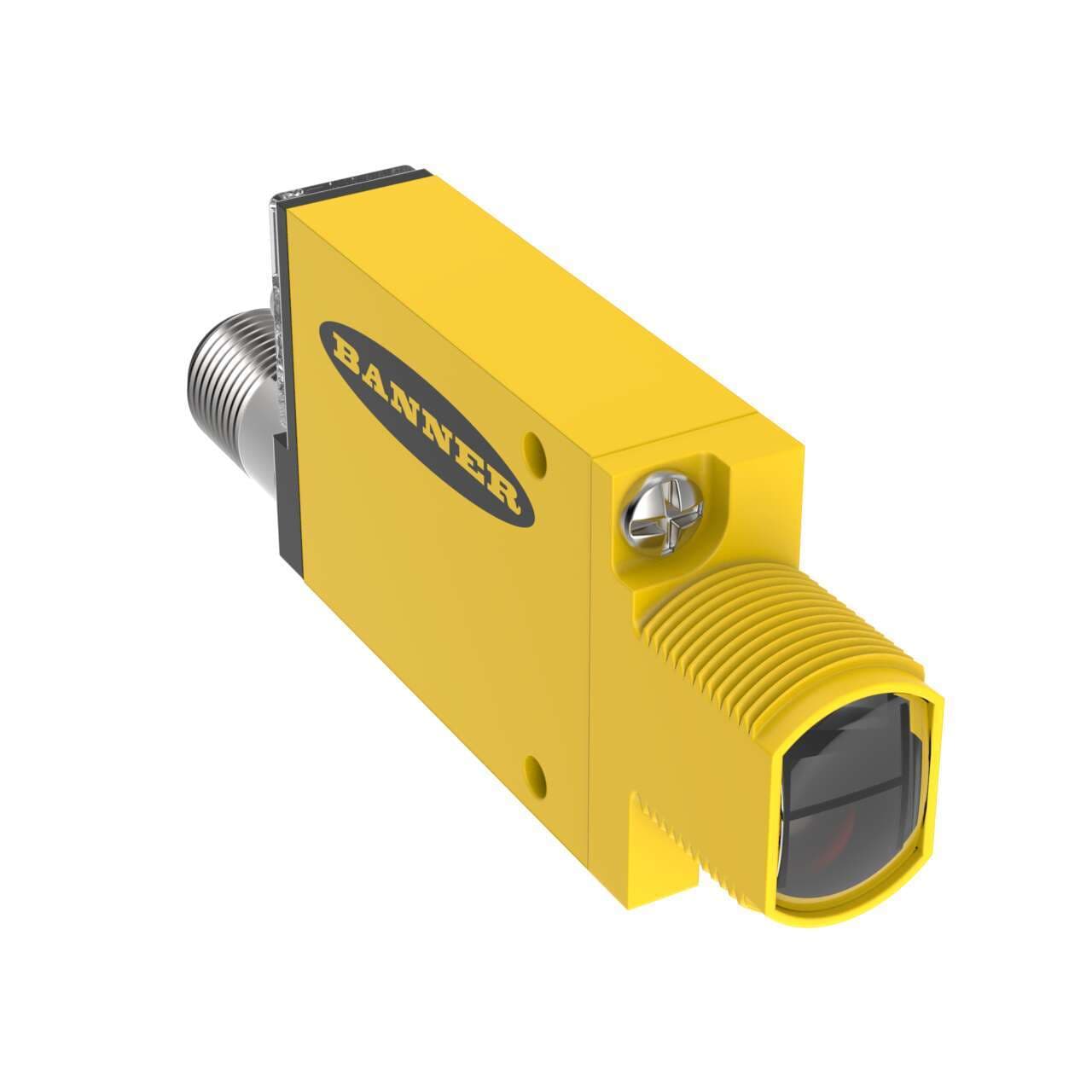

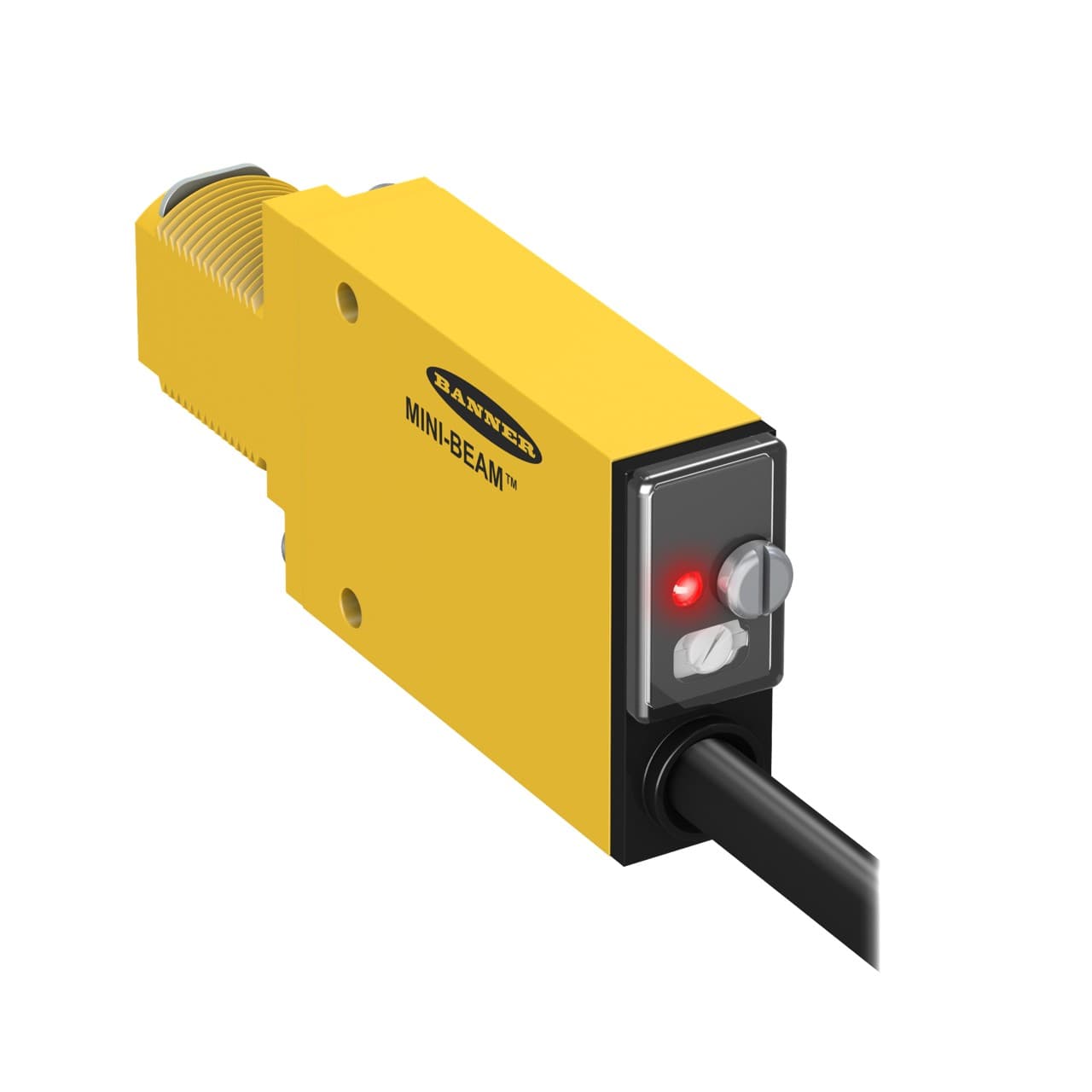

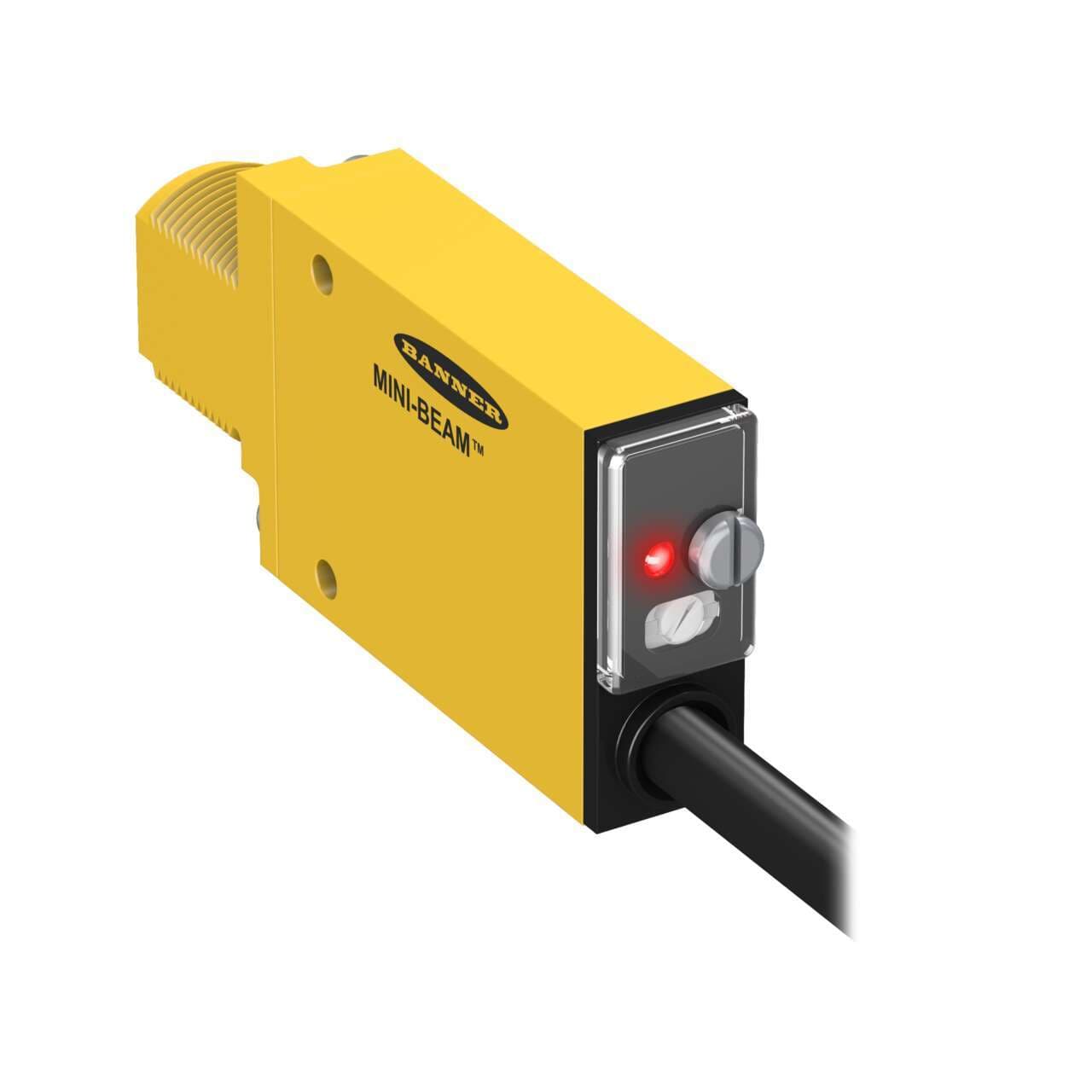

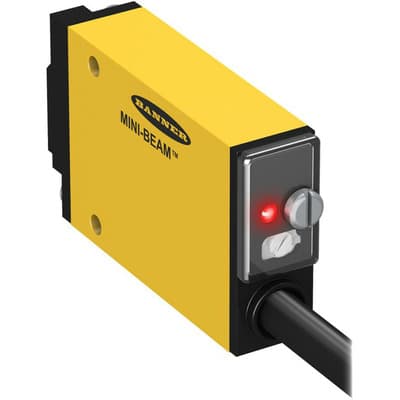

MIAD9LV W/30 Banner Proximity Sensors

Name: MIAD9LV W/30
Brand: Banner

Banner MIAD9LV W/30 MINI-BEAM NAMUR: Retro; Range: 5 m; Input: 5-15 V dc; Output: NAMUR; 9 m (30 ft) Cable

Part#:MIAD9LV W/30

Manufacturer:Banner

Alt. Part#:38026

Product Lifecycle:Active

Get a quick Quote!

MINI-BEAM NAMUR: Retro; Range: 5 m; Input: 5-15 V dc; Output: NAMUR; 9 m (30 ft) Cable

About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the MIAD9LV W/30 Banner price in the box on the right side or send a quick quote.

Product Details

Weight
571.52592 g
Country Of Origin
US
IO Link
No
DeviceNet
No
Feature: Chemical Resistant
No
Feature: Audible
No
Feature: Hazardous Area
Yes
Feature: Timing (Hold/Delay)
No
Feature: Encapsulated
Yes
Opposed Mode Emitter/Receiver
N/A
Indicator
LEDs
Barrel Diameter (mm)
18
Adjustments
Potentiometer
Lens Material
Acrylic
Max Op. Relative Humidity [%]
90% @ 50°C
NEMA Rating
NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, 13
IP Rating
IP67
Repeatability (µs)
N/A
Number of Pins
2
Delay at Power-up (ms)
N/A

Special Feature: Water Detection

Special Feature: Remote Teach

Special Feature: Intrinsically Safe

Yes

Output response time (ms)

Quick Disconnect Type

No QD

Max Op. Temp. (°C)

Operation

Light/Dark Operate

Min Op. Temp. (°C)

-40

Outputs

Constant Current

Connection

Cable

Power Supply/Supply Voltage

5-15 V dc

Power

Cable Length (m)

Primary Housing Material

Thermoplastic

Input/Output

Discrete

Housing Style

Rectangular w/M18 Mount

Max Sensing Distance (mm)

5000

Sensing Mode (Detailed)

Non-Polarized

Sensing Mode (General)

Retroreflective

Sensing Beam

Visible Red LED

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

MIAD9LV W/30 Description

Banner Engineering MIAD9LV W/30 is a photo-electric sensor designed for versatile applications, featuring a retro-reflective mode with potentiometer adjustment. It comes with an M18 threaded mount for secure installation and is equipped with a pre-wired 30ft / 9m cable that terminates with bare end flying leads for easy connection. This sensor operates within an ambient air temperature range of -40 to +70°C and is housed in a thermoplastic casing with an acrylic lens. It belongs to the MIAD9 NAMUR series and offers a sensing distance of up to 5m with visible red light for detection. The MIAD9LV W/30 operates on a supply voltage of 5Vdc to 15Vdc, with a nominal voltage of 12Vdc, and features a rectangular shape. It provides a single digital output (NAMUR) and has a quick response time of 5ms. This sensor is designed to operate in both Light-ON and Dark-ON modes and offers a high degree of protection with ratings of IP67, NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, and 13, ensuring durability and resilience in various environmental conditions.
