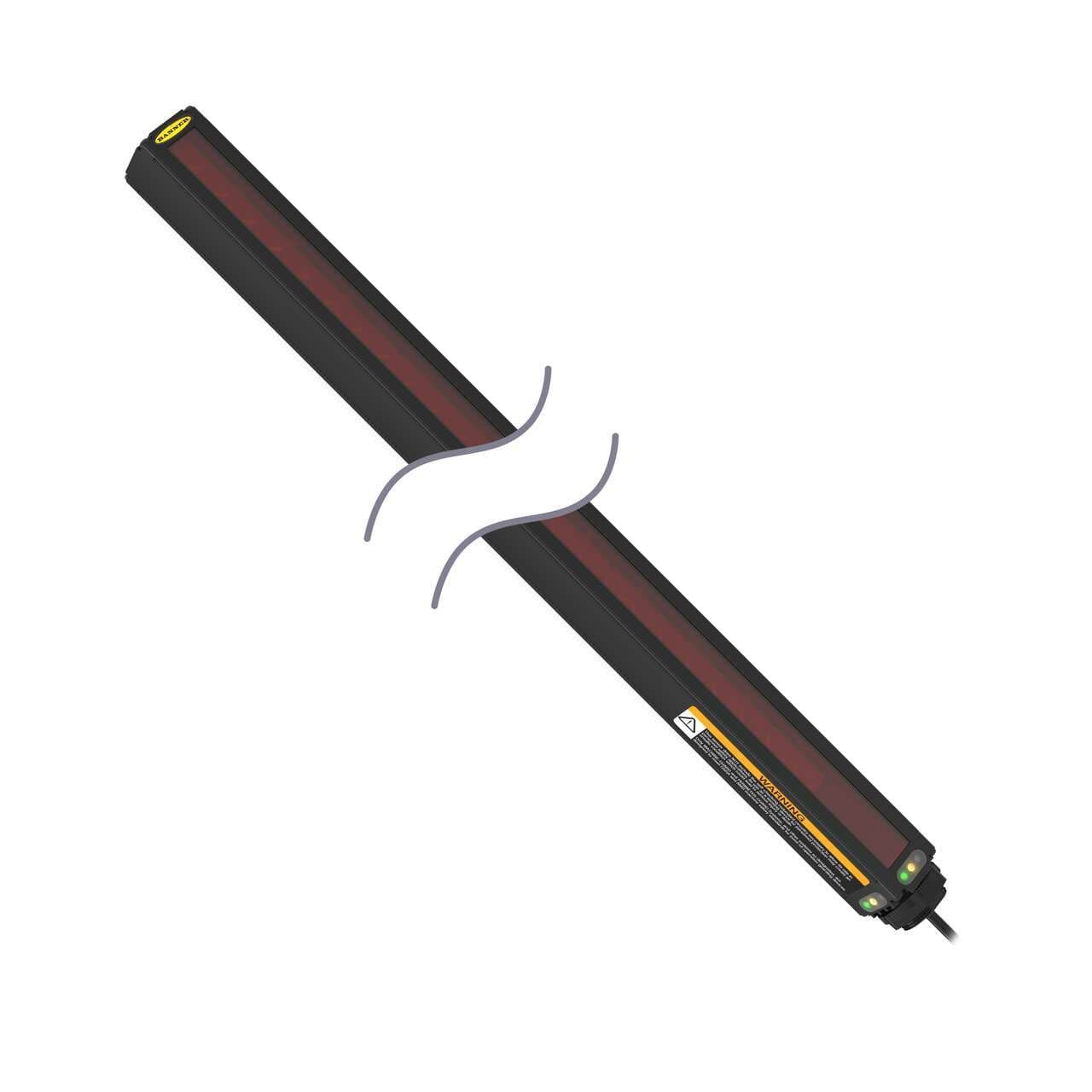

MAHR38A Banner Measurement Sensors

Name: MAHR38A
Brand: Banner
Price: 4090 USD
Availability: BackOrder

Part#:MAHR38A

Alt. Part#:62667

Manufacturer:Banner

Category:Measurement Sensors

Product Lifecycle:Active

Product description

High-Res. MINI-ARRAY Receiver: 975 mm (38.4 in); Beam Spacing: 2.5 mm (0.1 in); Total Beams = 384; System Range (matching emitter sold separately) = 0.4-1.8 m; System Requires 2 Quick-Disconnect Cables

Product Details

Weight
1886.94272 g
Country Of Origin
MX
Power Supply
12V dc
Max Relative Humidity
95%
Emitter/Receiver Range (m)
0.38 - 1.8
Discrete Output
N/A
Minimum Object Sensitivity (mm)
2.5
Max Temp (°C)
50
Housing Length (mm)
1049
Array Length (mm)
975
Number of Beams
384
Analog Output
N/A
RS-485
No
RS-232
No
Modbus RTU
No
DeviceNet
No
IO Link
No
Beam Spacing
2.5 mm
Primary Housing Material
Aluminum
Device Type
Three-Piece

Power

Sensing Mode (Detailed)

Receiver

Product series / family name

A-GAGE series

Primary brand

Banner Engineering

Supply voltage (DC)

12Vdc

Sensing distance

38cm...1.8m

Degree of protection

IP65 NEMA 4 NEMA 13

Ambient air temperature for operation

0...+50 °C

Sub-range name

MINI-ARRAY

Resolution

2.5mm

Main function

Sensor (Edge)

Functions

High-resolution measuring light screen array edge/profile receiver green LED (power ON) yellow LED (output state)

Dimensions

384mm array length

Compliant with standard(s)

cURus CE

Distance

2.5mm beam spacing/pitch

Order code / Manufacturer SKU

62667

Connection type

Pre-wired with 6" / 150mm cable terminated with bare end flying leads

Material

Aluminium housing

Detectable object size

2.5mm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of MAHR38A on Powermatic Associates is $4,090.00. Order now.

About the product

Banner Engineering MAHR38A, part of the MINI-ARRAY series, is a high-resolution measuring light screen array edge/profile sensor designed for precise detection with a 384mm array length. This sensor features a rectangular shape with an aluminium housing and operates on a 12Vdc supply voltage. It is equipped with a pre-wired 6" / 150mm cable terminated with bare end flying leads for connectivity. The MAHR38A offers a 2.5mm beam spacing/pitch, ensuring accurate sensing with a resolution and detectable object size of 2.5mm. It has a sensing distance range of 38cm to 1.8m and includes 1 x digital output (PNP/NPN transistor; 30Vdc max.; 150mA max.). This sensor operates within an ambient air temperature range of 0 to +50°C and is protected by an IP65, NEMA 4, and NEMA 13 rated enclosure, making it suitable for various industrial applications.

MAHR38A Related Documents

64118.pdf
