Part#:MAHR64A

Manufacturer:Banner

Alt. Part#:62671

Product Lifecycle:Active

Get a quick Quote!

High-Res. MINI-ARRAY Receiver: 1626 mm (64.0 in); Beam Spacing: 2.5 mm (0.1 in); Total Beams = 640; System Range (matching emitter sold separately) = 0.4-1.8 m; System Requires 2 Quick-Disconnect Cables

About the manufacturer: Banner is one of the manufacturers that offers Measurement Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the MAHR64A Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    2794.12672 g
  • Country Of Origin
    MX
  • Max Relative Humidity
    95%
  • Power Supply
    12V dc
  • Emitter/Receiver Range (m)
    0.38 - 1.8
  • Number of Beams
    640
  • Array Length (mm)
    1626
  • Discrete Output
    N/A
  • Housing Length (mm)
    1703
  • Minimum Object Sensitivity (mm)
    2.5
  • Max Temp (°C)
    50
  • Sensing Mode (Detailed)
    Receiver
  • IO Link
    No
  • Analog Output
    N/A
  • RS-485
    No
  • RS-232
    No
  • Modbus RTU
    No
  • Beam Spacing
    2.5 mm
  • DeviceNet
    No
  • Device Type
    Three-Piece
  • Power
    DC
  • Primary Housing Material
    Aluminum
  • Resolution
    2.5mm
  • Primary brand
    Banner Engineering
  • Distance
    2.5mm beam spacing/pitch
  • Connection type
    Pre-wired with 6" / 150mm cable terminated with bare end flying leads
  • Order code / Manufacturer SKU
    62671
  • Dimensions
    1626mm array length
  • Sub-range name
    MINI-ARRAY
  • Functions
    High-resolution measuring light screen array edge/profile receiver green LED (power ON) yellow LED (output state)
  • Material
    Aluminium housing
  • Detectable object size
    2.5mm
  • Main function
    Sensor (Edge)
  • Sensing distance
    38cm...1.8m
  • Degree of protection
    IP65 NEMA 4 NEMA 13
  • Compliant with standard(s)
    cURus CE
  • Product series / family name
    A-GAGE series
  • Supply voltage (DC)
    12Vdc
  • Ambient air temperature for operation
    0...+50 °C

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

MAHR64A Description

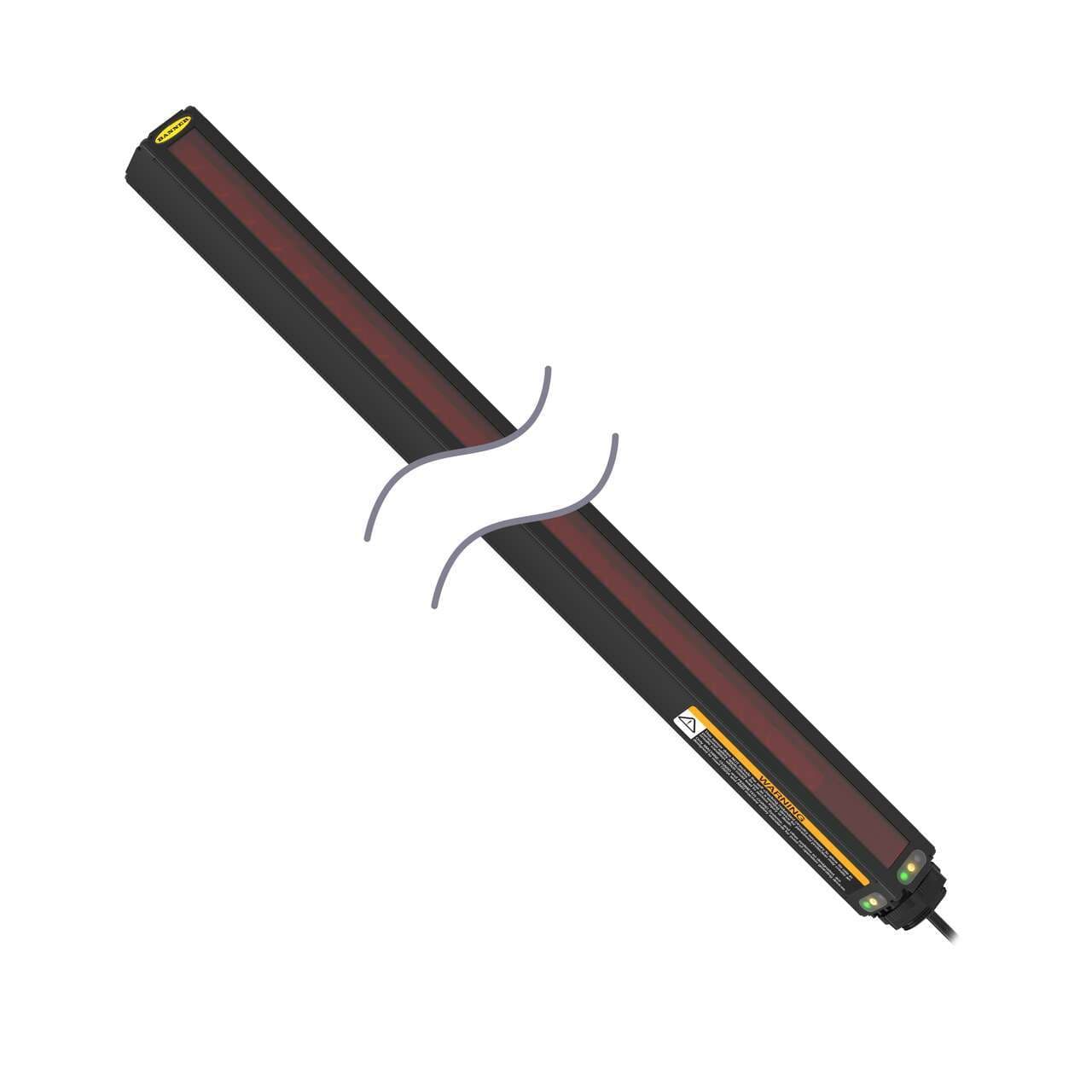

Banner Engineering MAHR64A, part of the MINI-ARRAY series, is a high-resolution measuring light screen array edge/profile sensor designed for precise detection tasks. This sensor features a rectangular shape with an aluminium housing and an array length of 1626mm. It operates with a beam spacing/pitch of 2.5mm and is pre-wired with a 6" / 150mm cable terminated with bare end flying leads. The MAHR64A requires a 12Vdc supply voltage and can function within an ambient air temperature range of 0 to +50°C. It offers a degree of protection rated at IP65, NEMA 4, and NEMA 13, ensuring durability in various environments. The sensing distance ranges from 38cm to 1.8m, and it includes 1 x digital output (PNP/NPN transistor; 30Vdc max.; 150mA max.) for connectivity. With a resolution and detectable object size of 2.5mm, this sensor is capable of identifying small objects within its operational range.

Related documents MAHR64A Specs

MAHR64A 64118.pdf
