MAHR45A Banner Measurement Sensors

MAHR45A on Powermatic Associates
Banner

Part#:MAHR45A

Alt. Part#:62668

Manufacturer:Banner

Category:Measurement Sensors

Product Lifecycle:Active

Product description

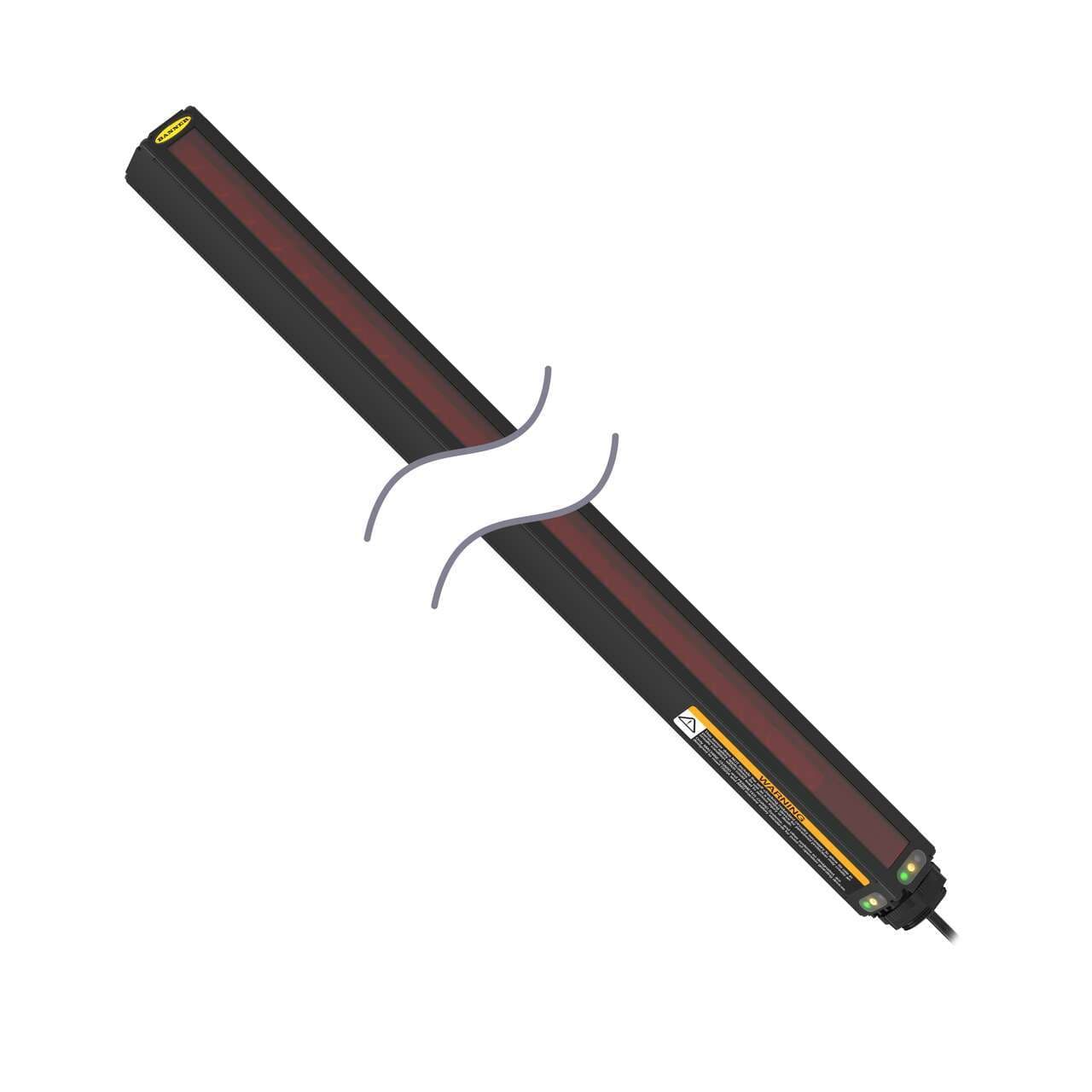

High-Res. MINI-ARRAY Receiver: 1138 mm (44.8 in); Beam Spacing: 2.5 mm (0.1 in); Total Beams = 448; System Range (matching emitter sold separately) = 0.4-1.8 m; System Requires 2 Quick-Disconnect Cables

Product Details

  • Weight
    1977.66112 g
  • Country Of Origin
    MX
  • Power Supply
    12V dc
  • Max Relative Humidity
    95%
  • Emitter/Receiver Range (m)
    0.38 - 1.8
  • Number of Beams
    448
  • Discrete Output
    N/A
  • Housing Length (mm)
    1215
  • Minimum Object Sensitivity (mm)
    2.5
  • Max Temp (°C)
    50
  • Array Length (mm)
    1138
  • Analog Output
    N/A
  • RS-232
    No
  • RS-485
    No
  • Modbus RTU
    No
  • Power
    DC
  • Beam Spacing
    2.5 mm
  • Device Type
    Three-Piece
  • DeviceNet
    No
  • IO Link
    No
  • Primary Housing Material
    Aluminum
  • Sensing Mode (Detailed)
    Receiver
  • Product series / family name
    A-GAGE series
  • Sensing distance
    38cm...1.8m
  • Material
    Aluminium housing
  • Primary brand
    Banner Engineering
  • Supply voltage (DC)
    12Vdc
  • Degree of protection
    IP65 NEMA 4 NEMA 13
  • Compliant with standard(s)
    cURus CE
  • Main function
    Sensor (Edge)
  • Functions
    High-resolution measuring light screen array edge/profile receiver green LED (power ON) yellow LED (output state)
  • Resolution
    2.5mm
  • Ambient air temperature for operation
    0...+50 °C
  • Sub-range name
    MINI-ARRAY
  • Dimensions
    1138mm array length
  • Order code / Manufacturer SKU
    62668
  • Distance
    2.5mm beam spacing/pitch
  • Connection type
    Pre-wired with 6" / 150mm cable terminated with bare end flying leads
  • Detectable object size
    2.5mm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of MAHR45A on Powermatic Associates is $4,668.00. Order now.

MAHR45A Description

Banner Engineering MAHR45A, part of the MINI-ARRAY series, is a high-resolution measuring light screen array edge/profile sensor designed for precise detection with a receiver alone. This sensor features an array length of 1138mm and is housed in a rectangular, aluminium casing. It operates with a beam spacing/pitch of 2.5mm and is pre-wired with a 6" / 150mm cable that terminates with bare end flying leads. The MAHR45A requires a 12Vdc supply voltage and can function within an ambient air temperature range of 0 to +50°C. It is rated with a degree of protection IP65 NEMA 4 NEMA 13, ensuring durability in various environments. The sensing distance of this sensor ranges from 38cm to 1.8m, and it includes 1 x digital output (PNP/NPN transistor; 30Vdc max.; 150mA max.) for connectivity. With a resolution and detectable object size of 2.5mm, it is capable of identifying small objects within its sensing range.

MAHR45A Related Documents

64118.pdf.pdf
