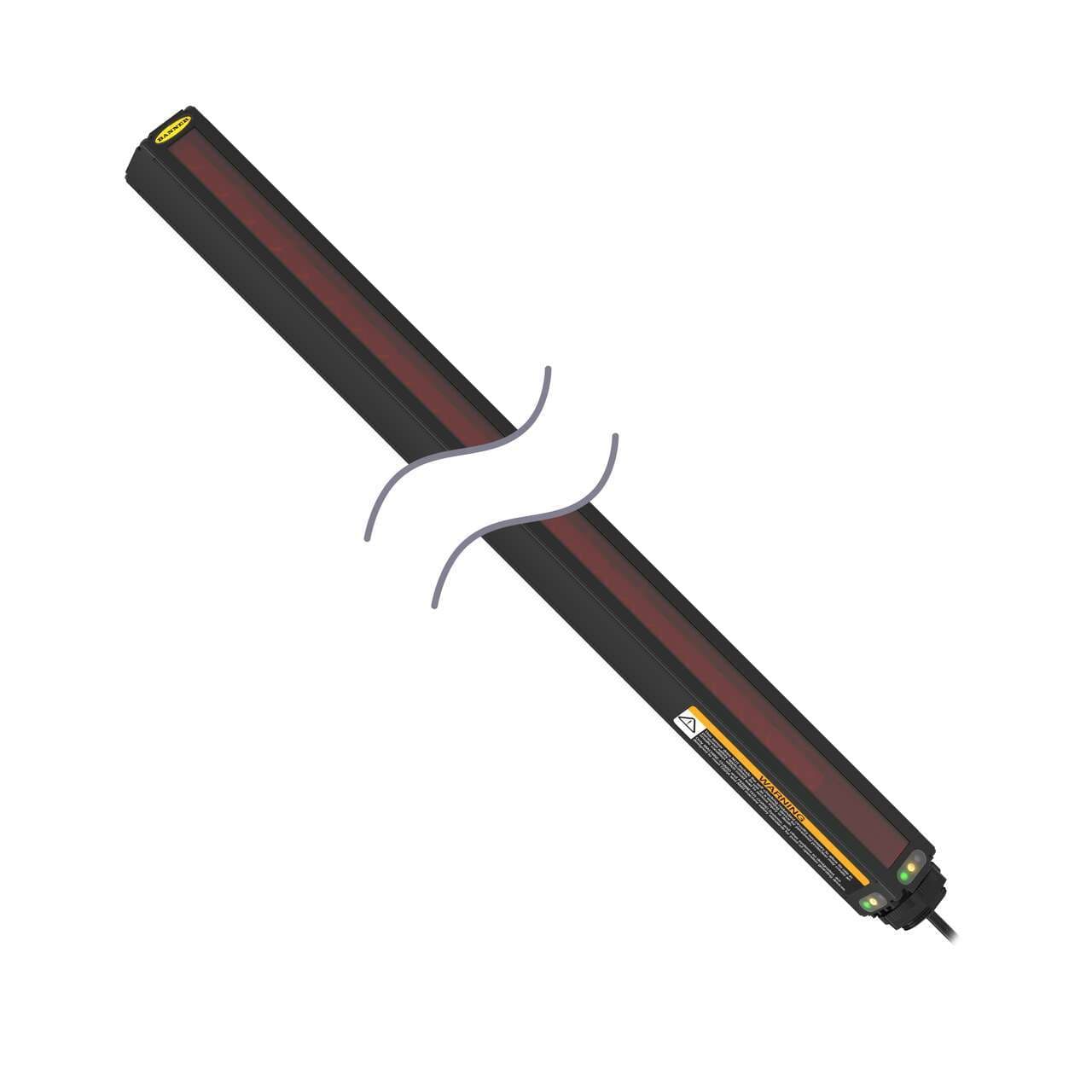

MAHR77A Banner Measurement Sensors
Part#:MAHR77A
Alt. Part#:62673
Manufacturer:Banner
Category:Measurement Sensors
Product Lifecycle:Active
Product description
High-Res. MINI-ARRAY Receiver: 1951 mm (76.8 in); Beam Spacing: 2.5 mm (0.1 in); Total Beams = 768; System Range (matching emitter sold separately) = 0.4-1.8 m; System Requires 2 Quick-Disconnect Cables
Product Details
- Weight 3202.35952 g
- Country Of Origin MX
- Power Supply 12V dc
- Max Relative Humidity 95%
- Emitter/Receiver Range (m) 0.38 - 1.8
- Discrete Output N/A
- Array Length (mm) 1951
- Max Temp (°C) 50
- Housing Length (mm) 2028
- Minimum Object Sensitivity (mm) 2.5
- Number of Beams 768
- Analog Output N/A
- RS-485 No
- Primary Housing Material Aluminum
- DeviceNet No
- IO Link No
- RS-232 No
- Modbus RTU No
- Beam Spacing 2.5 mm
- Device Type Three-Piece
- Sensing Mode (Detailed) Receiver
- Power DC
- Functions High-resolution measuring light screen array edge/profile receiver green LED (power ON) yellow LED (output state)
- Order code / Manufacturer SKU 62673
- Sub-range name MINI-ARRAY
- Resolution 2.5mm
- Degree of protection IP65 NEMA 4 NEMA 13
- Detectable object size 2.5mm
- Primary brand Banner Engineering
- Distance 2.5mm beam spacing/pitch
- Dimensions 1951mm array length
- Main function Sensor (Edge)
- Supply voltage (DC) 12Vdc
- Connection type Pre-wired with 6" / 150mm cable terminated with bare end flying leads
- Ambient air temperature for operation 0...+50 °C
- Product series / family name A-GAGE series
- Sensing distance 38cm...1.8m
- Material Aluminium housing
- Compliant with standard(s) cURus CE
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of MAHR77A on Powermatic Associates is $7,572.00. Order now.
About the product
Banner Engineering MAHR77A, part of the MINI-ARRAY series, is a high-resolution measuring light screen array designed for edge/profile detection, functioning as a receiver alone. This sensor features a 1951mm array length with a 2.5mm beam spacing/pitch, housed in a rectangular, aluminium casing. It is pre-wired with a 6" / 150mm cable terminated with bare end flying leads for connectivity. The MAHR77A operates on a 12Vdc supply voltage and can function within an ambient air temperature range of 0 to +50°C. It offers a degree of protection rated at IP65, NEMA 4, and NEMA 13, suitable for various industrial environments. The sensing distance ranges from 38cm to 1.8m, and it includes 1 x digital output (PNP/NPN transistor; 30Vdc max.; 150mA max.) for signal processing. With a resolution and detectable object size of 2.5mm, this sensor is capable of identifying small objects within its operational range.
