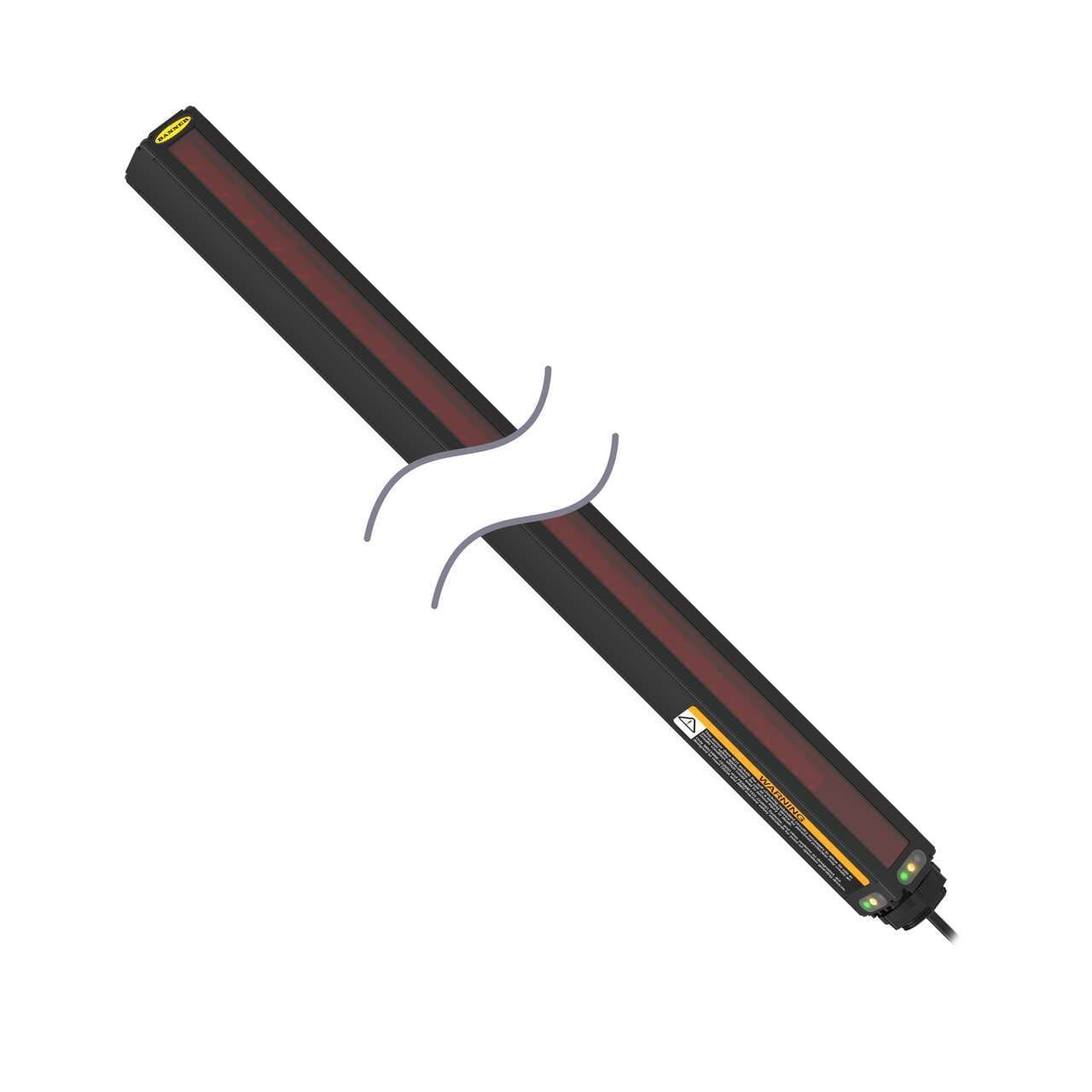

MAHR32A Banner Measurement Sensors
Part#:MAHR32A
Alt. Part#:62666
Manufacturer:Banner
Category:Measurement Sensors
Product Lifecycle:Active
Product description
High-Res MINI-ARRAY Receiver: 813 mm (32.0 in); Beam Spacing: 2.5 mm (0.1 in); Total Beams = 320; System Range (matching emitter sold separately) = 0.4-1.8 m; System Requires 2 Quick-Disconnect Cables
Product Details
- Weight 1560.35648 g
- Country Of Origin MX
- Power Supply 12V dc
- Max Relative Humidity 95%
- Emitter/Receiver Range (m) 0.38 - 1.8
- Minimum Object Sensitivity (mm) 2.5
- Discrete Output N/A
- Number of Beams 320
- Array Length (mm) 813
- Analog Output N/A
- Max Temp (°C) 50
- Housing Length (mm) 887
- Sensing Mode (Detailed) Receiver
- DeviceNet No
- IO Link No
- Modbus RTU No
- RS-485 No
- Beam Spacing 2.5 mm
- Primary Housing Material Aluminum
- Device Type Three-Piece
- Power DC
- RS-232 No
- Supply voltage (DC) 12Vdc
- Material Aluminium housing
- Compliant with standard(s) cURus CE
- Main function Sensor (Edge)
- Functions High-resolution measuring light screen array edge/profile receiver green LED (power ON) yellow LED (output state)
- Degree of protection IP65 NEMA 4 NEMA 13
- Ambient air temperature for operation 0...+50 °C
- Primary brand Banner Engineering
- Sub-range name MINI-ARRAY
- Sensing distance 38cm...1.8m
- Connection type Pre-wired with 6" / 150mm cable terminated with bare end flying leads
- Detectable object size 2.5mm
- Distance 2.5mm beam spacing/pitch
- Dimensions 813mm array length
- Product series / family name A-GAGE series
- Resolution 2.5mm
- Order code / Manufacturer SKU 62666
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of MAHR32A on Powermatic Associates is $3,503.00. Order now.
About the product
Banner Engineering MAHR32A is a sensor from the MINI-ARRAY series designed for high-resolution measuring light screen array edge/profile detection, functioning as a receiver alone. This part features an 813mm array length within a rectangular, aluminium housing. It offers a 2.5mm beam spacing/pitch and is pre-wired with a 6" / 150mm cable terminated with bare end flying leads. The MAHR32A operates on a 12Vdc supply voltage and can function within an ambient air temperature range of 0 to +50°C. It is equipped with a degree of protection rated at IP65, NEMA 4, and NEMA 13, ensuring durability in various environments. The sensing distance of this sensor spans from 38cm to 1.8m, and it includes 1 x digital output (PNP/NPN transistor; 30Vdc max.; 150mA max.) for connectivity. With a resolution and detectable object size of 2.5mm, it is capable of identifying small objects within its operational range.
