M18TUP8Q Banner Temperature Sensors

M18TUP8Q on Powermatic Associates
Banner

Part#:M18TUP8Q

Manufacturer:Banner

Alt. Part#:74916

Product Lifecycle:Active

Get a quick Quote!

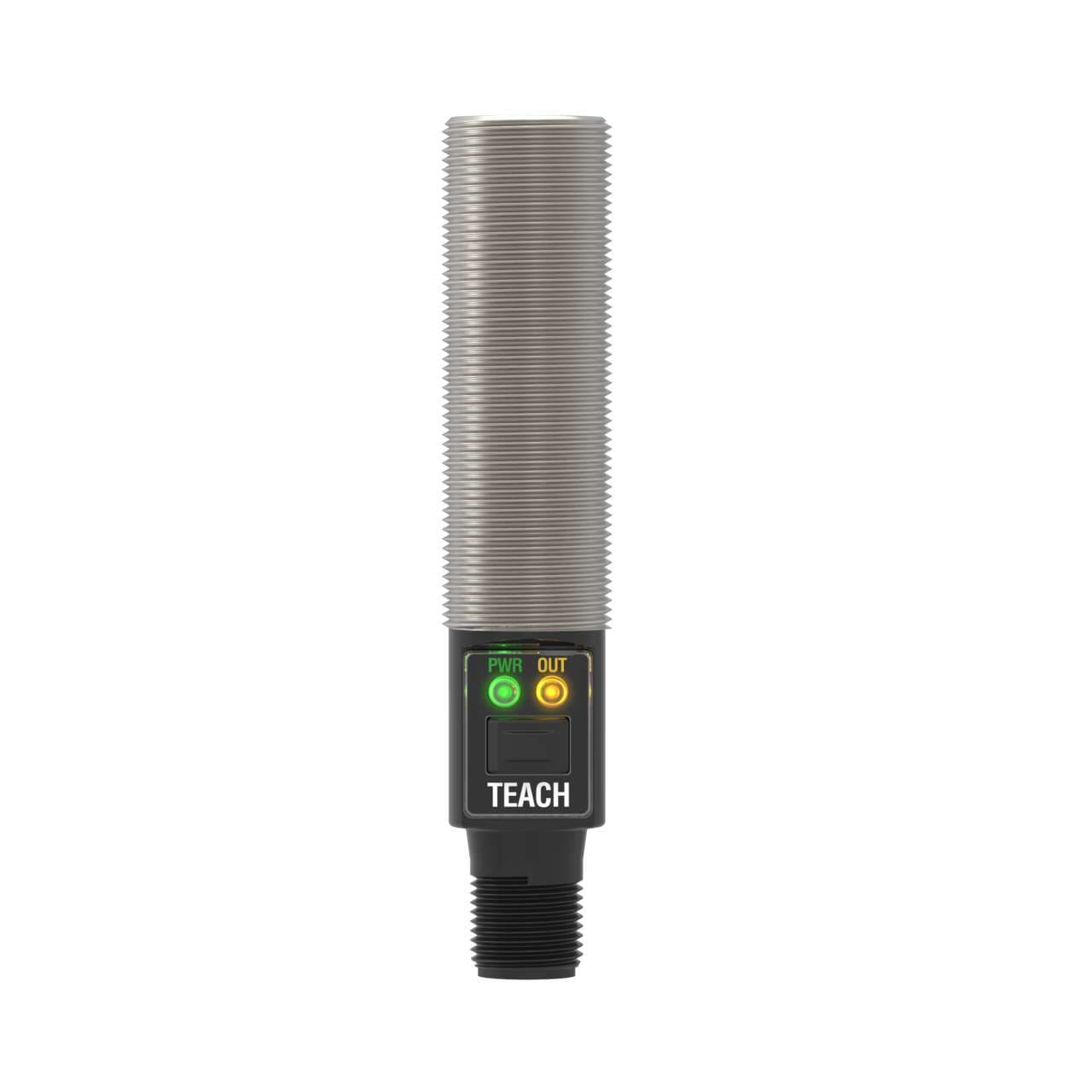

M18T Series: Temperature Sensor; 8: 1 Integrated Lens; Output: Analog 0-10 V; PNP Alarm; 5-pin M12 Integral QD

About the manufacturer: Banner is one of the manufacturers that offers Temperature Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the M18TUP8Q Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    99.79024 g
  • Country Of Origin
    US
  • Profibus
    No
  • 1-wire Serial Interface
    Yes
  • RS-422
    No
  • Wireless
    No
  • SSI
    No
  • RS-485
    No
  • RS-232
    No
  • IO Link
    No
  • PROFINET
    No
  • Feature: Health/ Marginal Signal Output
    Yes
  • Feature: Quick Disconnect
    Yes
  • Feature: Pump-in/ Pump-out
    No
  • Feature: Timing (Hold/Delay)
    No
  • Barrel Diameter (mm)
    18
  • Feature: Remote Teach
    Yes
  • Analog Linearity (mm)
    From 0 °C to +50 °C: ± 2 °C From +50 °C to +300 °C: ±1 °C or ±1%, whichever is greater
  • Min Operating Temperature (°C)
    -20
  • Warm-up Time (minutes)
    5
  • NEMA Rating
    NEMA 6
  • Analog Resolution/Discrete Repeatability
    ± 1% of measurement, or ± 1 °C, whichever is greater
  • Common Ethernet Protocol
    No
  • Feature: Chemical Resistant
    Yes
  • Max Operating Temperature (°C)
    70
  • Storage Temperature (°C)
    -25 to 75
  • Remote Teach and Laser Control Input Impedence
    3 kΩ
  • Minimum Window Size (mm)
    3 °C
  • Minimum Response Time (ms)
    25
  • Number of Pins
    5
  • Delay at Power-up (ms)
    1500
  • Adjustments
    Push Button; Remote Teach
  • IP Rating
    IP67
  • Analog Voltage Output Rating
    2.5 kΩ minimum load resistance
  • Power Supply
    12-30 V dc
  • Quick Disconnect Type
    M12 (Euro)
  • Analog Output Configuration
    0-10 V
  • Connection
    Integral QD
  • Indicator
    LED(s)
  • Primary Housing Material
    Stainless Steel
  • Device Type
    Sensor
  • Housing Style
    Barrel
  • Sensing Mode (Detailed)
    Diffuse
  • Sensing Mode (General)
    Proximity
  • Input/Output
    Analog
  • PC Configurable
    Yes
  • Power
    DC
  • Sensing Beam
    N/A
  • Main function
    Sensor (Temperature)
  • Design
    integrated optical lns. analog voltage output
  • Primary brand
    Banner Engineering
  • Supply voltage (DC)
    12Vdc-30Vdc (24Vdc nom.)
  • Thread size
    M18
  • Analog outputs
    1 x analog output (0-10Vdc)
  • Ambient air temperature for operation
    -20...+70 °C
  • Compliant with standard(s)
    cURus CE
  • Sub-range name
    M18T series
  • Temperature
    0...+300°C measurement range
  • Digital outputs
    1 x digital output (PNP transistor) (alarm)
  • Material
    stainless steel (304) housing ABS / polycarbonate p.button housing santoprene (p. button) Integrated lens Acrylic lightpipes
  • Degree of protection
    IP67 NEMA 6
  • Product series / family name
    T-GAGE series
  • Light Color
    Infrared (IR)
  • Response time
    75ms / 0.075 s
  • Connection type
    Pre-equipped with 5-pin Euro-style M12 connector
  • Order code / Manufacturer SKU
    74916
  • Shape
    Cylindrical threaded/barrel
  • Functions
    Non-contact Infrared (IR) temperature sensor/transmitter green LED (power ON) amber LED (output state) red LED (teach active) TEACH mode

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

M18TUP8Q Description

Banner Engineering M18TUP8Q is a non-contact Infrared (IR) temperature sensor/transmitter belonging to the M18T series. This sensor features an integrated optical lens and operates in TEACH mode. It emits infrared light and is designed with an M18 cylindrical threaded/barrel shape. The housing is made of Stainless steel 304, with the push button housing constructed from ABS / Polycarbonate (PC) and Thermoplastic vulcanizate (TPV) for the push button. The integrated lens is made of Acrylic, and light pipes enhance its functionality. It comes pre-equipped with a 5-pin Euro-style M12 connector for easy connection. The sensor operates on a supply voltage of 12Vdc-30Vdc, with a nominal voltage of 24Vdc. It can measure temperatures ranging from 0 to +300°C and is suitable for operation in ambient air temperatures from -20 to +70 °C. The M18TUP8Q offers a high degree of protection with an IP67 NEMA 6 rating. It provides 1 x analog output (0-10Vdc) and 1 x digital output (PNP transistor) for alarms. The response time of this sensor is 75ms / 0.075 s, ensuring timely temperature readings.

Related documents M18TUP8Q Specs

M18TUP8Q 123698.pdf

Manufacturer warranty

$499.00
