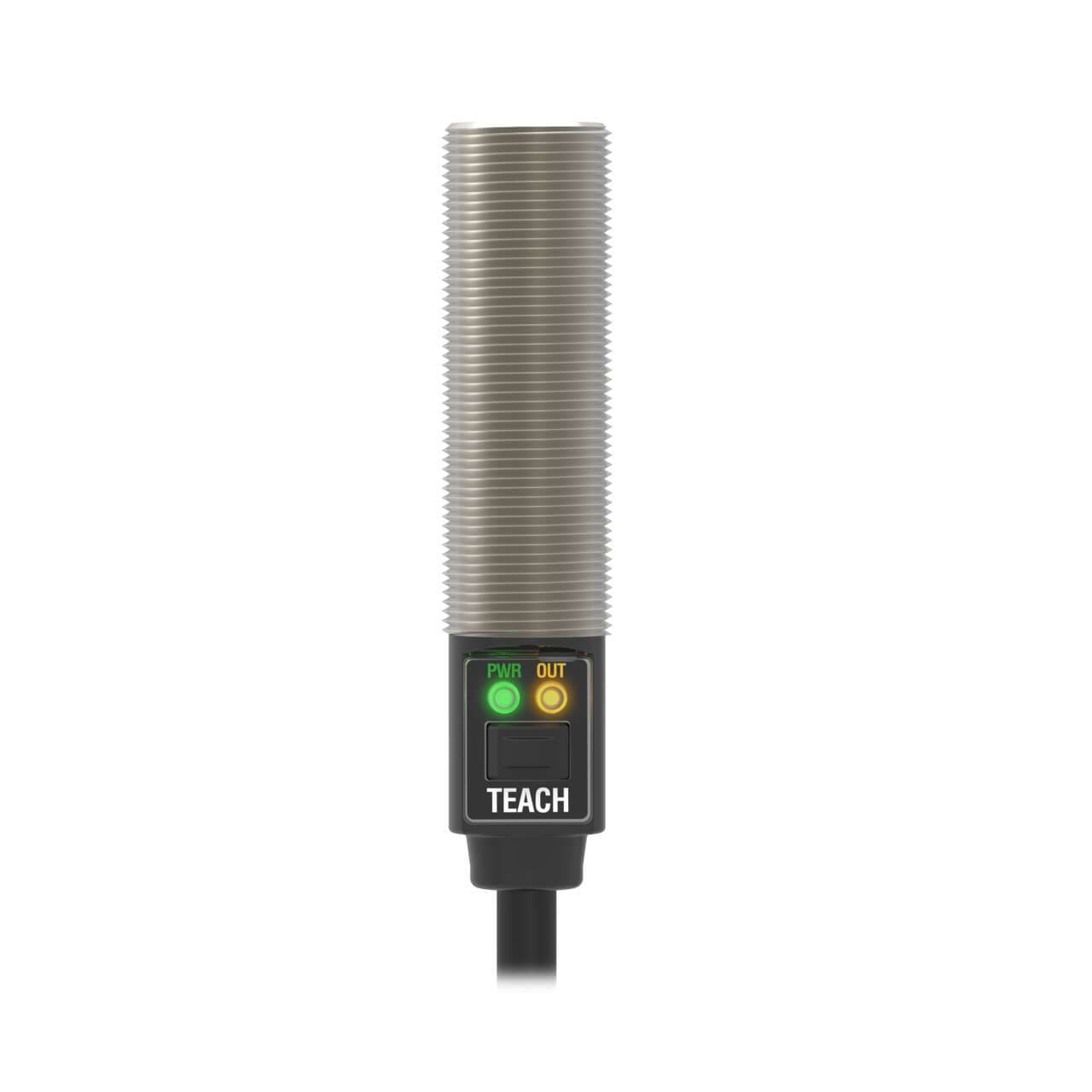

M18TIP8 Banner Temperature Sensors

Product Details

• Weight
  204.1164 g
• Country Of Origin
  US
• Profibus
  No
• 1-wire Serial Interface
  Yes
• Wireless
  No
• PROFINET
  No
• IO Link
  No
• Feature: Health/ Marginal Signal Output
  Yes
• Feature: Quick Disconnect
  Yes
• Analog Linearity (mm)
  From 0 °C to +50 °C: ± 2 °C From +50 °C to +300 °C: ±1 °C or ±1%, whichever is greater
• Analog Current Output Rating
  1 kΩ max @24 V dc, max load resistance = [(Vcc-4 V)/0.02 A] Ω
• SSI
  No
• RS-422
  No
• RS-485
  No
• Common Ethernet Protocol
  No
• RS-232
  No
• Feature: Timing (Hold/Delay)
  No
• Remote Teach and Laser Control Input Impedence
  3 kΩ
• Minimum Window Size (mm)
  3 °C
• Feature: Chemical Resistant
  Yes
Feature: Pump-in/ Pump-out
No
Feature: Remote Teach
Yes
Storage Temperature (°C)
-25 to 75
Barrel Diameter (mm)
18
NEMA Rating
NEMA 6
IP Rating
IP67
Minimum Response Time (ms)
25
Warm-up Time (minutes)
5
Min Operating Temperature (°C)
-20
Max Operating Temperature (°C)
70
Delay at Power-up (ms)
1500
Number of Pins
5
Adjustments
Push Button; Remote Teach
Power Supply
12-30 V dc
Analog Resolution/Discrete Repeatability
± 1% of measurement, or ± 1 °C, whichever is greater
Quick Disconnect Type
No QD
Connection
Flying Leads
Input/Output
Analog
Analog Output Configuration
4-20 mA
Indicator
LED(s)
Sensing Beam
N/A
Housing Style
Barrel
Sensing Mode (Detailed)
Diffuse
Primary Housing Material
Stainless Steel
Device Type
Sensor
Cable Length (m)
2
Power
DC
PC Configurable
Yes
Sensing Mode (General)
Proximity
Primary brand
Banner Engineering
Supply voltage (DC)
12Vdc-30Vdc (24Vdc nom.)
Main function
Sensor (Temperature)
Light Color
Infrared (IR)
Thread size
M18
Sub-range name
M18T series
Design
integrated optical lns. analog current output
Product series / family name
T-GAGE series
Analog outputs
1 x analog output (4-20mA)
Material
stainless steel (304) housing ABS / polycarbonate p.button housing santoprene (p. button) Integrated lens Acrylic lightpipes
Shape
Cylindrical threaded/barrel
Degree of protection
IP67 NEMA 6
Compliant with standard(s)
cURus CE
Digital outputs
1 x digital output (PNP transistor) (alarm)
Functions
Non-contact Infrared (IR) temperature sensor/transmitter green LED (power ON) amber LED (output state) red LED (teach active) TEACH mode
Ambient air temperature for operation
-20...+70 °C
Connection type
Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
Temperature
0...+300°C measurement range
Order code / Manufacturer SKU
81125
Response time
75ms / 0.075 s
