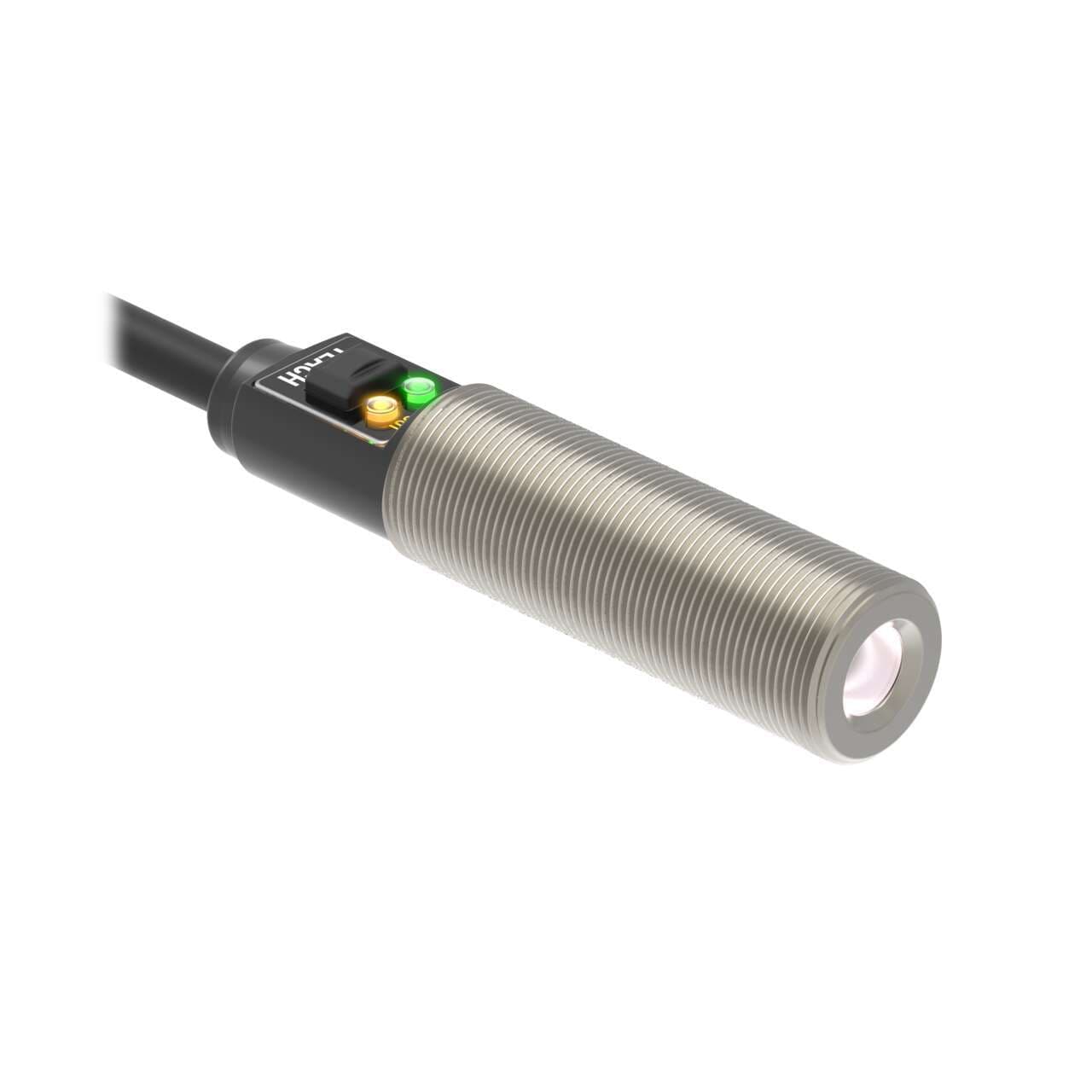

M18TB8 Banner Temperature Sensors

Name: M18TB8
Brand: Banner
Price: 397 USD
Availability: BackOrder

Part#:M18TB8

Manufacturer:Banner

Alt. Part#:73645

Product Lifecycle:Active

Get a quick Quote!

M18T Series: Temperature Sensor; 8: 1 Integrated Lens; Output: one NPN, one PNP; 2 m Cable

About the manufacturer: Banner is one of the manufacturers that offers Temperature Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the M18TB8 Banner price in the box on the right side or send a quick quote.

Product Details

Weight
208.65232 g
Country Of Origin
US
1-wire Serial Interface
Yes
Wireless
No
RS-422
No
Feature: Timing (Hold/Delay)
No
RS-485
No
Profibus
No
SSI
No
RS-232
No
PROFINET
No
Common Ethernet Protocol
No
IO Link
No
Feature: Quick Disconnect
Yes
Feature: Pump-in/ Pump-out
No
Feature: Chemical Resistant
Yes
Feature: Remote Teach
Yes
Remote Teach and Laser Control Input Impedence
3 kΩ
Minimum Window Size (mm)
3 °C
Minimum Response Time (ms)
25

Warm-up Time (minutes)

Barrel Diameter (mm)

Min Operating Temperature (°C)

-20

Max Operating Temperature (°C)

Storage Temperature (°C)

-25 to 75

NEMA Rating

NEMA 6

IP Rating

IP67

Discrete (Switched) Outputs

Bipolar (NPN & PNP)

Number of Pins

Power Supply

12-30 V dc

Adjustments

Push Button; Remote Teach

Analog Resolution/Discrete Repeatability

1 °C

Delay at Power-up (ms)

1500

Connection

Flying Leads

Quick Disconnect Type

No QD

Indicator

LED(s)

Input/Output

Discrete

Primary Housing Material

Stainless Steel

Sensing Beam

N/A

PC Configurable

Yes

Device Type

Sensor

Sensing Mode (General)

Proximity

Sensing Mode (Detailed)

Diffuse

Housing Style

Barrel

Cable Length (m)

Power

Supply voltage (DC)

12Vdc-30Vdc (24Vdc nom.)

Temperature

0...+300°C measurement range

Connection type

Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads

Order code / Manufacturer SKU

73645

Primary brand

Banner Engineering

Shape

Cylindrical threaded/barrel

Ambient air temperature for operation

-20...+70 °C

Product series / family name

T-GAGE series

Main function

Sensor (Temperature)

Sub-range name

M18T series

Thread size

M18

Degree of protection

IP67 NEMA 6

Material

stainless steel (304) housing ABS / polycarbonate p.button housing santoprene (p. button) Integrated lens Acrylic lightpipes

Design

integrated optical lns.

Response time

25ms / 0.025 s

Functions

Non-contact Infrared (IR) temperature switch/sensor green LED (power ON) amber LED (output state) red LED (teach active) TEACH mode

Digital outputs

1 x digital output (PNP transistor) 1 x digital output (NPN transistor)

Compliant with standard(s)

cURus CE

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

M18TB8 Description

Banner Engineering M18TB8 is a non-contact infrared (IR) temperature switch/sensor belonging to the M18T series. This sensor features an integrated optical lens and operates in TEACH mode. It has an M18 cylindrical threaded/barrel shape with a housing made of stainless steel 304, an ABS / Polycarbonate (PC) push button housing, Thermoplastic vulcanizate (TPV) push button, and an integrated lens with acrylic light pipes. The connection is facilitated by a pre-wired 6.5ft / 2m cable terminated with bare end flying leads. It requires a supply voltage of 12Vdc-30Vdc, with 24Vdc nominal. The M18TB8 can measure temperatures ranging from 0 to +300°C and is designed to operate in ambient air temperatures from -20 to +70°C. It offers a degree of protection rated at IP67 NEMA 6. The sensor has an M18 thread size and includes 1 x digital output (PNP transistor) and 1 x digital output (NPN transistor), with a response time of 25ms / 0.025 s.
