M18SP6RQP Banner Retroreflective Sensors

M18SP6RQP on Powermatic Associates
Banner

Part#:M18SP6RQP

Alt. Part#:2958

Manufacturer:Banner

Category:Retroreflective Sensors

Product Lifecycle:Active

Product description

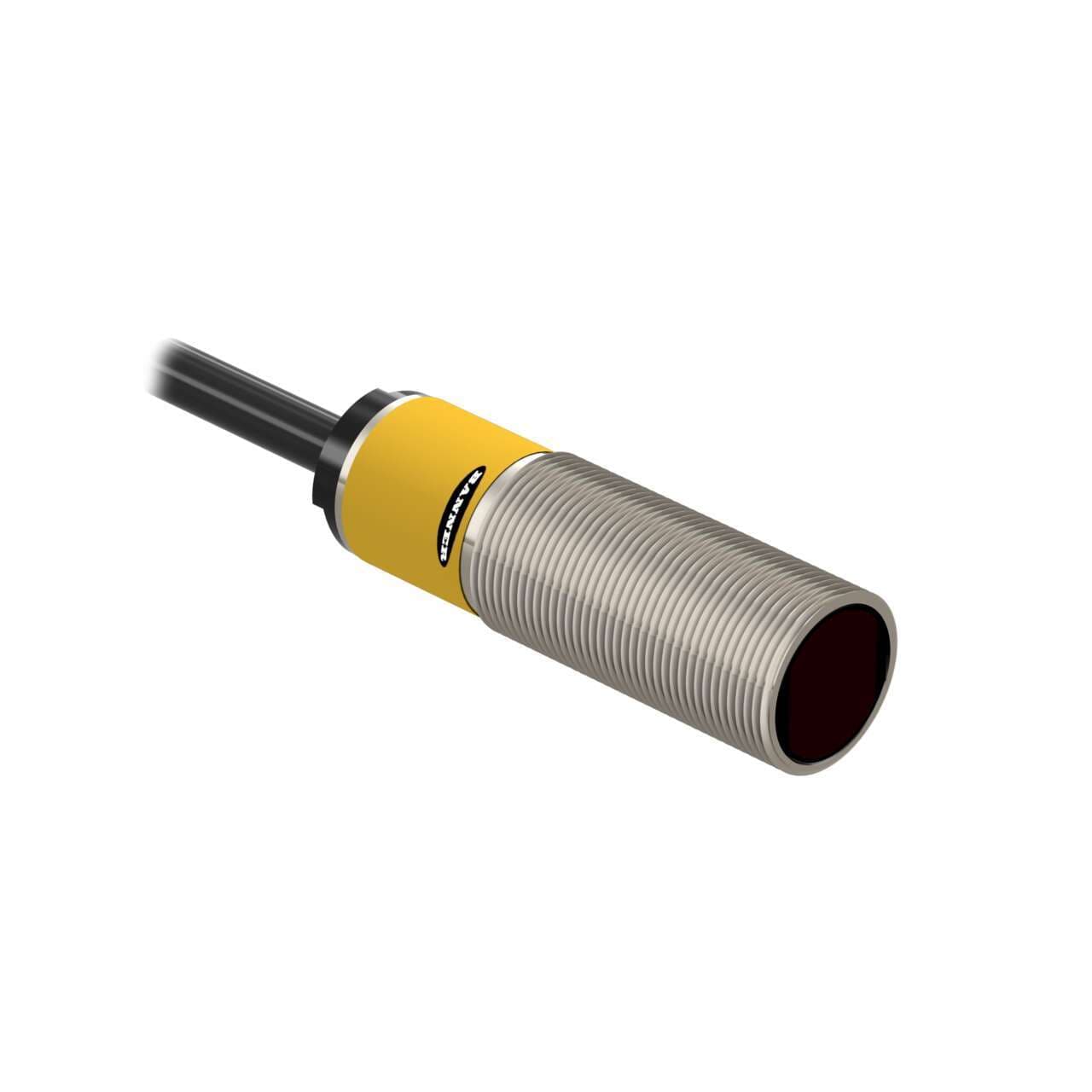

M18SP6RQP 6 in PIGTAIL PNP LO DC RECEIVER

Product Details

  • Weight
    108.86208 g
  • Country Of Origin
    CN

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of M18SP6RQP on Powermatic Associates is $210.00. Order now.

About the product

Banner Engineering M18SP6RQP is a photo-electric sensor designed for through-beam system applications, functioning as the receiver component within the M18 series. This sensor operates with infrared (IR) light and is encased in a durable stainless steel housing with a polycarbonate lens. It features an M18 cylindrical threaded/barrel shape for easy installation. The sensor is pre-wired, including a 6-inch (150mm) pigtail that terminates with a 4-pin Euro-style M12 connector for straightforward connectivity. It supports a supply voltage range of 10Vdc to 30Vdc, with nominal values of 12Vdc and 24Vdc. Designed to withstand harsh environments, it operates within an ambient air temperature range of -40 to +70 degrees Celsius and boasts a high degree of protection rated at IP69K and NEMA 6P. The M18SP6RQP offers versatile operating modes, including Light-ON and Dark-ON, and features a sensing distance of up to 20 meters. It provides one digital output (PNP transistor; complementary NO/NC) and has a rapid response time of 3ms (0.003 seconds).

M18SP6RQP Related Documents

49201.pdf
