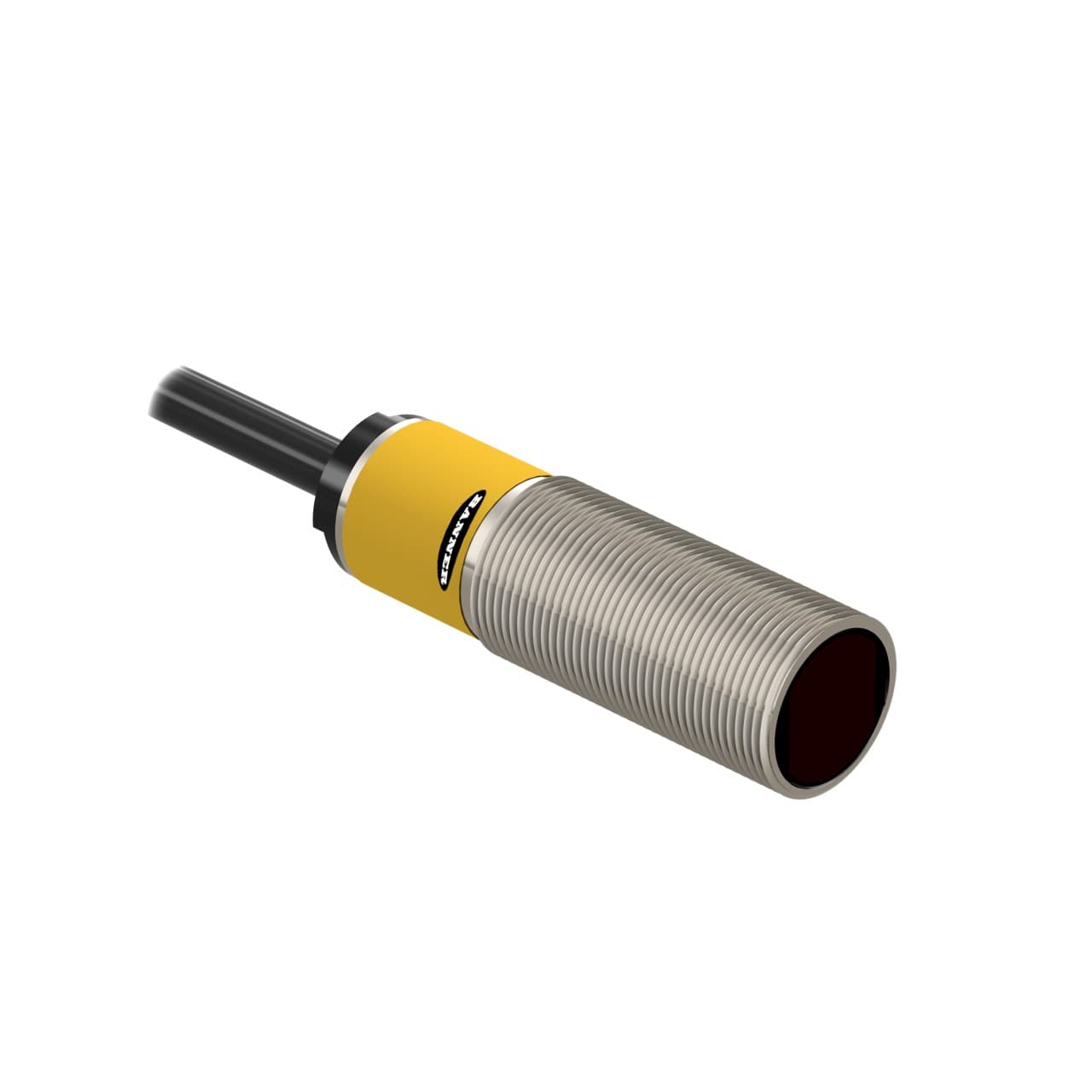

M18SN6L W/30 Banner Electronic Components

M18SN6L W/30 on Powermatic Associates
Banner

Part#:M18SN6L W/30

Manufacturer:Banner

Category:Electronic Components

Product Lifecycle:Active

Product description

Range: 2 m; Input: 10-30V dc

Product Details

  • IO Link
    No
  • DeviceNet
    No
  • Feature: Health/ Marginal Signal Output
    Yes
  • Feature: Chemical Resistant
    Yes
  • Feature: Audible
    No
  • Feature: Hazardous Area
    No
  • Feature: Encapsulated
    Yes
  • Opposed Mode Emitter/Receiver
    N/A
  • Feature: Timing (Hold/Delay)
    No
  • Feature: Washdown Rated
    Yes
  • Indicator
    LEDs
  • Barrel Diameter (mm)
    18
  • Adjustments
    N/A
  • Lens Material
    Acrylic
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • NEMA Rating
    NEMA 6P
  • IP Rating
    IP69
  • Number of Pins
    4
  • Repeatability (µs)
    750
  • Delay at Power-up (ms)
    100
  • Special Feature: Water Detection
    No
  • Special Feature: Remote Teach
    No
  • Special Feature: Intrinsically Safe
    No
  • Output response time (ms)
    3
  • Max Op. Temp. (°C)
    70
  • Min Op. Temp. (°C)
    -40
  • Operation
    Light/Dark Operate
  • Quick Disconnect Type
    No QD
  • Power Supply/Supply Voltage
    10-30 V dc
  • Connection
    Cable
  • Outputs
    NPN
  • Max Sensing Distance (mm)
    2000
  • Input/Output
    Discrete
  • Primary Housing Material
    Stainless Steel
  • Housing Style
    Barrel
  • Sensing Mode (Detailed)
    Non-Polarized
  • Sensing Beam
    Infrared LED
  • Cable Length (m)
    9
  • Sensing Mode (General)
    Retroreflective
  • Power
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

M18SN6L W/30 Related Documents

M18 Series Sensor -- Datasheet-1630949407920.pdf
