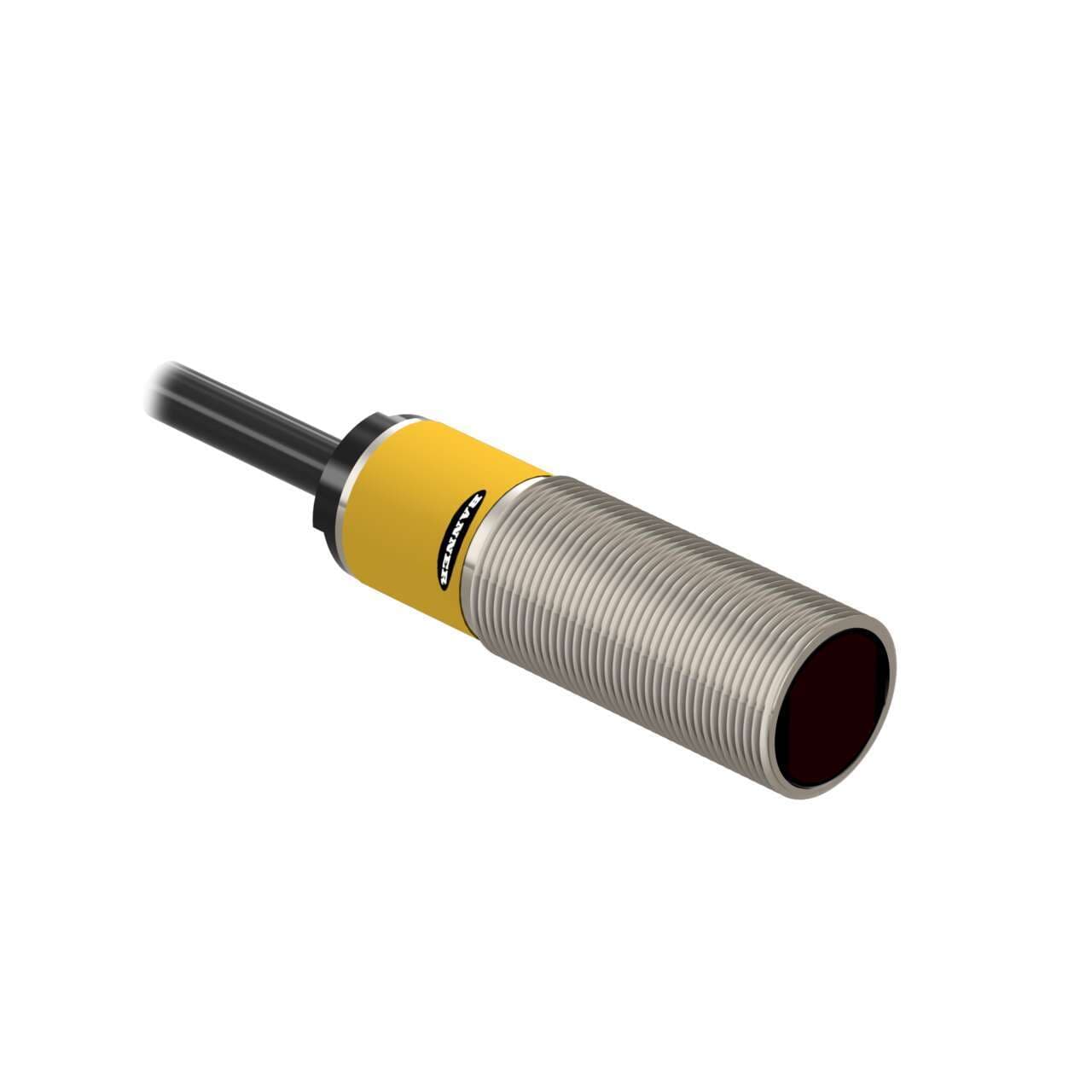

M18SN6LQ Banner Retroreflective Sensors

Name: M18SN6LQ
Brand: Banner
Price: 110 USD
Availability: BackOrder

Part#:M18SN6LQ

Manufacturer:Banner

Alt. Part#:48653

Product Lifecycle:Active

Get a quick Quote!

EZ-BEAM M18 Series: Retro; Range: 2 m; Input: 10-30 V dc; Output: Complementary NPN; 4-pin M12 Integral QD

About the manufacturer: Banner is one of the manufacturers that offers Retroreflective Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the M18SN6LQ Banner price in the box on the right side or send a quick quote.

Product Details

Weight
99.79024 g
Country Of Origin
CN
IO Link
No
Feature: Health/ Marginal Signal Output
Yes
Feature: Chemical Resistant
Yes
Feature: Hazardous Area
No
DeviceNet
No
Feature: Encapsulated
Yes
Feature: Washdown Rated
Yes
Feature: Timing (Hold/Delay)
No
Opposed Mode Emitter/Receiver
N/A
Barrel Diameter (mm)
18
Indicator
LEDs
Adjustments
N/A
Lens Material
Acrylic
Max Op. Relative Humidity [%]
90% @ 50°C
Special Feature: Intrinsically Safe
No
Repeatability (µs)
750
IP Rating
IP69
Special Feature: Water Detection
No

Number of Pins

Delay at Power-up (ms)

100

Special Feature: Remote Teach

Output response time (ms)

Max Op. Temp. (°C)

Operation

Light/Dark Operate

Min Op. Temp. (°C)

-40

Quick Disconnect Type

M12 (Euro)

Power Supply/Supply Voltage

10-30 V dc

Primary Housing Material

Stainless Steel

Housing Style

Barrel

Power

Sensing Mode (General)

Retroreflective

Feature: Audible

NEMA Rating

NEMA 6P

Connection

Integral QD

Input/Output

Discrete

Sensing Beam

Infrared LED

Outputs

NPN

Sensing Mode (Detailed)

Non-Polarized

Max Sensing Distance (mm)

2000

Primary brand

Banner Engineering

Light Color

Infrared (IR)

Functions

Photo-electric sensor green LED (power ON) yellow LED (output state)

Connection type

Pre-equipped with 4-pin Euro-style M12 connector

Operating mode

Light-ON Dark-ON

Main function

Sensor (Photo-electric)

Sensing distance

Thread size

M18

Digital outputs

1 x digital output (NPN transistor)

Compliant with standard(s)

Product series / family name

EZ-BEAM series

Supply voltage (DC)

10Vdc-30Vdc (12Vdc / 24Vdc nom.)

Response time

3ms / 0.003 s

Order code / Manufacturer SKU

48653

Sub-range name

M18 series

Design

retro-reflective mode

Material

Stainless steel housing Acrylic lns.

Shape

Cylindrical threaded/barrel

Degree of protection

IP69K NEMA 6P

Ambient air temperature for operation

-40...+70 °C

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

M18SN6LQ Description

Banner Engineering M18SN6LQ is a photo-electric sensor from the M18 series designed in a retro-reflective mode with an infrared (IR) light color. This sensor features an M18 cylindrical threaded/barrel shape with a stainless steel housing and an acrylic lens. It is pre-equipped with a 4-pin Euro-style M12 connector for connectivity. The sensor operates on a supply voltage range of 10Vdc-30Vdc (12Vdc / 24Vdc nom.) and can function within an ambient air temperature range of -40 to +70°C. It offers a degree of protection rated at IP69K NEMA 6P, ensuring durability in various environmental conditions. The operating modes include Light-ON and Dark-ON, with a sensing distance of up to 2 meters. It also features 1 x digital output (NPN transistor; complementary NO/NC) and boasts a quick response time of 3ms / 0.003 s.
