M18SN6RQ Banner Retroreflective Sensors

Name: M18SN6RQ
Brand: Banner
Price: 97 USD
Availability: BackOrder

Part#:M18SN6RQ

Manufacturer:Banner

Alt. Part#:48349

Product Lifecycle:Active

Get a quick Quote!

EZ-BEAM M18 Series: Receiver; Range: 20 m; Input: 10-30 V dc; Output: Complementary NPN; 4-pin M12 Integral QD

About the manufacturer: Banner is one of the manufacturers that offers Retroreflective Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the M18SN6RQ Banner price in the box on the right side or send a quick quote.

Product Details

Weight
99.79024 g
Country Of Origin
MX
IO Link
No
DeviceNet
No
Feature: Health/ Marginal Signal Output
Yes
Feature: Chemical Resistant
Yes
Feature: Audible
No
Feature: Hazardous Area
No
Feature: Timing (Hold/Delay)
No
Feature: Washdown Rated
Yes
Feature: Encapsulated
Yes
Opposed Mode Emitter/Receiver
Receiver
Indicator
LEDs
Barrel Diameter (mm)
18
Adjustments
N/A
Lens Material
Polycarbonate
Repeatability (µs)
375
NEMA Rating
NEMA 6P
Number of Pins
4
Max Op. Relative Humidity [%]
90% @ 50°C

IP Rating

IP69

Delay at Power-up (ms)

100

Special Feature: Water Detection

Power Supply/Supply Voltage

10-30 V dc

Special Feature: Remote Teach

Output response time (ms)

3 ON/1.5 OFF

Special Feature: Intrinsically Safe

Max Op. Temp. (°C)

Operation

Light/Dark Operate

Min Op. Temp. (°C)

-40

Quick Disconnect Type

M12 (Euro)

Sensing Mode (Detailed)

Receiver

Connection

Integral QD

Housing Style

Barrel

Outputs

NPN

Primary Housing Material

Stainless Steel

Max Sensing Distance (mm)

20000

Sensing Mode (General)

Opposed

Input/Output

Discrete

Power

Sensing Beam

Infrared LED

Product series / family name

EZ-BEAM series

Shape

Cylindrical threaded/barrel

Connection type

Pre-equipped with 4-pin Euro-style M12 connector

Primary brand

Banner Engineering

Operating mode

Light-ON Dark-ON

Compliant with standard(s)

Sub-range name

M18 series

Thread size

M18

Material

Stainless steel housing Polycarbonate lns.

Degree of protection

IP69K NEMA 6P

Response time

3ms / 0.003 s

Light Color

Infrared (IR)

Ambient air temperature for operation

-40...+70 °C

Digital outputs

1 x digital output (NPN transistor)

Main function

Sensor (Photo-electric)

Supply voltage (DC)

10Vdc-30Vdc (12Vdc / 24Vdc nom.)

Order code / Manufacturer SKU

48349

Design

through-beam system / opposed mode

Functions

Photo-electric sensor receiver green LED (power ON) yellow LED (output state)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

M18SN6RQ Description

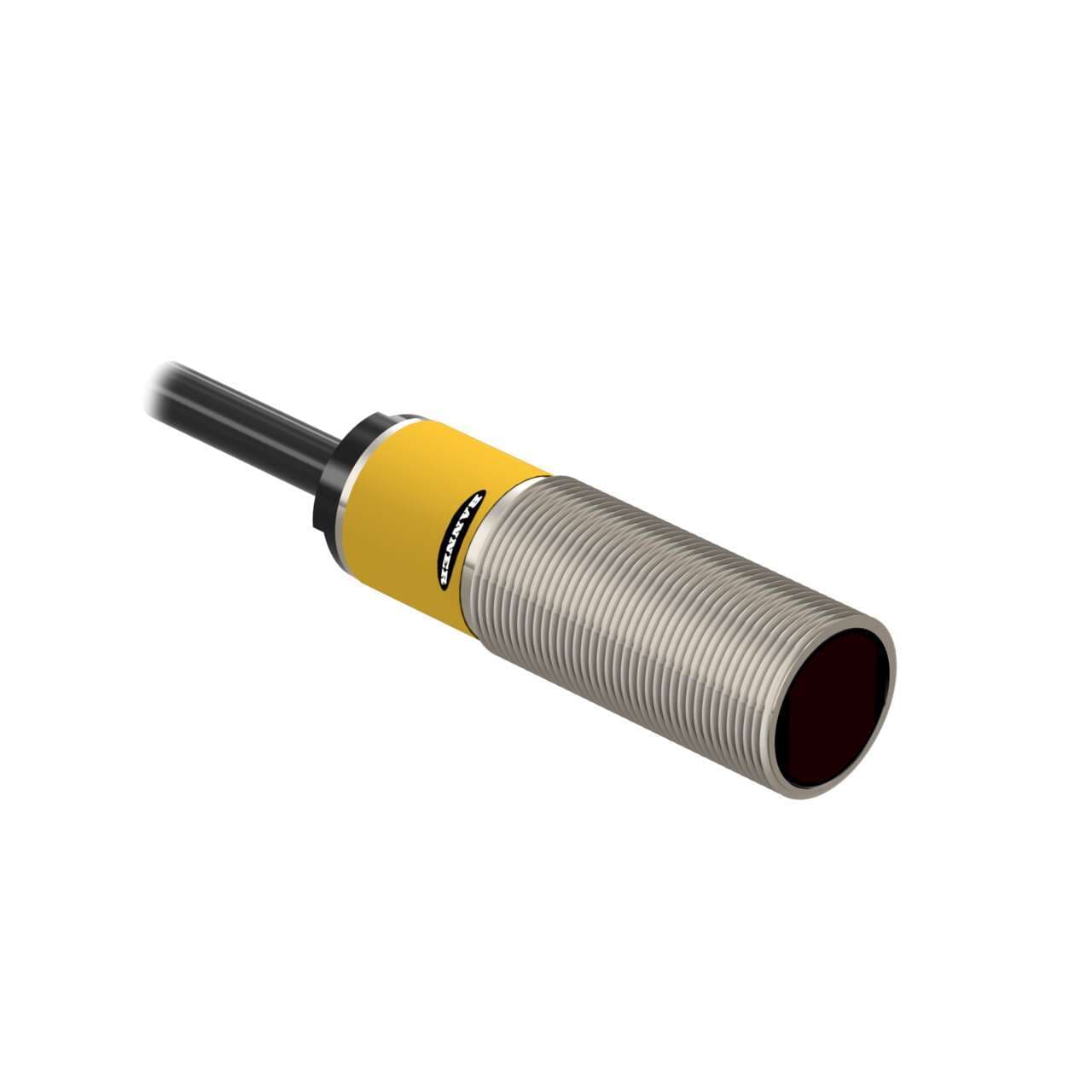

Banner Engineering M18SN6RQ is a photo-electric sensor designed for through-beam system applications, functioning as the receiver component within the M18 series. It utilizes infrared (IR) light and is encased in a durable stainless steel housing with a polycarbonate lens. This sensor is specifically shaped as an M18 cylindrical threaded/barrel and comes pre-equipped with a 4-pin Euro-style M12 connector for connectivity. It operates on a supply voltage range of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc. The M18SN6RQ is designed to work within an ambient air temperature range of -40 to +70 degrees Celsius and offers a high degree of protection rated at IP69K and NEMA 6P. It features an operating mode that allows for both Light-ON and Dark-ON functionality, has a thread size of M18, and can sense objects up to 20 meters away. Additionally, it provides 1 x digital output (NPN transistor; complementary NO/NC) and boasts a quick response time of 3ms / 0.003 s.
