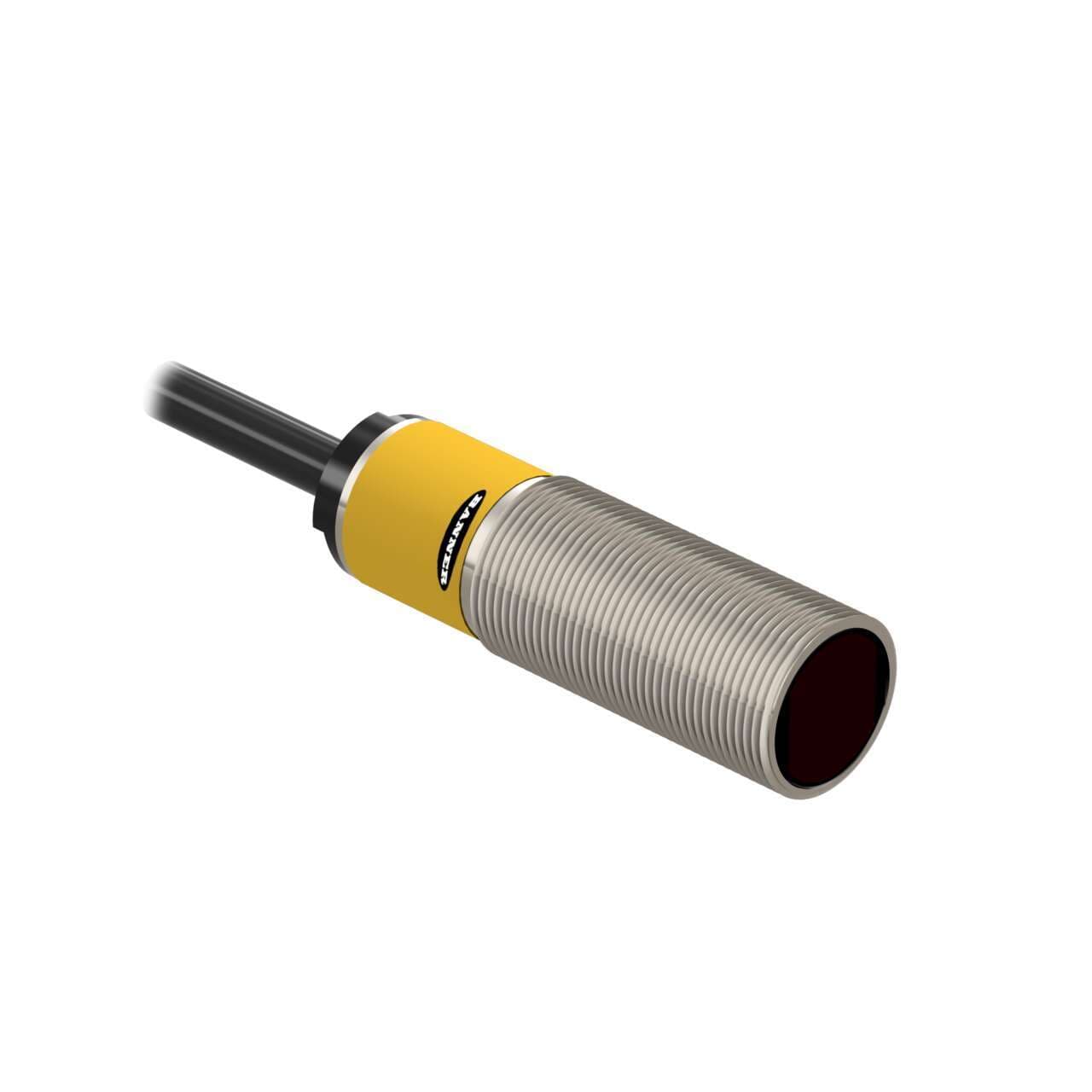

M18SP6RQ Banner Retroreflective Sensors

Banner M18SP6RQ EZ-BEAM M18 Series: Receiver; Range: 20 m; Input: 10-30 V dc; Output: Complementary PNP; 4-pin M12 Integral QD
Banner

Part#:M18SP6RQ

Manufacturer:Banner

Alt. Part#:48651

Product Lifecycle:Active

Get a quick Quote!

EZ-BEAM M18 Series: Receiver; Range: 20 m; Input: 10-30 V dc; Output: Complementary PNP; 4-pin M12 Integral QD

About the manufacturer: Banner is one of the manufacturers that offers Retroreflective Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the M18SP6RQ Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    98.5201824 g
  • Country Of Origin
    MX
  • DeviceNet
    No
  • Opposed Mode Emitter/Receiver
    Receiver
  • Feature: Health/ Marginal Signal Output
    Yes
  • IO Link
    No
  • Feature: Hazardous Area
    No
  • Feature: Chemical Resistant
    Yes
  • Feature: Audible
    No
  • Feature: Encapsulated
    Yes
  • Feature: Timing (Hold/Delay)
    No
  • Feature: Washdown Rated
    Yes
  • Barrel Diameter (mm)
    18
  • Indicator
    LEDs
  • Adjustments
    N/A
  • Special Feature: Remote Teach
    No
  • Number of Pins
    4
  • Repeatability (µs)
    375
  • Lens Material
    Polycarbonate
  • IP Rating
    IP69
  • Delay at Power-up (ms)
    100
  • Special Feature: Water Detection
    No
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • NEMA Rating
    NEMA 6P
  • Operation
    Light/Dark Operate
  • Min Op. Temp. (°C)
    -40
  • Quick Disconnect Type
    M12 (Euro)
  • Connection
    Integral QD
  • Max Op. Temp. (°C)
    70
  • Special Feature: Intrinsically Safe
    No
  • Output response time (ms)
    3 ON/1.5 OFF
  • Power Supply/Supply Voltage
    10-30 V dc
  • Sensing Beam
    Infrared LED
  • Outputs
    PNP
  • Max Sensing Distance (mm)
    20000
  • Input/Output
    Discrete
  • Power
    DC
  • Primary Housing Material
    Stainless Steel
  • Housing Style
    Barrel
  • Sensing Mode (Detailed)
    Receiver
  • Sensing Mode (General)
    Opposed
  • Product series / family name
    EZ-BEAM series
  • Shape
    Cylindrical threaded/barrel
  • Operating mode
    Light-ON Dark-ON
  • Compliant with standard(s)
    CE
  • Main function
    Sensor (Photo-electric)
  • Light Color
    Infrared (IR)
  • Material
    Stainless steel housing Polycarbonate lns.
  • Primary brand
    Banner Engineering
  • Thread size
    M18
  • Ambient air temperature for operation
    -40...+70 °C
  • Degree of protection
    IP69K NEMA 6P
  • Digital outputs
    1 x digital output (PNP transistor)
  • Connection type
    Pre-equipped with 4-pin Euro-style M12 connector
  • Sub-range name
    M18 series
  • Order code / Manufacturer SKU
    48651
  • Functions
    Photo-electric sensor receiver green LED (power ON) yellow LED (output state)
  • Response time
    3ms / 0.003 s
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Design
    through-beam system / opposed mode

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

M18SP6RQ Description

Banner Engineering M18SP6RQ is a photo-electric sensor designed for through-beam system applications, part of the M18 series. This sensor operates as the receiver in an opposed mode setup, utilizing infrared (IR) light. It features an M18 cylindrical threaded/barrel shape with a durable stainless steel housing and a polycarbonate lens. The sensor is pre-equipped with a 4-pin Euro-style M12 connector for connectivity. It supports a supply voltage range of 10Vdc to 30Vdc, with nominal values of 12Vdc and 24Vdc. Designed to operate in ambient air temperatures ranging from -40 to +70 degrees Celsius, it offers a high degree of protection with an IP69K and NEMA 6P rating. The M18SP6RQ provides both Light-ON and Dark-ON operating modes, has a sensing distance of up to 20 meters, and includes 1 x digital output (PNP transistor; complementary NO/NC) with a response time of 3ms or 0.003 seconds.
