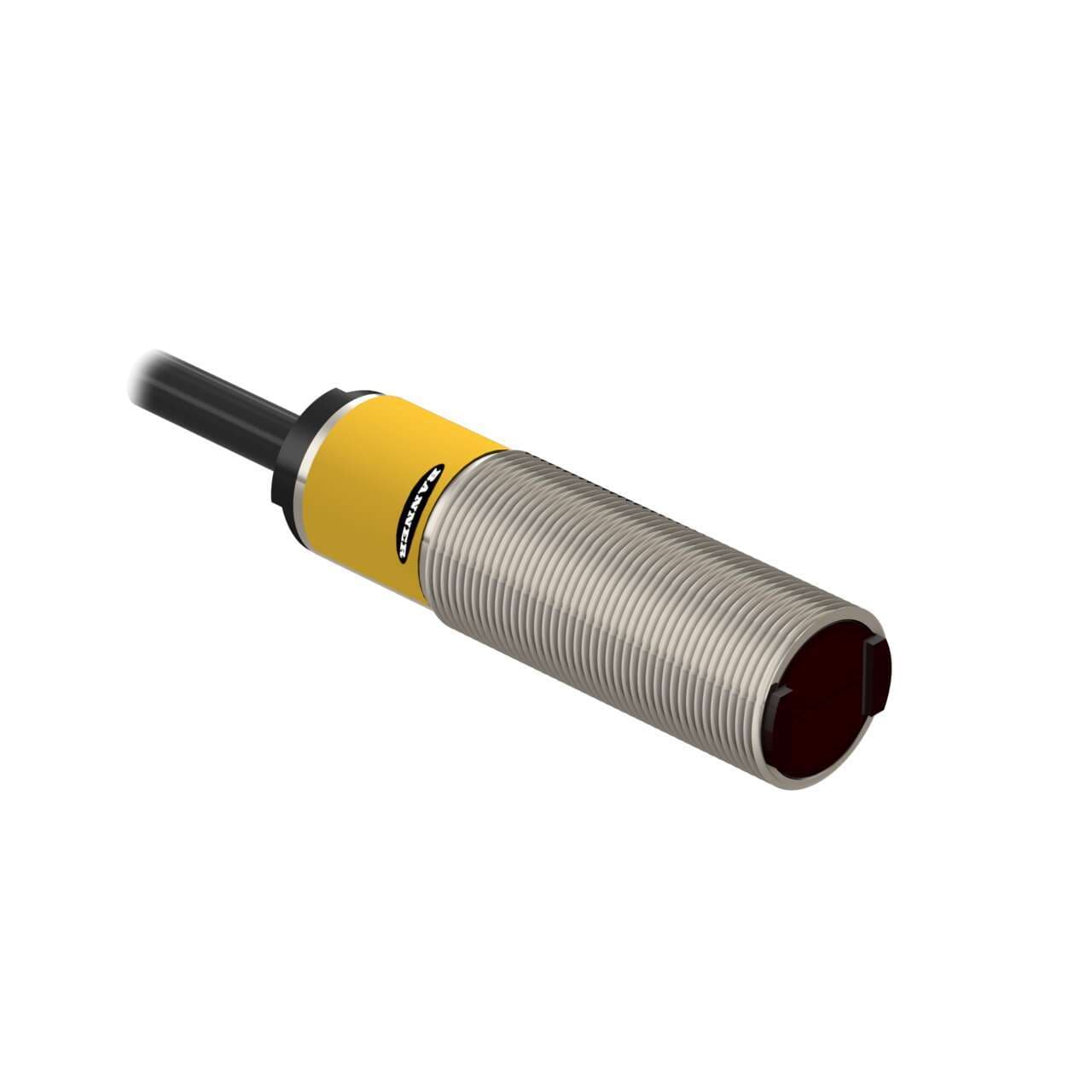

M18SN6FF100 Banner Retroreflective Sensors

Name: M18SN6FF100
Brand: Banner

Banner M18SN6FF100 EZ-BEAM M18 Series: Fixed Field; Range: 100 mm; Input: 10-30 V dc; Output: Complementary NPN; 2 m (6.5 ft) Cable

Part#:M18SN6FF100

Manufacturer:Banner

Alt. Part#:48672

Product Lifecycle:Active

Get a quick Quote!

EZ-BEAM M18 Series: Fixed Field; Range: 100 mm; Input: 10-30 V dc; Output: Complementary NPN; 2 m (6.5 ft) Cable

About the manufacturer: Banner is one of the manufacturers that offers Retroreflective Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the M18SN6FF100 Banner price in the box on the right side or send a quick quote.

Product Details

Weight
199.58048 g
Country Of Origin
MX
Feature: Audible
No
Feature: Chemical Resistant
Yes
Feature: Hazardous Area
No
Feature: Encapsulated
Yes
Feature: Health/ Marginal Signal Output
Yes
Barrel Diameter (mm)
18
Adjustments
N/A
IO Link
No
DeviceNet
No
Feature: Timing (Hold/Delay)
No
Feature: Washdown Rated
Yes
Opposed Mode Emitter/Receiver
N/A
Indicator
LEDs
Lens Material
Acrylic
Max Op. Relative Humidity [%]
90% @ 50°C
Delay at Power-up (ms)
100
Repeatability (µs)
750
IP Rating
IP69

Number of Pins

NEMA Rating

NEMA 6P

Special Feature: Water Detection

Special Feature: Remote Teach

Special Feature: Intrinsically Safe

Output response time (ms)

Max Op. Temp. (°C)

Min Op. Temp. (°C)

-40

Operation

Light/Dark Operate

Power Supply/Supply Voltage

10-30 V dc

Quick Disconnect Type

No QD

Outputs

NPN

Cable Length (m)

Connection

Cable

Input/Output

Discrete

Primary Housing Material

Stainless Steel

Max Sensing Distance (mm)

100

Housing Style

Barrel

Sensing Mode (Detailed)

Background Suppression (Fixed)

Sensing Mode (General)

Proximity

Power

Sensing Beam

Infrared LED

Sub-range name

M18 series

Light Color

Infrared (IR)

Thread size

M18

Digital outputs

1 x digital output (NPN transistor)

Ambient air temperature for operation

-40...+70 °C

Main function

Sensor (Photo-electric)

Design

background suppression system

Shape

Cylindrical threaded/barrel

Product series / family name

EZ-BEAM series

Sensing distance

100mm

Connection type

Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads

Material

Stainless steel housing Acrylic lns.

Primary brand

Banner Engineering

Response time

3ms / 0.003 s

Order code / Manufacturer SKU

48672

Supply voltage (DC)

10Vdc-30Vdc (12Vdc / 24Vdc nom.)

Operating mode

Light-ON Dark-ON

Compliant with standard(s)

Functions

Fixed-field photo-electric sensor green LED (power ON) yellow LED (output state)

Degree of protection

IP69K NEMA 6P

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

M18SN6FF100 Description

Banner Engineering M18SN6FF100 is a fixed-field photo-electric sensor within the M18 series, featuring a background suppression system and utilizing infrared (IR) light. This sensor is encased in a stainless steel housing with an acrylic lens and is designed in an M18 cylindrical threaded/barrel shape. It comes pre-wired with a 6.5ft / 2m cable that terminates with bare end flying leads for connection. The sensor operates on a supply voltage range of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc. It is designed to function within an ambient air temperature range of -40 to +70 degrees Celsius and offers a degree of protection rated at IP69K and NEMA 6P. The M18SN6FF100 operates in both Light-ON and Dark-ON modes, has a thread size of M18, and offers a sensing distance of 100mm. It features 1 x digital output (NPN transistor; complementary NO/NC) and boasts a response time of 3ms / 0.003 s.
