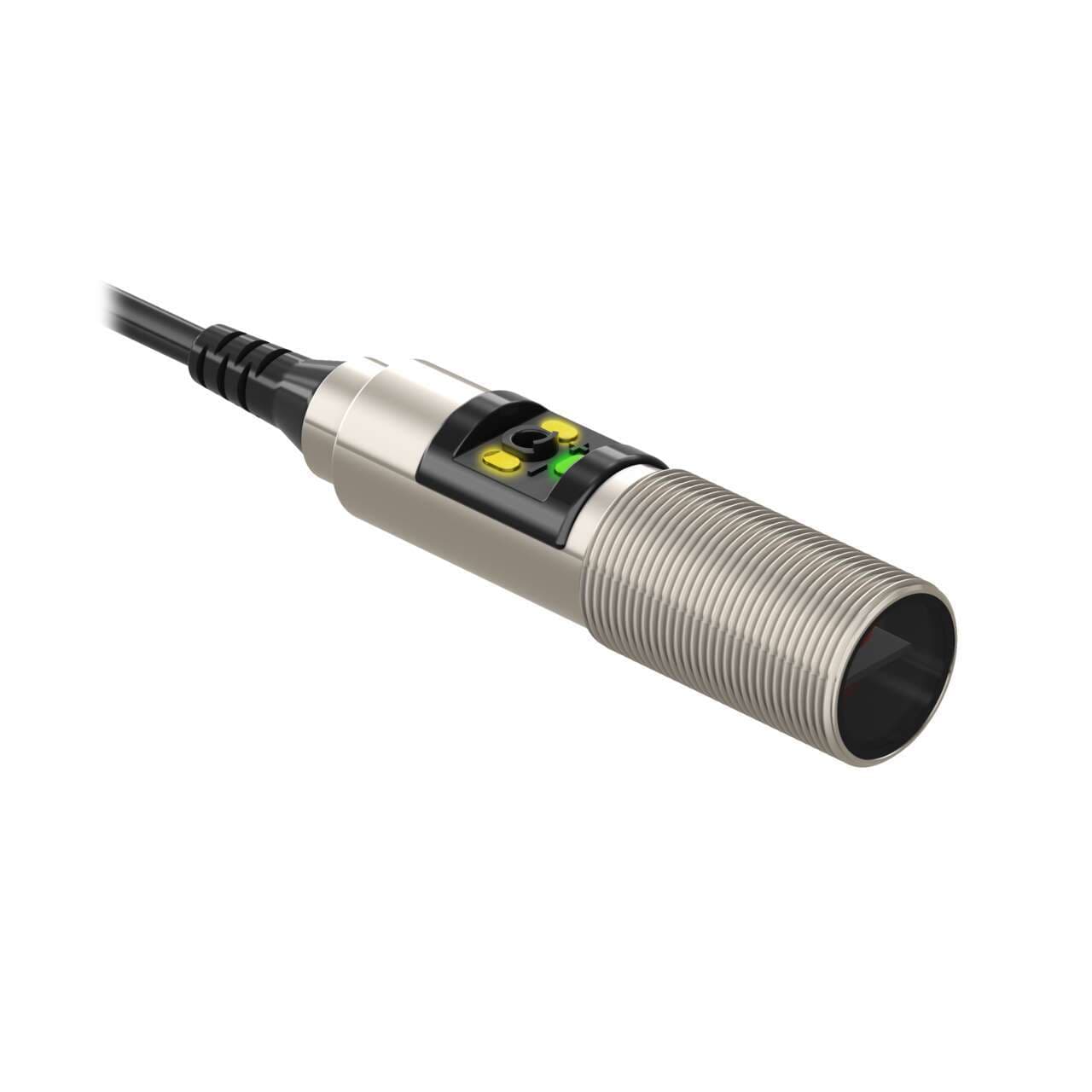

M18-3VNDS-2M Banner Proximity Sensors

Name: M18-3VNDS-2M
Brand: Banner
Price: 77 USD
Availability: BackOrder

Part#:M18-3VNDS-2M

Alt. Part#:92551

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

Product description

M18-3 Series: Nickel-Plated Brass: Diffuse Reflective; Range: 300 mm; Input: 10-30 V dc; Outputs: complementary NPN; 2 m 4-conductor PVC Cable

Product Details

Weight
68.0388 g
Country Of Origin
CN
Main function
Sensor (Photo-electric)
Thread size
M18
Material
Nickel-plated brass housing Acrylic lns.
Order code / Manufacturer SKU
92551
Primary brand
Banner Engineering
Supply voltage (DC)
10Vdc-30Vdc (12Vdc / 24Vdc nom.)
Light Color
Visible red
Connection type
Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
Degree of protection
IP67 IP69K
Digital outputs
1 x digital output (NPN transistor)
Design
diffuse mode
Response time
1.5ms / 0.0015 s
Wavelength
624 nm
Operating mode
Light-ON Dark-ON
Compliant with standard(s)
cULus CE
Sensing distance
300mm
Sub-range name
M18-3 (nickel-plated brass)
Product series / family name
M18 barrel series

Ambient air temperature for operation

-40...+70 °C

Equivalent to

M183VNDS2M

Functions

Photo-electric sensor green LED (power ON) 2 x yellow LED (output conducting) potentiometer adjustment

Shape

Cylindrical threaded/barrel

Power

Connection

Cable

Number of Pins

Adjustments

Potentiometer

DeviceNet

Housing Style

Barrel

Output response time (ms)

1.5

NEMA Rating

N/A

Indicator

LEDs

Sensing Mode (General)

Proximity

Operation

Light/Dark Operate

Repeatability (µs)

100

Opposed Mode Emitter/Receiver

N/A

Sensing Mode (Detailed)

Diffuse

Min Op. Temp. (°C)

-40

Sensing Beam Wavelength

624

Feature: Chemical Resistant

Cable Length (m)

Outputs

NPN

Special Feature: Water Detection

Lens Material

Acrylic

Feature: Audible

Max Sensing Distance (mm)

300

Quick Disconnect Type

No QD

Max Op. Relative Humidity [%]

95% @ 50°C

Feature: Encapsulated

Input/Output

Discrete

Special Feature: Remote Teach

Barrel Diameter (mm)

IO Link

Primary Housing Material

Nickel-Plated Brass

Max Op. Temp. (°C)

Delay at Power-up (ms)

100

Feature: Washdown Rated

Yes

Sensing Beam

Visible Red LED

Power Supply/Supply Voltage

10-30 V dc

Special Feature: Intrinsically Safe

IP Rating

IP67, IP69

Feature: Timing (Hold/Delay)

Feature: Hazardous Area

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of M18-3VNDS-2M on Powermatic Associates is $77.00. Order now.

About the product

Banner Engineering M18-3VNDS-2M is a photo-electric sensor from the M18-3 (Nickel-plated brass) series, designed with a diffuse mode potentiometer adjustment. It features a visible red light with a wavelength of 624 nm and is housed in a nickel-plated brass with an acrylic lens. This sensor is shaped in an M18 cylindrical threaded/barrel form and comes pre-wired with a 6.5ft / 2m cable terminated with bare end flying leads. It operates on a supply voltage of 10Vdc-30Vdc (12Vdc / 24Vdc nom.) and can function within an ambient air temperature range of -40 to +70 °C. The M18-3VNDS-2M offers a sensing distance of 300mm and includes 1 x digital output (NPN transistor; complementary NO/NC) with a response time of 1.5ms / 0.0015 s. It is designed for both Light-ON and Dark-ON operating modes and provides a degree of protection rated at IP67 and IP69K. The thread size for this sensor is M18.
