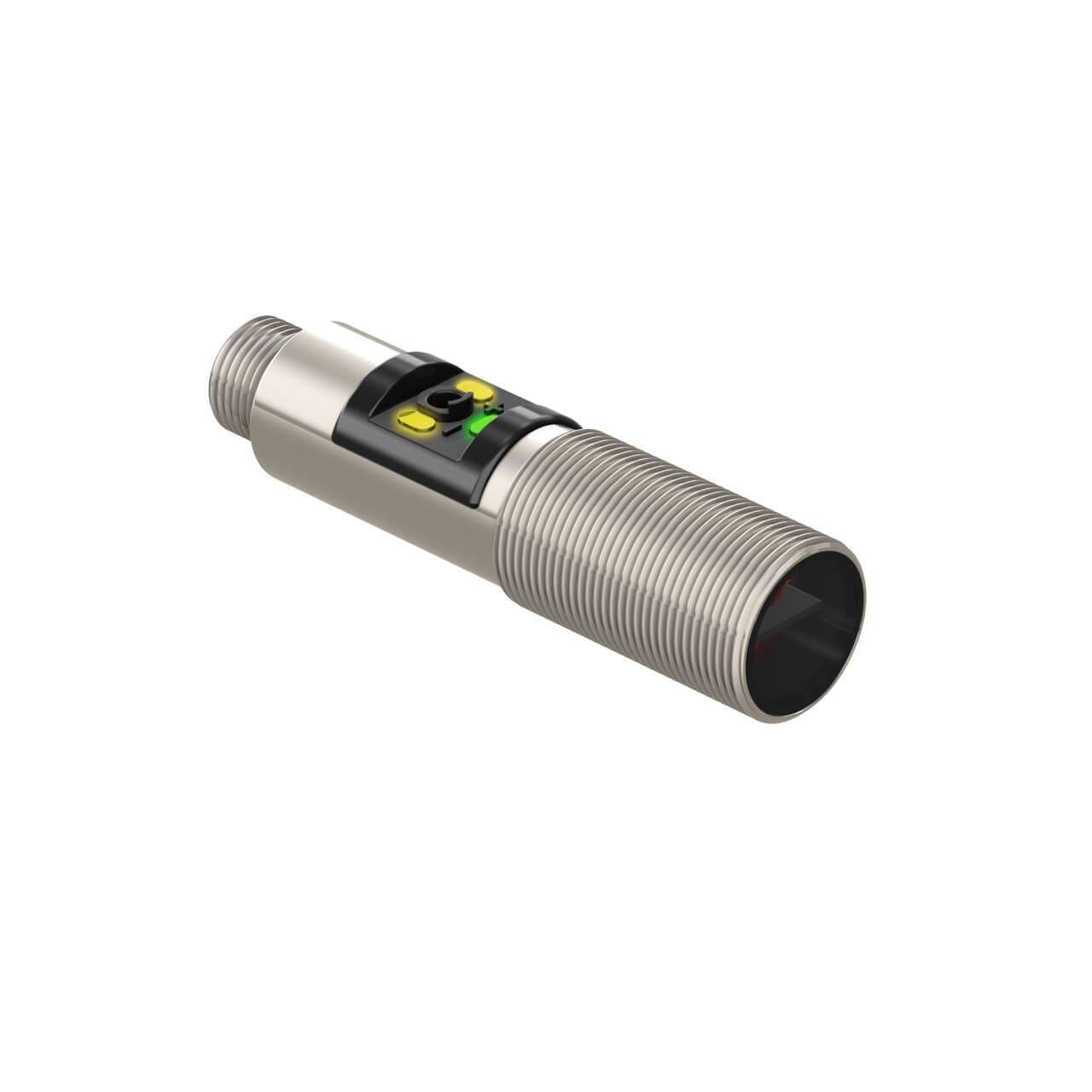

M18-3NAES-Q8 Banner Proximity Sensors

Banner M18-3NAES-Q8 M18-3 Series: Nickel-Plated Brass: Emitter with Pot; Range: variable to 25 m; Input: 10-30 V dc; Outputs: none; 4-pin M12 Integral QD
Banner

Part#:M18-3NAES-Q8

Manufacturer:Banner

Alt. Part#:92560

Product Lifecycle:Active

Get a quick Quote!

M18-3 Series: Nickel-Plated Brass: Emitter with Pot; Range: variable to 25 m; Input: 10-30 V dc; Outputs: none; 4-pin M12 Integral QD

About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the M18-3NAES-Q8 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    31.75144 g
  • Country Of Origin
    CN
  • Feature: Chemical Resistant
    No
  • IO Link
    No
  • Feature: Washdown Rated
    Yes
  • Feature: Hazardous Area
    No
  • Indicator
    LEDs
  • Lens Material
    Acrylic
  • Barrel Diameter (mm)
    18
  • Number of Pins
    4
  • Feature: Audible
    No
  • DeviceNet
    No
  • Feature: Timing (Hold/Delay)
    No
  • Feature: Encapsulated
    No
  • Opposed Mode Emitter/Receiver
    Emitter
  • Adjustments
    Potentiometer
  • Max Op. Relative Humidity [%]
    95% @ 50°C
  • NEMA Rating
    N/A
  • Repeatability (µs)
    170
  • Delay at Power-up (ms)
    100
  • IP Rating
    IP67, IP69
  • Sensing Beam Wavelength
    624
  • Special Feature: Water Detection
    No
  • Max Op. Temp. (°C)
    70
  • Output response time (ms)
    1.5
  • Special Feature: Intrinsically Safe
    No
  • Special Feature: Remote Teach
    No
  • Operation
    N/A
  • Quick Disconnect Type
    M12 (Euro)
  • Connection
    Integral QD
  • Min Op. Temp. (°C)
    -40
  • Power
    DC
  • Max Sensing Distance (mm)
    25000
  • Power Supply/Supply Voltage
    10-30 V dc
  • Outputs
    N/A
  • Sensing Mode (General)
    Opposed
  • Housing Style
    Barrel
  • Sensing Mode (Detailed)
    Emitter
  • Primary Housing Material
    Nickel-Plated Brass
  • Sensing Beam
    Visible Red LED
  • Design
    through-beam system / opposed mode
  • Material
    Nickel-plated brass housing Acrylic lns.
  • Sub-range name
    M18-3 (nickel-plated brass)
  • Wavelength
    624 nm
  • Response time
    1.5ms / 0.0015 s
  • Compliant with standard(s)
    cULus CE
  • Product series / family name
    M18 barrel series
  • Shape
    Cylindrical threaded/barrel
  • Degree of protection
    IP67 IP69K
  • Equivalent to
    M183NAESQ8
  • Main function
    Sensor (Photo-electric)
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Thread size
    M18
  • Order code / Manufacturer SKU
    92560
  • Primary brand
    Banner Engineering
  • Functions
    Photo-electric emitter green LED (power ON) 2 x yellow LED (output conducting) potentiometer adjustment
  • Light Color
    Visible red
  • Connection type
    Pre-equipped with 4-pin Euro-style M12 connector
  • Ambient air temperature for operation
    -40...+70 °C

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

M18-3NAES-Q8 Description

Banner Engineering M18-3NAES-Q8 is a photo-electric sensor designed for through-beam system applications with opposed mode potentiometer adjustment. This sensor, part of the M18-3 (Nickel-plated brass) series, features a visible red light with a wavelength of 624 nm and is housed in a nickel-plated brass with an acrylic lens. It is shaped in an M18 cylindrical threaded/barrel form and comes pre-equipped with a 4-pin Euro-style M12 connector. The sensor operates on a supply voltage range of 10Vdc to 30Vdc, with nominal values of 12Vdc and 24Vdc. It is capable of sensing distances up to 25 meters and has a response time of 1.5ms or 0.0015 seconds. The M18-3NAES-Q8 operates within an ambient air temperature range of -40 to +70 degrees Celsius and offers a degree of protection rated at IP67 and IP69K.

Related documents M18-3NAES-Q8 Specs

M18-3NAES-Q8 185178.pdf
