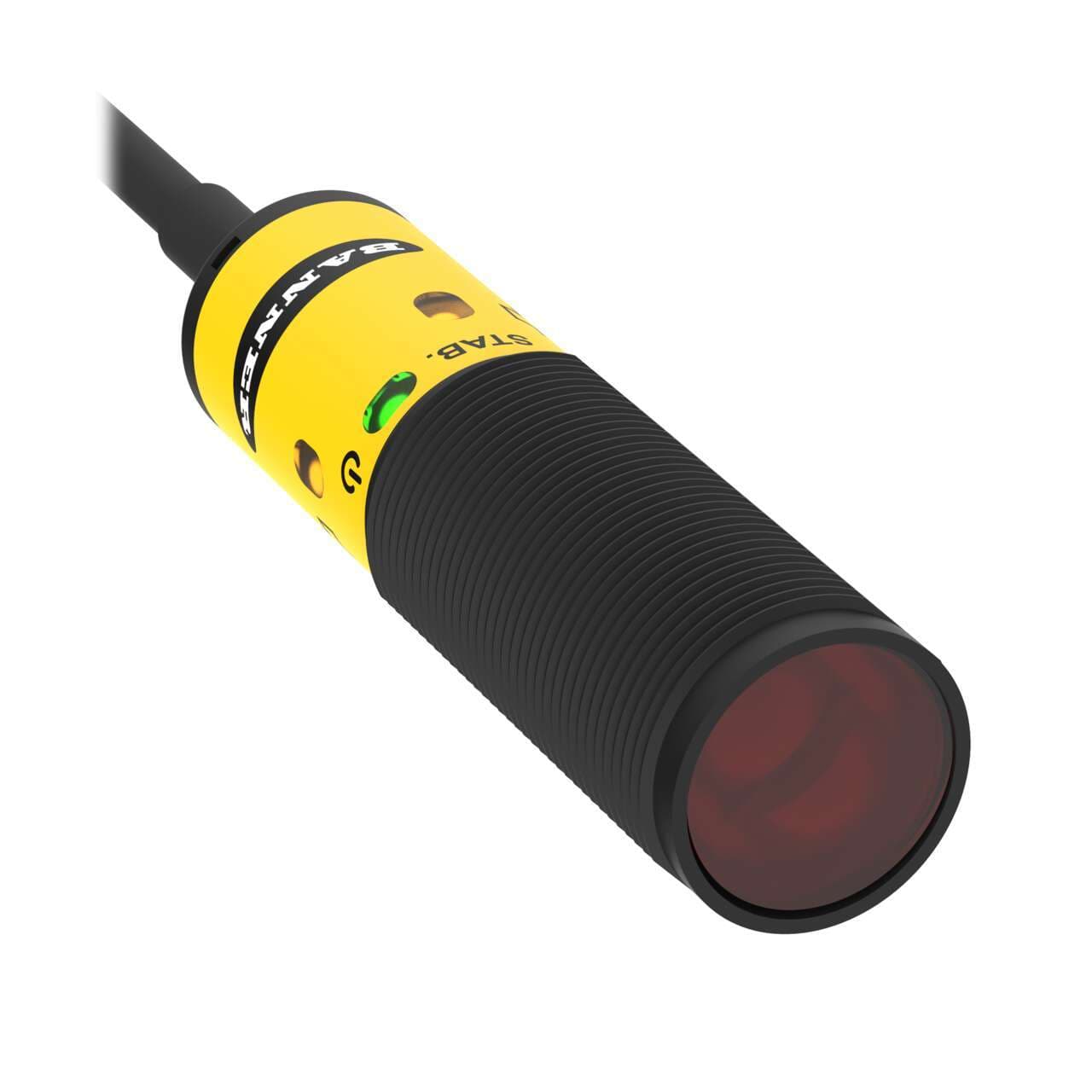

S18-2VPFF30-9M Banner Optical Sensors

S18-2VPFF30-9M on Powermatic Associates
Banner

Part#:S18-2VPFF30-9M

Manufacturer:Banner

Alt. Part#:91065

Product Lifecycle:Active

Get a quick Quote!

S18-2 Series: Fixed Field; Range: 30 mm; Input: 10-30 V dc; Outputs: complementary PNP; 9 m 4-conductor PVC Cable

About the manufacturer: Banner is one of the manufacturers that offers Optical Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the S18-2VPFF30-9M Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    222.26008 g
  • Country Of Origin
    CN
  • Feature: Audible
    No
  • Feature: Chemical Resistant
    No
  • Feature: Hazardous Area
    No
  • IO Link
    No
  • DeviceNet
    No
  • Feature: Timing (Hold/Delay)
    No
  • Feature: Encapsulated
    No
  • Barrel Diameter (mm)
    18
  • Opposed Mode Emitter/Receiver
    N/A
  • NEMA Rating
    N/A
  • Lens Material
    Acrylic
  • Indicator
    LEDs
  • Max Op. Relative Humidity [%]
    95% @ 50°C
  • IP Rating
    IP67
  • Sensing Beam Wavelength
    624
  • Delay at Power-up (ms)
    100
  • Special Feature: Water Detection
    No
  • Max Sensing Distance (mm)
    30
  • Max Op. Temp. (°C)
    70
  • Connection
    Cable
  • Power Supply/Supply Voltage
    10-30 V dc
  • Outputs
    PNP
  • Sensing Mode (General)
    Proximity
  • Primary Housing Material
    Thermoplastic
  • Sensing Beam
    Visible Red LED
  • Small Visible Spot
    LED
  • Sensing Mode (Detailed)
    Background Suppression (Fixed)
  • Feature: Ecolab Certified
    Yes
  • Adjustments
    N/A
  • Number of Pins
    4
  • Repeatability (µs)
    100
  • Special Feature: Remote Teach
    No
  • Special Feature: Intrinsically Safe
    No
  • Output response time (ms)
    1.5
  • Operation
    Light/Dark Operate
  • Quick Disconnect Type
    No QD
  • Min Op. Temp. (°C)
    -40
  • Housing Style
    Barrel
  • Input/Output
    Discrete
  • Power
    DC
  • Cable Length (m)
    9
  • Primary brand
    Banner Engineering
  • Product series / family name
    M18 barrel series
  • Functions
    Fixed-field photo-electric sensor green LED (power ON) 2 x yellow LED (output conducting)
  • Main function
    Sensor (Photo-electric)
  • Digital outputs
    1 x digital output (PNP transistor)
  • Light Color
    Visible red
  • Response time
    1.5ms / 0.0015 s
  • Equivalent to
    S182VPFF309M
  • Sub-range name
    S18-2 series
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Sensing distance
    30mm
  • Thread size
    M18
  • Connection type
    Pre-wired with 9m cable terminated with bare end flying leads
  • Material
    thermoplastic housing Acrylic lns.
  • Compliant with standard(s)
    CE
  • Design
    background suppression system
  • Shape
    Cylindrical threaded/barrel
  • Degree of protection
    IP67
  • Wavelength
    624 nm
  • Operating mode
    Light-ON Dark-ON
  • Ambient air temperature for operation
    -40...+70 °C
  • Order code / Manufacturer SKU
    91065

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

S18-2VPFF30-9M Description

Banner Engineering S18-2VPFF30-9M is a fixed-field photo-electric sensor from the S18-2 series, designed with a background suppression system. It features a thermoplastic housing and an acrylic lens. This sensor is pre-wired with a 9m cable that terminates with bare end flying leads. It operates on a supply voltage range of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc. The sensor can function in ambient air temperatures ranging from -40 to +70°C and has an IP67 degree of protection, making it suitable for various environmental conditions. Its M18 cylindrical threaded/barrel shape facilitates easy installation. The S18-2VPFF30-9M offers a single digital output (PNP transistor) and has a sensing distance of 30mm. It utilizes visible red light with a wavelength of 624 nm and has a quick response time of 1.5ms. The operating modes available are Light-ON and Dark-ON, providing flexibility for different applications.

Related documents S18-2VPFF30-9M Specs

S18-2VPFF30-9M 170670.pdf
