LX24EQ-72013 Banner Safety Light Curtains

LX24EQ-72013 on Powermatic Associates
Banner

Part#:LX24EQ-72013

Manufacturer:Banner

Category:Safety Light Curtains

Product Lifecycle:Active

Product description

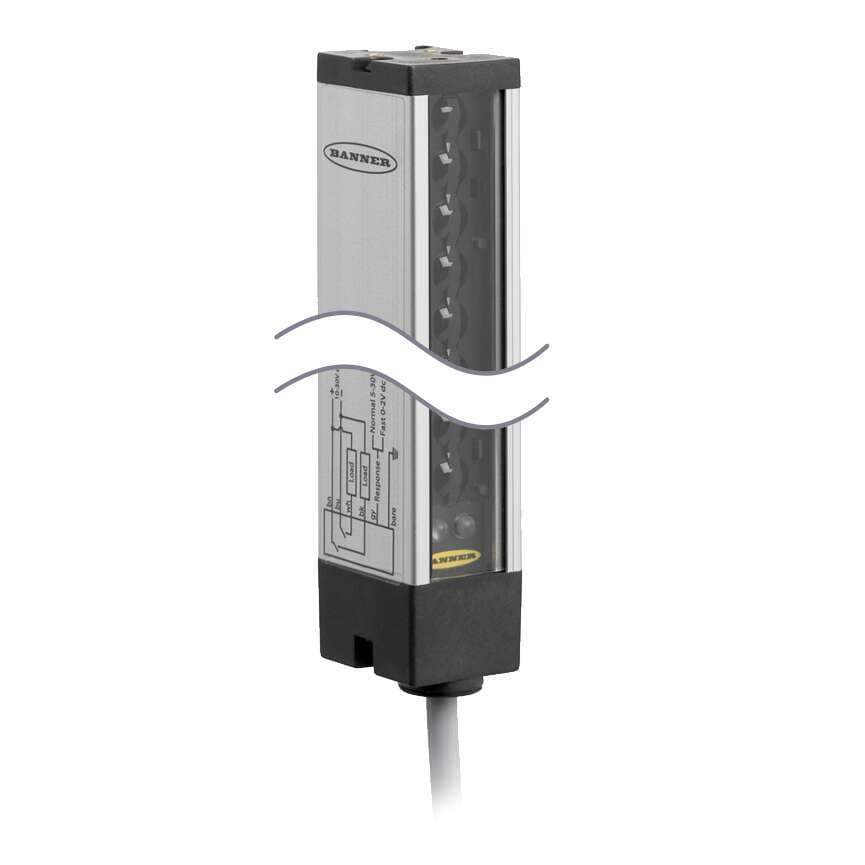

Banner Engineering LX24EQ-72013 is a sensor array designed for standard-range part-sensing with a light screen cross-hatched array, featuring an emitter alone. This unit has a 599mm array length, encased in an aluminium housing with an acrylic lens and die-cast zinc end caps. It is pre-wired with a 6" / 150mm pigtail terminated with a 5-pin Euro-style M12 connector. The sensor operates on a supply voltage of 10Vdc-30Vdc, with 12Vdc / 24Vdc nominal. It has a net height of 647 mm, a width of 26 mm, and a depth of 32 mm. Designed to function in ambient air temperatures ranging from -20 to +70°C, it offers a sensing distance of 30cm to 3m and can detect objects as small as 9.5mm. The device is rated with a degree of protection of IP65.

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
