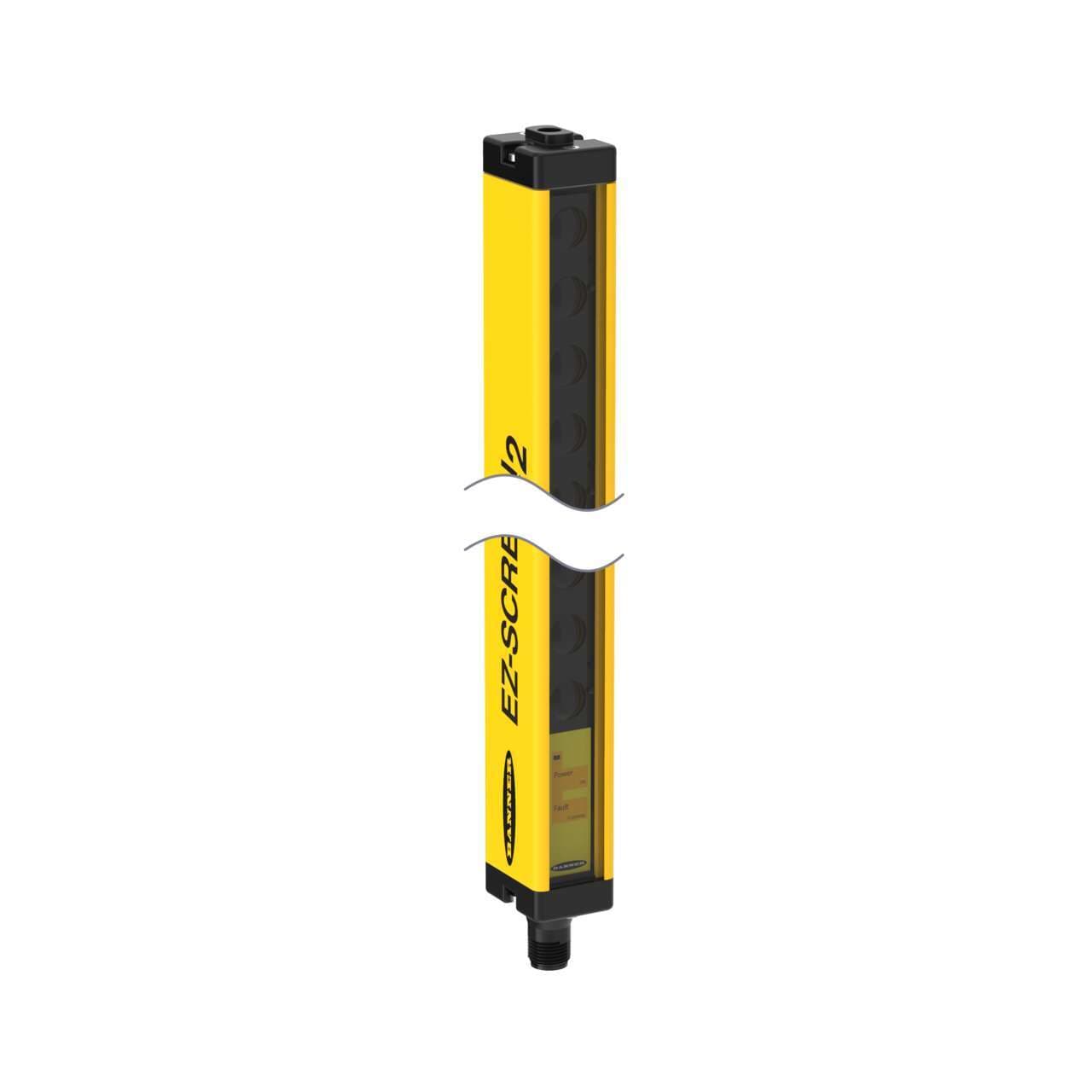

LS2TK30-750Q88-1RE25 Banner Safety Light Curtains

Banner Engineering LS2TK30-750Q88-1RE25 is a safety light curtain within the LS2TK series type 2 light screens category, designed to function as a safety light screen/curtain emitter and receiver pair. It features a trip output design and is housed in yellow aluminum with acrylic lens and die-cast zinc end caps. This model offers a protective height of 750mm and operates with a 30mm beam spacing/pitch. It comes pre-wired with a 25ft pigtail terminated with an 8-pin Euro-style M12 connector. The supply voltage required is 24Vdc. The dimensions include a net height of 815mm, a net width of 26mm, and a net depth of 32mm. It operates within an ambient air temperature range of 0 to +55°C and offers a degree of protection rated at IP65. The sensing distance spans from 20cm to 15m, and it features 2 x digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs) with a response time of 17ms / 0.017s. The resolution is set at 30mm for hand detection.
