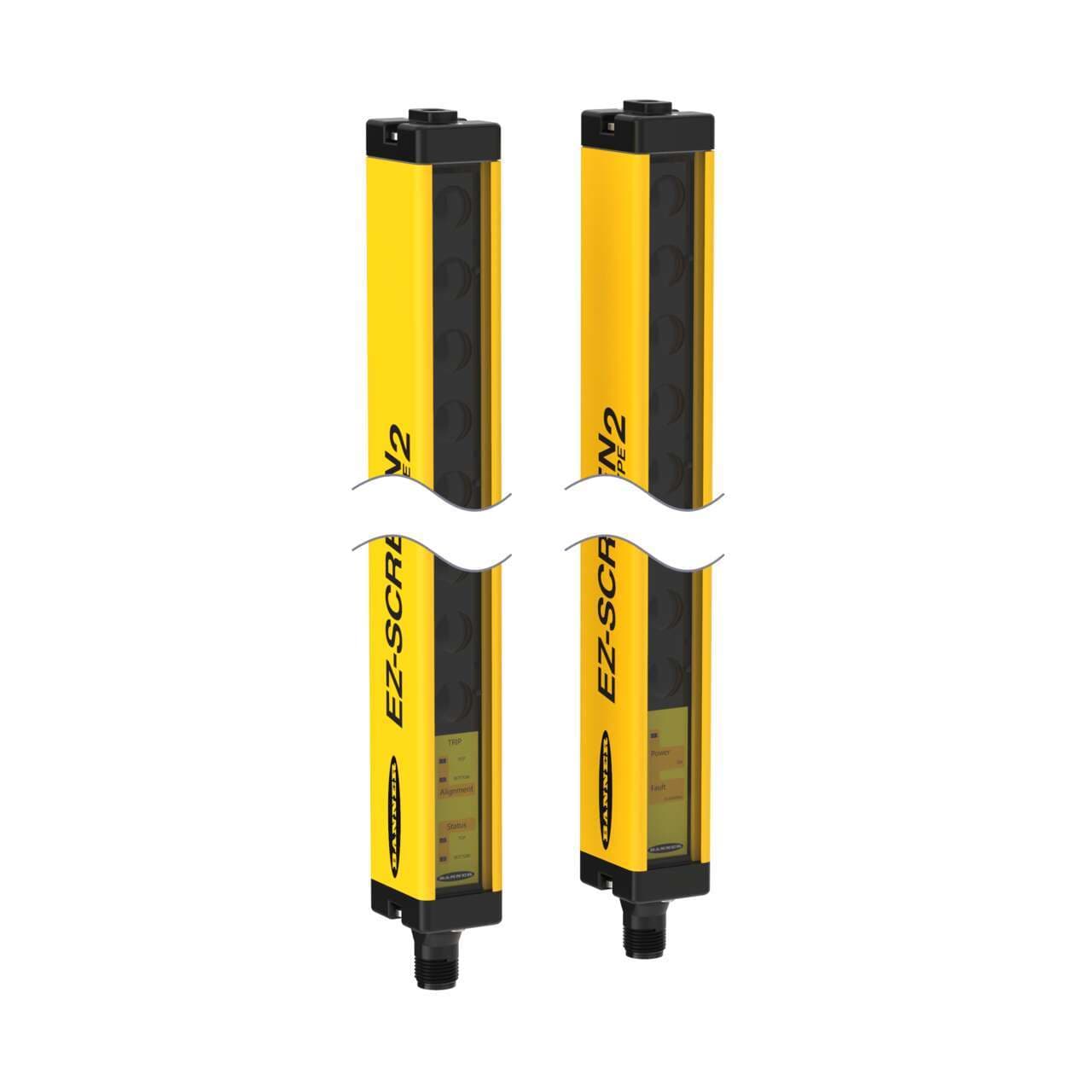

LS2TK30-450Q88-2RE15 Banner Safety Light Curtains

Banner Engineering LS2TK30-450Q88-2RE15 is a safety light curtain within the LS2TK series type 2 light screens, designed for hand detection with a resolution of 30mm. This unit features a protective height of 450mm and is housed in yellow aluminium with acrylic lens and die-cast zinc end caps. It operates with a 30mm beam spacing/pitch and is pre-wired with a 15ft pigtail that terminates with an 8-pin Euro-style M12 connector. The supply voltage required is 24Vdc. The dimensions include a net height of 515mm, width of 26mm, and depth of 32mm. It can function within an ambient air temperature range of 0 to +55°C. The LS2TK30-450Q88-2RE15 offers a sensing distance from 20cm up to 15m and includes 2 digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs) with a response time of 14ms. This part is rated with an IP65 degree of protection.
