LS2TK30-750Q88-1RE15 Banner Safety Light Curtains

LS2TK30-750Q88-1RE15 on Powermatic Associates
Banner
  • LS2TK30-750Q88-1RE15
  • LS2TK30-750Q88-1RE15

Part#:LS2TK30-750Q88-1RE15

Alt. Part#:81701

Manufacturer:Banner

Category:Safety Light Curtains

Product Lifecycle:Active

Product description

LS2TK30-750Q88-1RE15 EZS TYPE2 KIT 30 mm x 750 mm

Product Details

  • Weight
    3468.980898 g
  • Country Of Origin
    CN

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LS2TK30-750Q88-1RE15 on Powermatic Associates is $2,253.00. Order now.

About the product

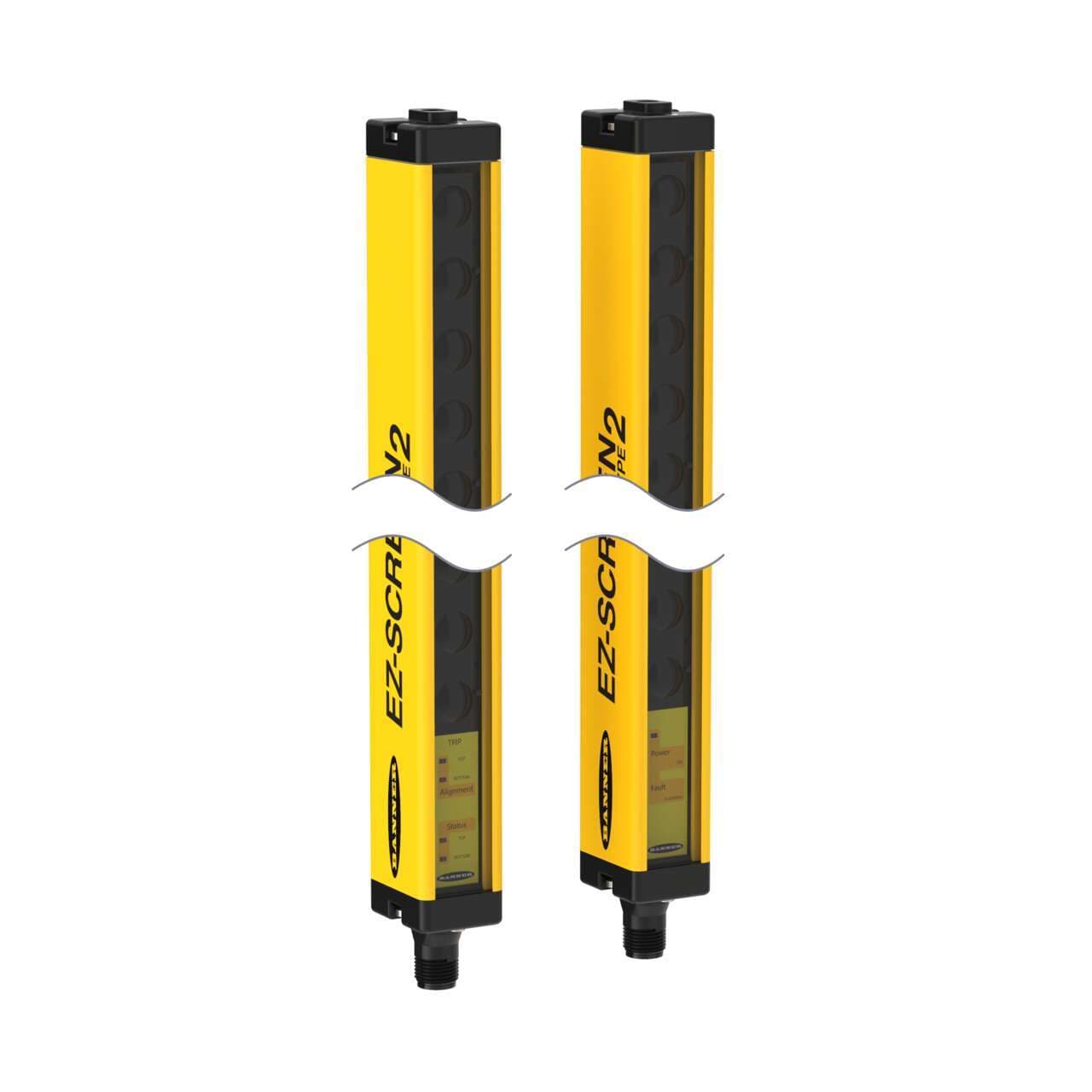

Banner Engineering LS2TK30-750Q88-1RE15 is a safety light curtain within the LS2TK series type 2 light screens, designed for hand detection with a resolution of 30mm. This unit features a protective height of 750mm and is housed in yellow aluminium with acrylic lens and die-cast zinc end caps. It operates with a 30mm beam spacing/pitch and is pre-wired with a 15ft pigtail that terminates with an 8-pin Euro-style M12 connector. The supply voltage required is 24Vdc. The dimensions include a net height of 815mm, width of 26mm, and depth of 32mm. It can function within an ambient air temperature range of 0 to +55°C. The LS2TK30-750Q88-1RE15 offers a sensing distance from 20cm up to 15m and includes 2 digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs) with a response time of 17ms. It is rated with a degree of protection of IP65.

LS2TK30-750Q88-1RE15 Related Documents

122452.pdf
