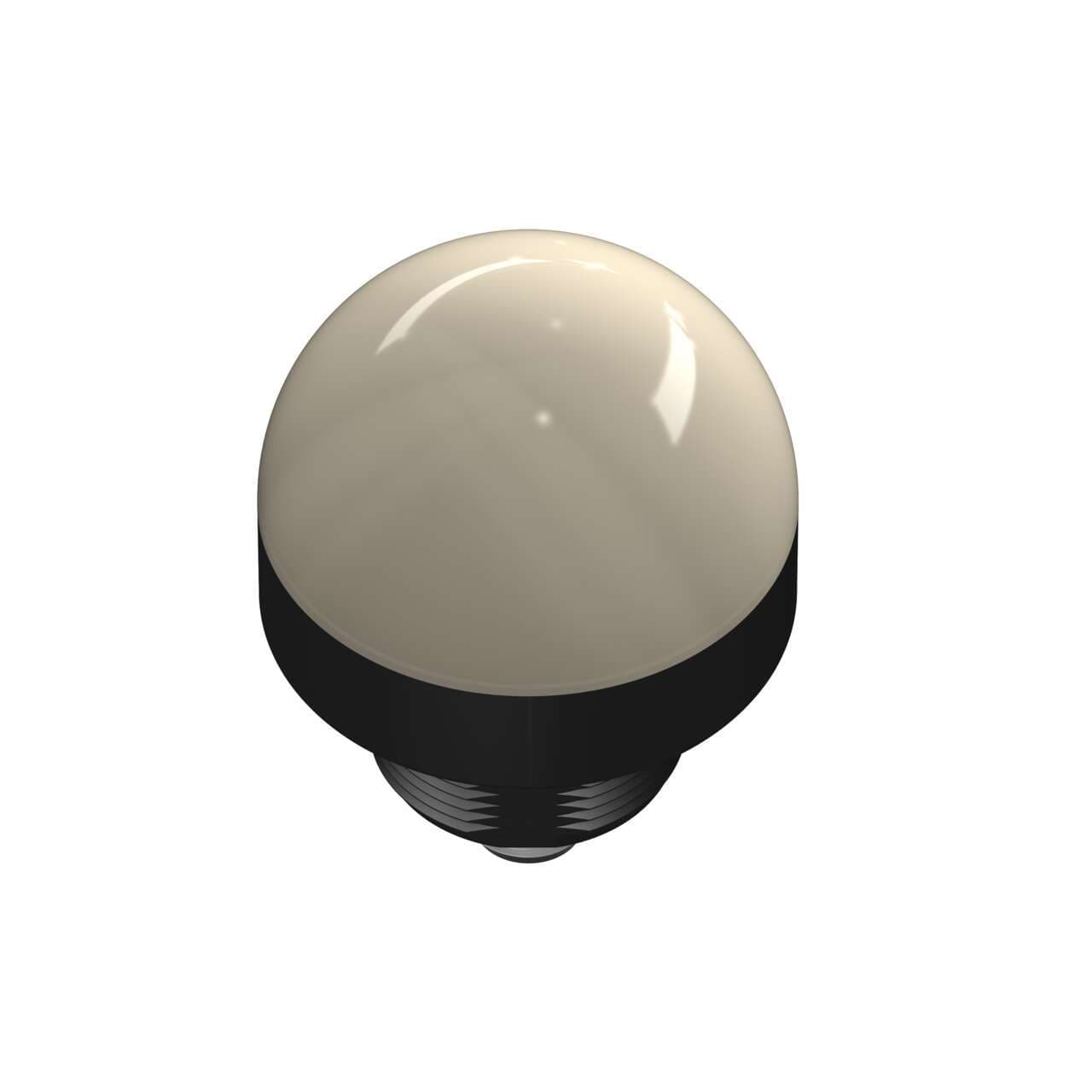

K50LRGYPQ Banner Pick-to-Light Sensors
Part#:K50LRGYPQ
Manufacturer:Banner
Alt. Part#:94480
Product Lifecycle:Active
Get a quick Quote!
K50 Series EZ-LIGHT: 3-Color General Purpose Indicator; Voltage: 18-30 V dc; Housing: Polycarbonate; IP67; Input: PNP; Colors: Red Green Yellow; 4-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Pick-to-Light Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the K50LRGYPQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight 136.0776 g
- Country Of Origin MX
- Pro-Editor Compatible (Discrete) No
- Wireless No
- Modbus RTU No
- Feature: Hazardous Area No
- IO Link No
- Feature: Chemical Resistant No
- Feature: Quick Disconnect Yes
- Multi-Color Device Single Color On
- Feature: Audible No
- Min Op. Temperature (°C) -40
- Primary Window Material Polycarbonate Diffused
- Primary Housing Color Black
- Environmental Rating IP67; IP69
- Feature: Washdown Rated Yes
- Max Op. Temperature (°C) 50
- Max Input Response Time (ms) 1
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 69.0
- Input Type PNP
- Supply Voltage 18-30 V dc
- Number of Input Pins/Conductors 4
- Max Current Color (mA) 40
- Color Option 3 Yellow
- Quick Disconnect Type M12 (Euro)
- Color Option 2 Green
- Connection Integral QD
- Animation Option 1 Solid On
- Color Technology Standard LED
- Color Option 1 Red
- Indication Yes
- Power Source DC
- Primary Housing Material Polycarbonate
- Mounting Thread M30 x 1.5
- Housing Style Base Mount - Dome Window
- Number of Colors / Segments 3
- Power DC
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Product Size (mm) 50
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
K50LRGYPQ Description
K50 Series EZ-LIGHT: 3-Color General Purpose Indicator, Voltage: 18-30 V dc; Housing: Polycarbonate; IP67, Input: PNP; Colors: Red Green Yellow, Euro 4-pin Integral Connector
Related documents K50LRGYPQ Specs
