K50LBRYP Banner Pick-to-Light Sensors
Part#:K50LBRYP
Alt. Part#:801135
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description
K50 Series EZ-LIGHT: 3-Color General Purpose Indicator; Voltage: 18-30 V dc; Housing: Polycarbonate; IP67; Input: PNP; Colors: Blue Red Yellow; 2 m (6.5 ft) Integral Cable
Product Details
- Weight 226.796 g
- Country Of Origin MX
- Power DC
- Color Technology Standard LED
- Max Op. Temperature (°C) 50
- Pro-Editor Compatible (Discrete) No
- Number of Colors / Segments 3
- Number of Input Pins/Conductors 4
- Feature: Washdown Rated Yes
- Modbus RTU No
- Product Size (mm) 50
- Max Current Color (mA) 40
- Primary Window Material Polycarbonate Diffused
- Wireless No
- Power Source DC
- Color Option 1 Blue
- Max Input Response Time (ms) 1
- Feature: Hazardous Area No
- Primary Housing Material Polycarbonate
- Connection Cable
- Input Type PNP
- IO Link No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Supply Voltage 18-30 V dc
- Min Op. Temperature (°C) -40
- Multi-Color Device Single Color On
- Indication Yes
- Color Option 3 Yellow
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 58.0
- Feature: Audible No
- Housing Style Base Mount - Dome Window
- Color Option 2 Red
- Environmental Rating IP67; IP69
- Feature: Chemical Resistant No
- Mounting Thread M30 x 1.5
- Animation Option 1 Solid On
- Primary Housing Color Black
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K50LBRYP on Powermatic Associates is $111.00. Order now.
About the product

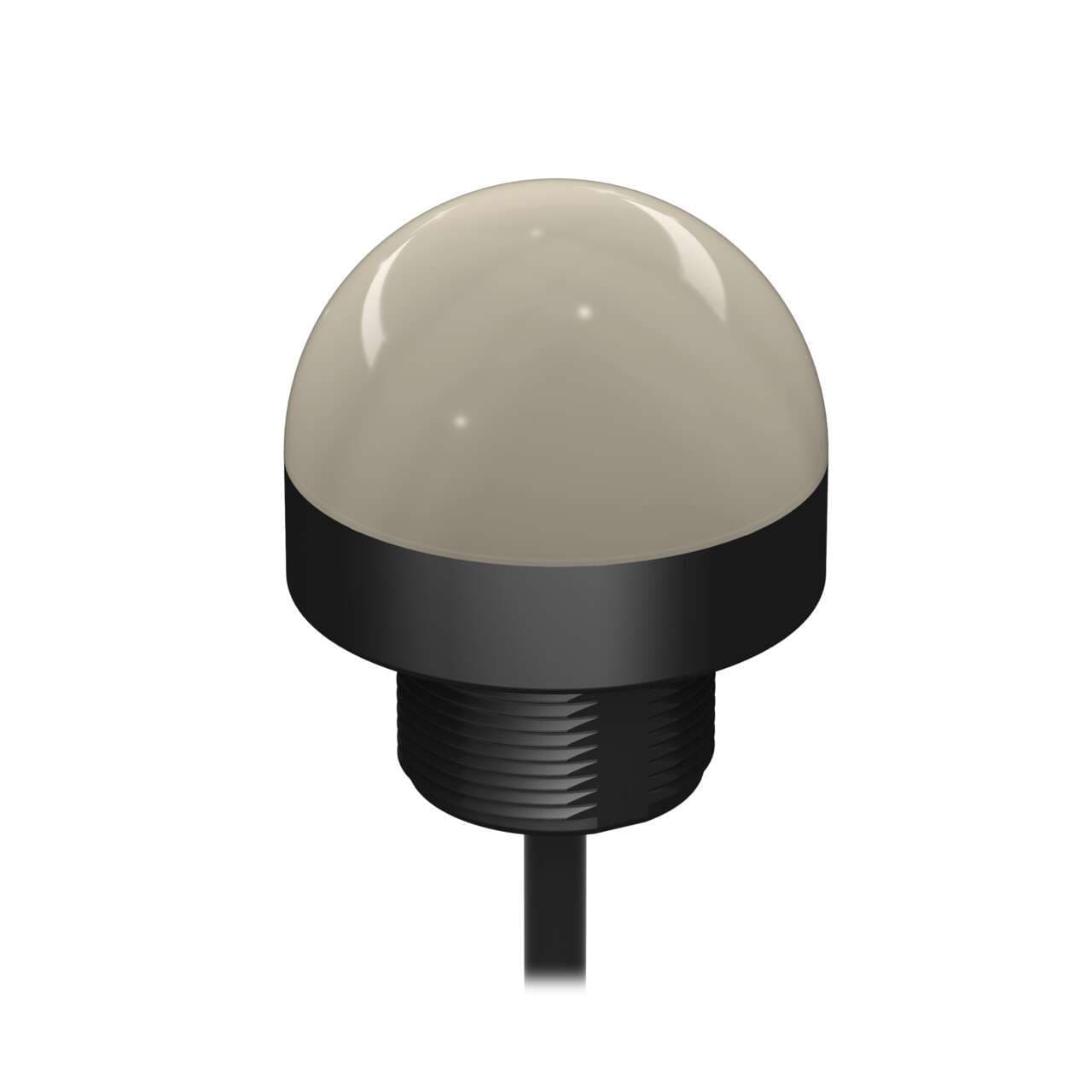

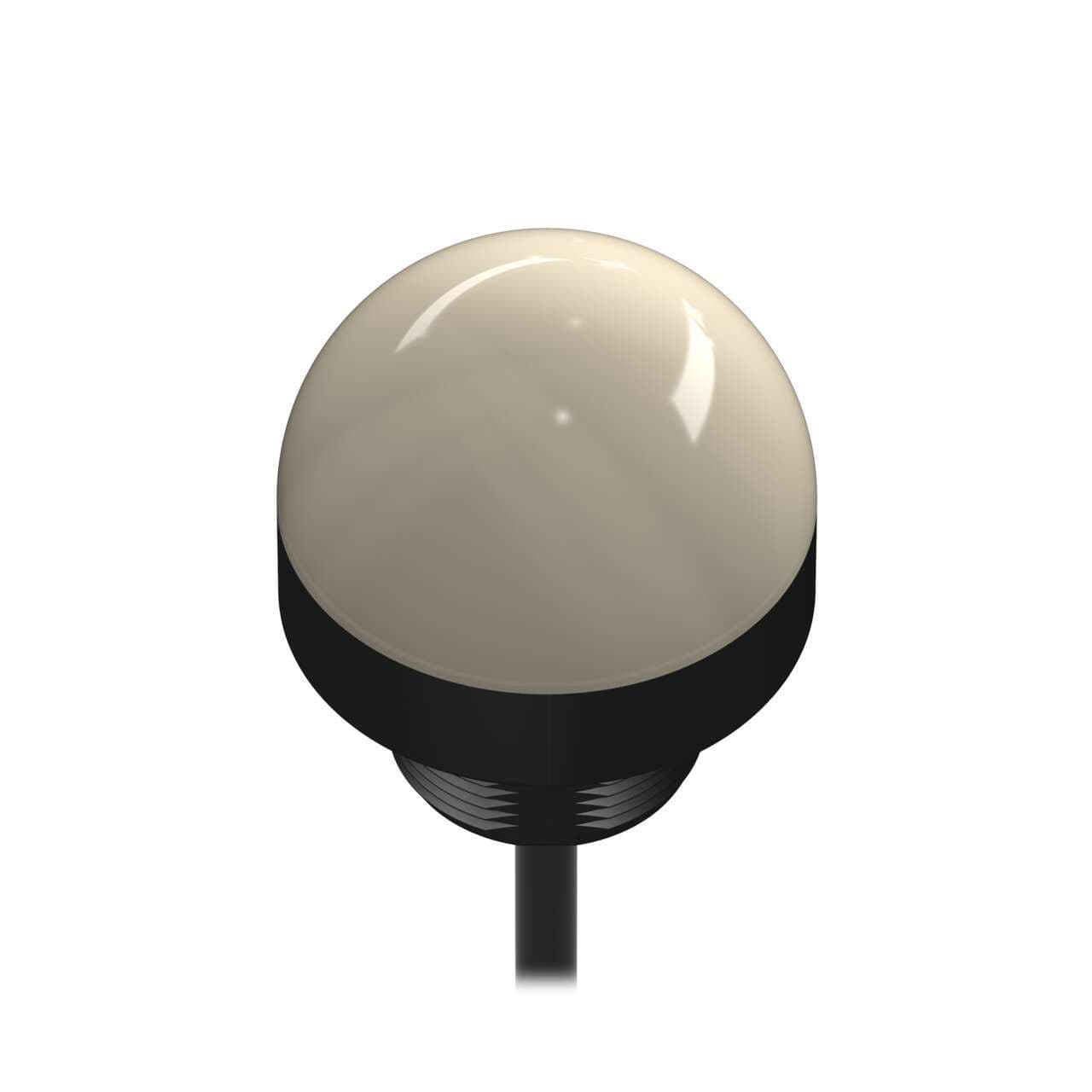

Banner Engineering K50LBRYP is a pilot light from the EZ-LIGHT series designed with a 3-color B/R/Y (Blue/Red/Yellow) color pattern LED illumination housed in a black casing. This part features a dome window shape with both the window and base made of polycarbonate (PC), ensuring durability. It is equipped with a 4-pin M12 Euro-style quick disconnect (QD) connector for easy installation. The K50LBRYP operates on a supply voltage range of 18Vdc to 30Vdc, with a nominal voltage of 24Vdc, and can be mounted on a surface, base, or pole with a flush 30mm hole using an M30 thread. The dome has a diameter of 50mm (2 inches). It is designed to operate in ambient air temperatures ranging from -40°C to +50°C and offers a high degree of protection with IP67 and IP69K ratings. The current consumption is 40mA, and it includes 3 digital inputs (18-30Vdc; PNP) for color control.
