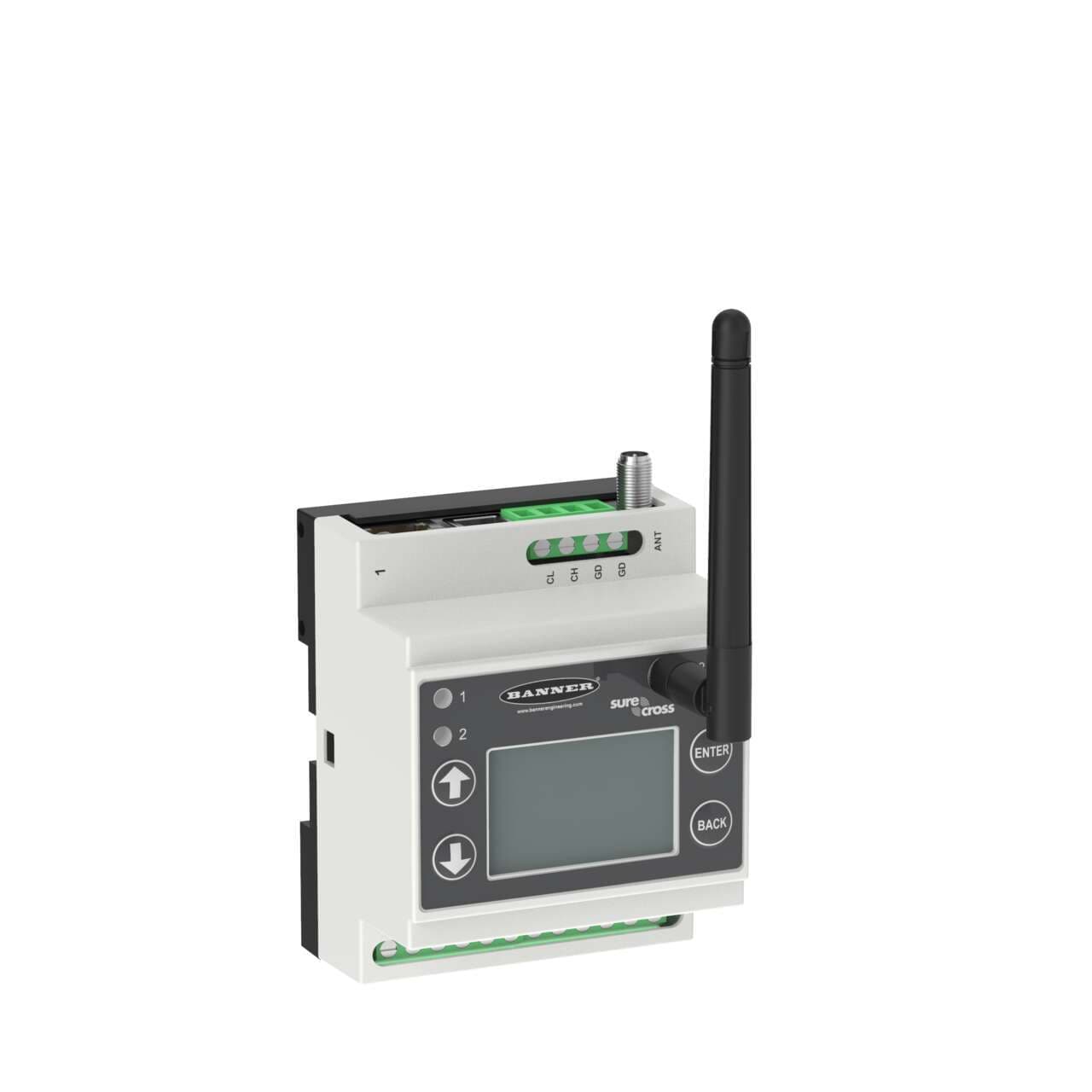

DXM700-B1R5 Banner I/O Modules

DXM700-B1R5 on Powermatic Associates
Banner
  • DXM700-B1R5
  • DXM700-B1R5

Part#:DXM700-B1R5

Alt. Part#:806250

Manufacturer:Banner

Category:I/O Modules

Product Lifecycle:Active

Product description

DXM700 Controller; MultiHop Radio 900 MHz Radio 100 mW; Outputs: 4 PNP; M7 Processor, 16MB Memory, LCD Display; RS485, Ethernet, USB

Product Details

  • Weight
    317.5144 g
  • Country Of Origin
    US
  • RS-232
    No
  • RS-485
    Yes
  • 1-wire Serial Interface
    No
  • Wireless Radio Frequency
    900 MHz
  • Wireless
    Yes
  • Modbus/TCP
    Yes
  • PROFINET
    Yes
  • Modbus RTU
    Yes
  • EtherNet/IP
    Yes
  • Application: Pick-to-Light
    Yes
  • Feature: Hazardous Area
    No
  • Application: Indicator Light
    Yes
  • Dimension Length (mm)
    70
  • On-Board Memory (MB)
    16
  • Star Topology
    Yes
  • Point-to-Point Topology
    Yes
  • Processing Speed (MHz)
    300
  • Tree Topology
    Yes
  • Point-to-Multipoint Topology
    Yes
  • Relative Humidity
    95%
  • Min Temp Operating Conditions
    -20
  • Environmental Rating (IP)
    IP20
  • Max Temp Operating Conditions
    60
  • LCD Display
    Yes
  • Discrete Outputs
    Yes
  • Power Supply
    12-30 V dc
  • Output Details
    4 PNP
  • Input/Output
    Analog & Discrete
  • Device Type
    Wireless Controller with MultiHop Radio
  • Housing Style
    External Terminals
  • Power
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of DXM700-B1R5 on Powermatic Associates is $774.00. Order now.

About the product

Banner Engineering DXM700-B1R5 is a remote I/O controller designed for DIN rail mounting with a polycarbonate housing. It operates within an ambient air temperature range of -20 to +60°C and offers a degree of protection rated at IP20. The dimensions of this controller are H58.1mm x W70mm x D94.5mm. It features 4 digital outputs (12Vdc-30Vdc; PNP/NPN; 100mA) and utilizes a 900 MHz transmission frequency. As a Modbus I/O controller within the DXM700-B1 series, it incorporates a 300MHz processing speed for efficient data aggregation of sensor and wireless networks, employing FHSS (Frequency Hopping Spread Spectrum) technology and an M7 processor. Connection options include an RJ45 connector for Ethernet and an RP-SMA connector. The supply voltage requirement is 12-30Vdc (12Vdc-24Vdc nom.), and it supports RS-485 Modbus RTU, Modbus TCP, and Ethernet/IP communication protocols. Memory capacity is provided by 16MB of on-board memory and an 8GB SD card. Operating on the 900MHz ISM band with a 1W radio (HE5L MultiHop data radio; used for M-GAGE networks), it can achieve a maximum transmission distance of 9.6km at nominal emission power.
