DXM700-B1R4 Banner I/O Modules

DXM700-B1R4 on Powermatic Associates
Banner
  • DXM700-B1R4
  • DXM700-B1R4

Part#:DXM700-B1R4

Alt. Part#:806249

Manufacturer:Banner

Category:I/O Modules

Product Lifecycle:Active

Product description

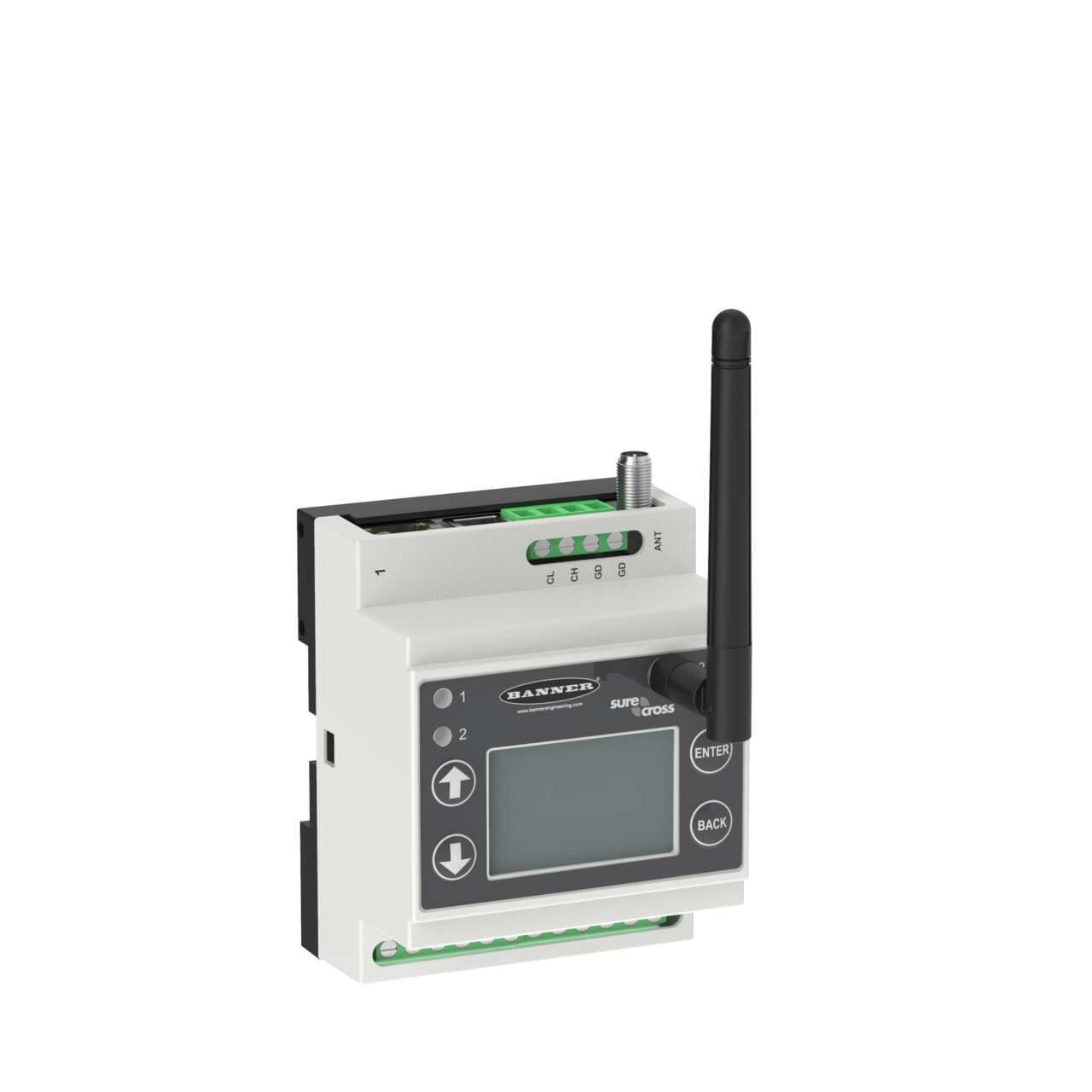

DXM700 Controller; MultiHop Radio 2.4 GHz 65 mW; Outputs: 4 PNP; M7 Processor, 16MB Memory, LCD Display; RS485, Ethernet, USB

Product Details

  • Weight
    317.5144 g
  • Country Of Origin
    US
  • Wireless Radio Frequency
    2.4 GHz
  • RS-485
    Yes
  • RS-232
    No
  • Wireless
    Yes
  • Modbus RTU
    Yes
  • Application: Indicator Light
    Yes
  • Feature: Hazardous Area
    No
  • Point-to-Point Topology
    Yes
  • PROFINET
    Yes
  • Modbus/TCP
    Yes
  • 1-wire Serial Interface
    No
  • Dimension Length (mm)
    70
  • Application: Pick-to-Light
    Yes
  • EtherNet/IP
    Yes
  • On-Board Memory (MB)
    16
  • Star Topology
    Yes
  • Tree Topology
    Yes
  • Relative Humidity
    95%
  • LCD Display
    Yes
  • Point-to-Multipoint Topology
    Yes
  • Processing Speed (MHz)
    300
  • Min Temp Operating Conditions
    -20
  • Input/Output
    Analog & Discrete
  • Max Temp Operating Conditions
    60
  • Environmental Rating (IP)
    IP20
  • Power Supply
    12-30 V dc
  • Discrete Outputs
    Yes
  • Output Details
    4 PNP
  • Housing Style
    External Terminals
  • Device Type
    Wireless Controller with MultiHop Radio
  • Power
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of DXM700-B1R4 on Powermatic Associates is $774.00. Order now.

About the product

Banner Engineering DXM700-B1R4 is a remote I/O controller designed for DIN rail mounting with a polycarbonate housing. It operates within an ambient air temperature range of -20 to +60°C and offers a degree of protection rated at IP20. The dimensions of this controller are H58.1mm x W70mm x D94.5mm. It features 4 digital outputs (12Vdc-30Vdc; PNP/NPN; 100mA) and operates at a transmission frequency of 2400 MHz. As a Modbus I/O controller within the DXM700-B1 series, it incorporates a 300MHz processing speed for efficient data aggregation of sensor and wireless networks, utilizing FHSS (Frequency Hopping Spread Spectrum) technology and an M7 processor. Connection options include an RJ45 connector for Ethernet and an RP-SMA connector. The supply voltage requirement is 12-30Vdc (12Vdc-24Vdc nom.), and it supports RS-485 Modbus RTU, Modbus TCP, and Ethernet/IP communication protocols. Memory capacity is provided by 16MB of on-board memory and an 8GB SD card. It operates on the 2.4GHz ISM band with a 65mW radio (HE5 MultiHop data radio; worldwide), capable of a maximum transmission distance of 3.2km at nominal emission power.

DXM700-B1R4 Related Documents

207893.pdf
