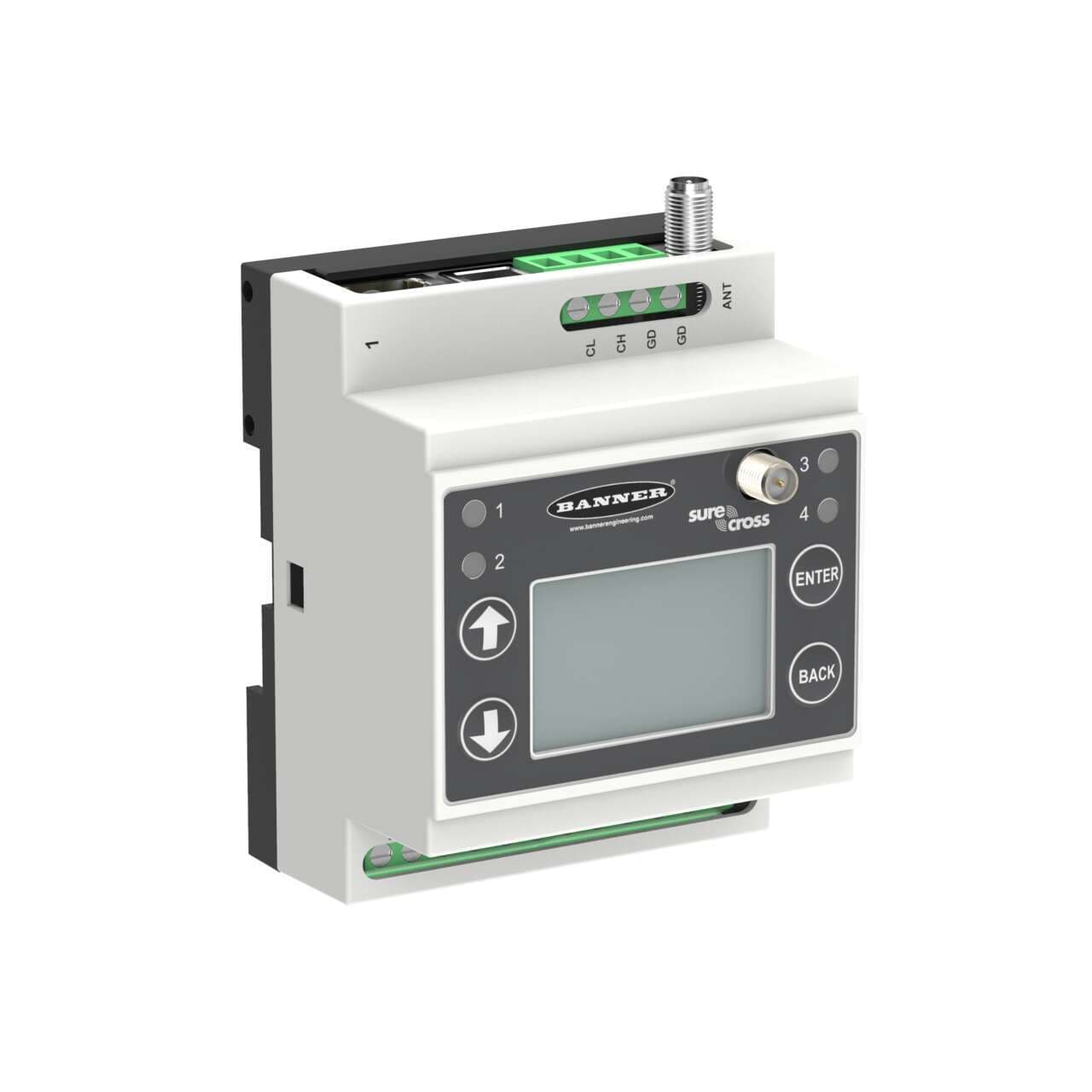

DXM700-B1R3 Banner I/O Modules

DXM700-B1R3 on Powermatic Associates
Banner
  • DXM700-B1R3
  • DXM700-B1R3

Part#:DXM700-B1R3

Alt. Part#:806248

Manufacturer:Banner

Category:I/O Modules

Product Lifecycle:Active

Product description

DXM700 Controller; DX80 Performance Gateway 2.4 GHz 65 mW; Outputs: 4 PNP; M7 Processor, 16MB Memory, LCD Display; RS485, Ethernet, USB

Product Details

  • Weight
    34.926584 g
  • Country Of Origin
    US
  • RS-485
    Yes
  • Wireless
    Yes
  • 1-wire Serial Interface
    No
  • Wireless Radio Frequency
    2.4 GHz
  • Modbus/TCP
    Yes
  • RS-232
    No
  • PROFINET
    Yes
  • Modbus RTU
    Yes
  • EtherNet/IP
    Yes
  • On-Board Memory (MB)
    16
  • Feature: Hazardous Area
    No
  • Application: Indicator Light
    Yes
  • Application: Pick-to-Light
    Yes
  • Processing Speed (MHz)
    300
  • Tree Topology
    No
  • Max Temp Operating Conditions
    60
  • Dimension Length (mm)
    70
  • Star Topology
    Yes
  • Point-to-Point Topology
    Yes
  • Point-to-Multipoint Topology
    Yes
  • Min Temp Operating Conditions
    -20
  • Relative Humidity
    95%
  • Input/Output
    Analog & Discrete
  • Power Supply
    12-30 V dc
  • LCD Display
    Yes
  • Discrete Outputs
    Yes
  • Output Details
    4 PNP
  • Environmental Rating (IP)
    IP20
  • Device Type
    Wireless Controller with Performance Gateway
  • Housing Style
    External Terminals
  • Power
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of DXM700-B1R3 on Powermatic Associates is $774.00. Order now.

About the product

Banner Engineering DXM700-B1R3 is a remote I/O controller designed for DIN rail mounting and features a polycarbonate housing. It operates within an ambient air temperature range of -20 to +60°C and offers a degree of protection rated at IP20. The dimensions of this part are H58.1mm x W70mm x D94.5mm. It includes 4 digital outputs (12Vdc-30Vdc; PNP/NPN; 100mA) and operates at a transmission frequency of 2400 MHz. As a Modbus I/O controller within the DXM700-B1 series, it boasts a 300MHz processing speed for data aggregation of sensors and wireless networks, utilizing FHSS (Frequency Hopping Spread Spectrum) technology and an M7 processor. Connection types include an RJ45 connector for Ethernet and an RP-SMA connector. The supply voltage ranges from 12-30Vdc (12Vdc-24Vdc nom.), and it supports RS-485 Modbus RTU, Modbus TCP, and Ethernet/IP communication protocols. Memory capacity is 16MB for on-board memory and 8GB for an SD card. It operates on a 2.4GHz ISM band with a 65mW radio (PE5 performance radio; worldwide) and can achieve a maximum transmission distance of 3.2km at nominal emission power.

DXM700-B1R3 Related Documents

207893.pdf
