DX80N9Q45VT Banner Proximity Sensors

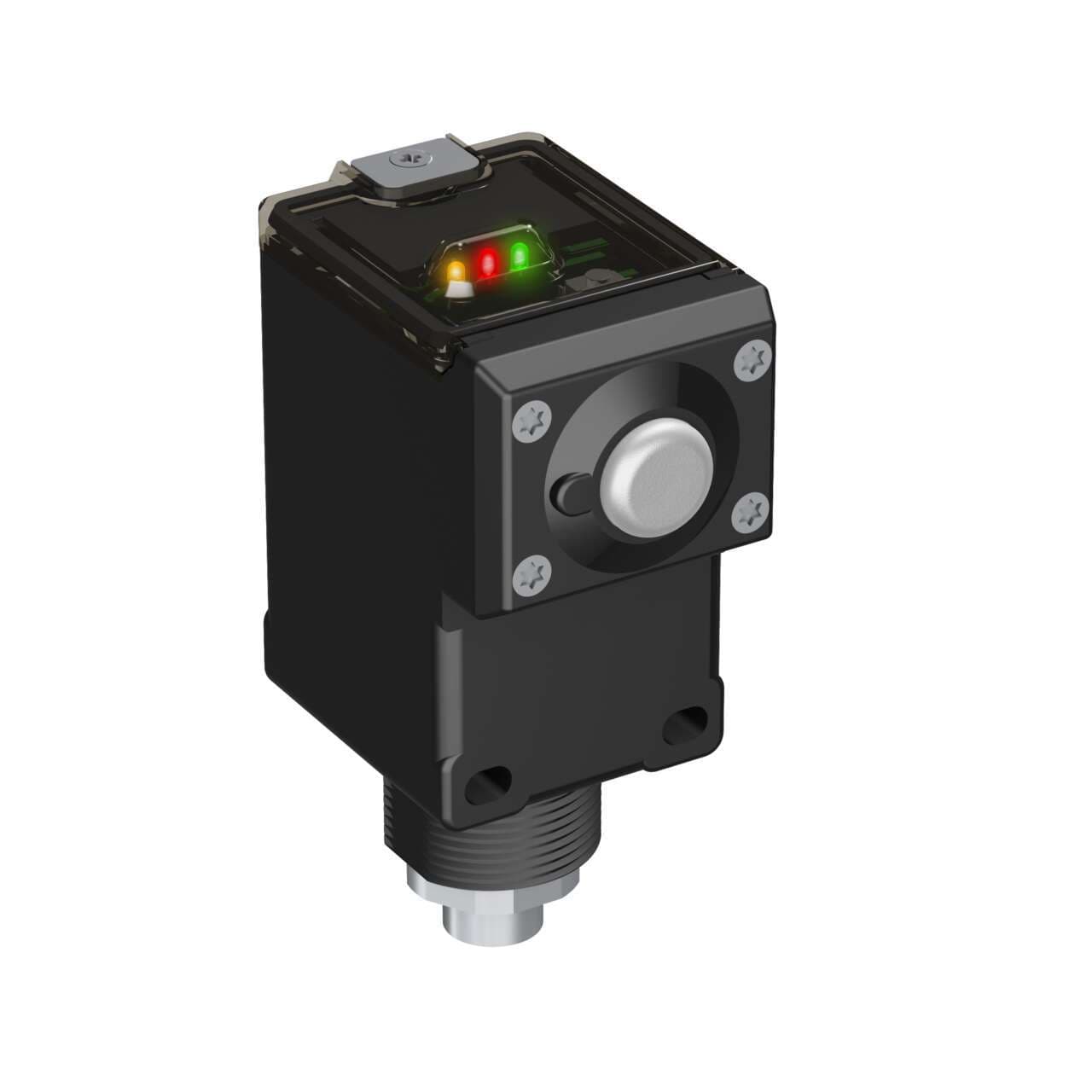

Banner DX80N9Q45VT Wireless Q45 Vibration and Temperature Node; With 1-Wire Serial Interface 900 MHz 1 W; Vibration and Temperature Sensor Sold Separately
Banner

Part#:DX80N9Q45VT

Manufacturer:Banner

Alt. Part#:97146

Product Lifecycle:Active

In-stock parts: 5

Nov 16, 2024

Wireless Q45 Vibration and Temperature Node; With 1-Wire Serial Interface 900 MHz 1 W; Vibration and Temperature Sensor Sold Separately

About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the DX80N9Q45VT Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    226.796 g
  • Country Of Origin
    US
  • 1-wire Serial Interface
    Yes
  • RS-485
    No
  • Wireless Radio Frequency
    900 MHz
  • Wireless
    Yes
  • RS-232
    No
  • PROFINET
    No
  • Modbus/TCP
    No
  • Modbus RTU
    No
  • EtherNet/IP
    No
  • Application: Indicator Light
    Yes
  • Application: Vibration Sensor Input
    Yes
  • Feature: Hazardous Area
    No
  • Application: Temperature Input
    Yes
  • Tree Topology
    No
  • Point-to-Point Topology
    Yes
  • Star Topology
    Yes
  • Point-to-Multipoint Topology
    Yes
  • Relative Humidity
    90% at 50° C
  • Min Operating Temperature ( °C)
    -40
  • Min Temp Operating Conditions
    -40
  • Max Temp Operating Conditions
    70
  • Ships With Battery
    Yes
  • Max Operating Temperature ( °C)
    70
  • Power Supply
    2 AA Batteries
  • Device Type
    Node
  • Output Details
    Light
  • Environmental Rating (IP)
    IP67
  • Input/Output
    Serial
  • Housing Style
    Integrated Battery
  • Discrete Outputs
    Yes
  • Power
    Battery
  • Environmental Rating (NEMA)
    NEMA 6P

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

DX80N9Q45VT Description

Banner Engineering DX80N9Q45VT is a sensor designed for temperature measurement with a mounting mode of M30 threaded mount. It features a polyester housing, polycarbonate cover, acrylic lens, and stainless steel hardware, ensuring a degree of protection rated at IP67 and NEMA 6. This rectangular-shaped sensor is part of the Q45VT series, specifically designed for vibration and temperature control. It includes 1 x digital output (DIP switch) and operates within a -40 to +70°C measurement range. The DX80N9Q45VT is pre-equipped with a 5-pin Euro-style QD M12 connector for connectivity and uses the Modbus communication protocol. Its functions include a 900MHz ISM band 1W wireless battery-powered node for vibration and temperature sensing, with a transmission frequency of 900MHz.

Related documents DX80N9Q45VT Specs

DX80N9Q45VT 190931.pdf

This item can ship within 24h!

Manufacturer warranty

$399.00

Stock:

5

Select Qty:

$399.00

$399.00 each
